Installation Procedure

  1. Install the auxiliary HVAC duct to the rear console trim cover.
    NOTE: Refer to FLEX DECOUPLER NOTICE .

    Tighten

    Tighten the fasteners to 1.6 N.m (14 lb in).

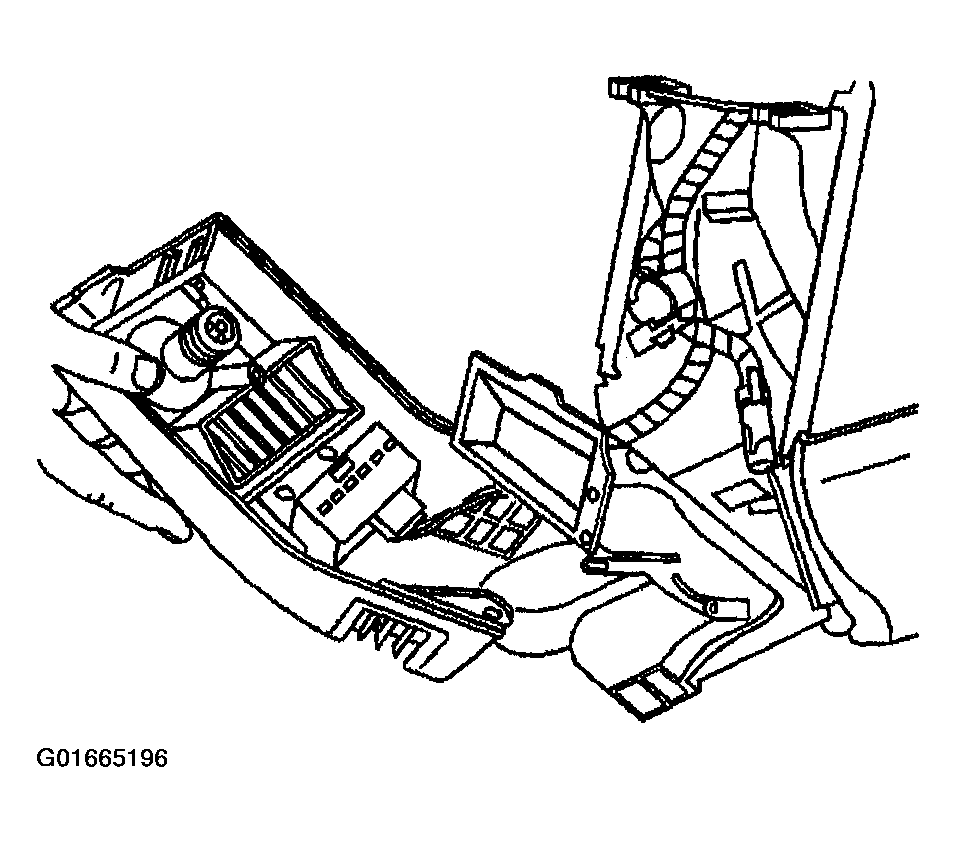

    Fig 1: View of HVAC Duct
    G01665196Courtesy of GENERAL MOTORS CORP.
  2. Partially install the floor console rear trim cover (1) to the floor console.
  3. Using needle nose pliers, connect the rear HVAC blower control electrical connector (4), located behind the HVAC duct.
  4. Connect the cigar lighter electrical connector (1).
  5. Install the rear HVAC control lamp (2).

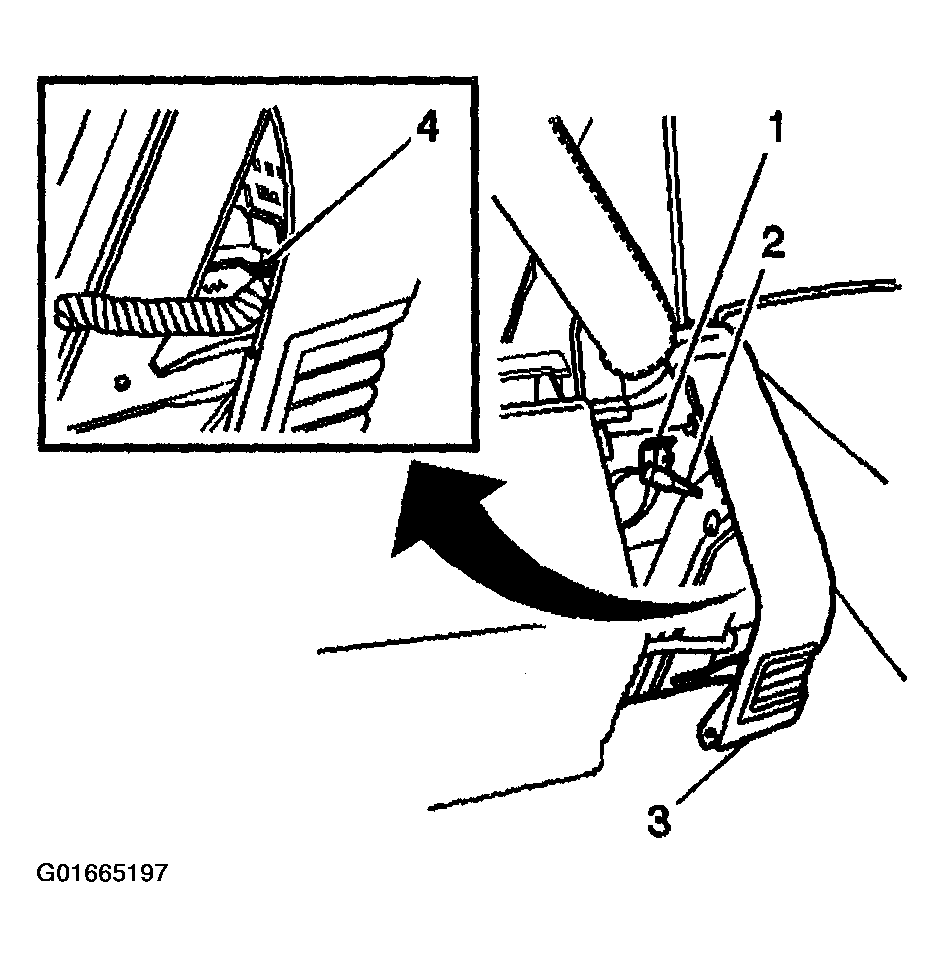

    Fig 2: Identifying Floor Console Rear Trim Cover, HVAC Blower Control Electrical Connector, Cigar Lighter Electrical Connector, & HVAC Control Lamp
    G01665197Courtesy of GENERAL MOTORS CORP.
  6. Install the 2 console to floor bolts (1).

    Tighten

    Tighten the fasteners to 24 N.m (18 lb ft).

  7. Install the 2 upper screws (2) from the console rear trim cover.

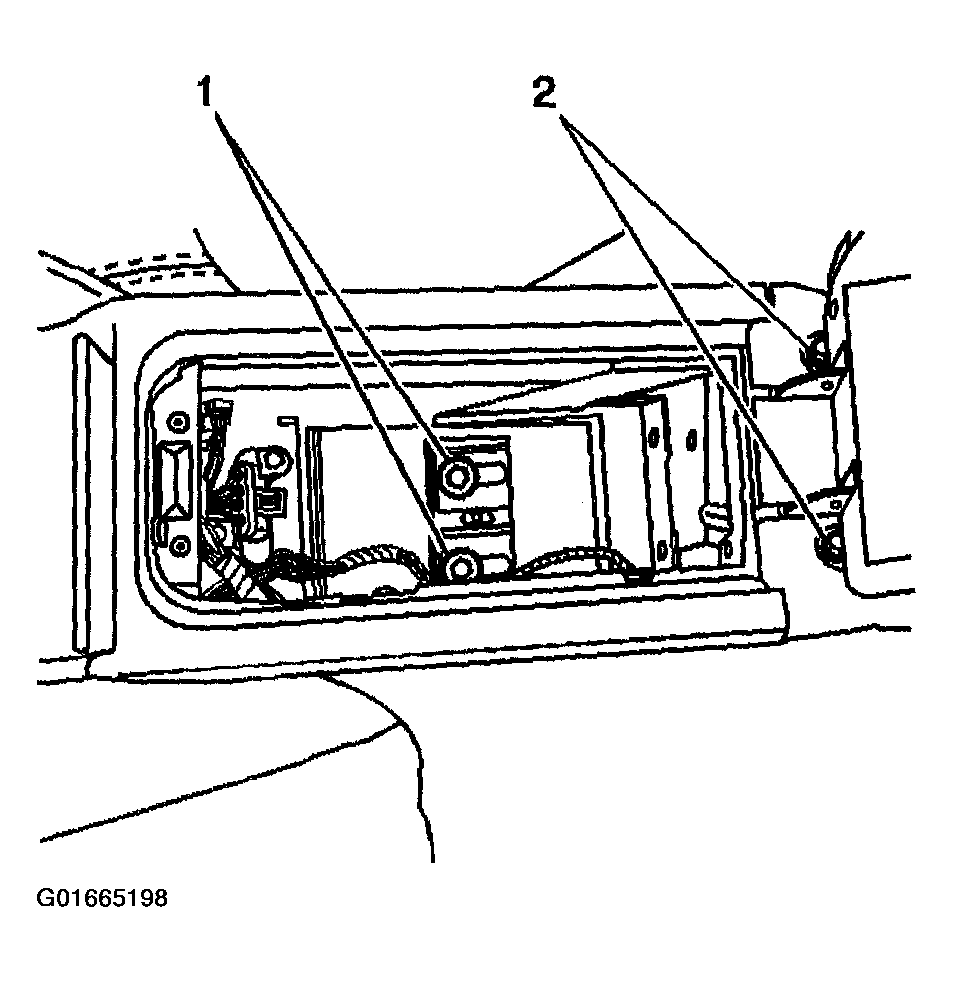

    Fig 3: Identifying Floor Bolts & Upper Screws
    G01665198Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the fasteners to 1.6 N.m (14 lb in).

  8. Install the 2 lower console trim cover screws (1).

    Tighten

    Tighten the fasteners to 1.6 N.m (14 lb in).

  9. Reposition the side trim panel carpeting to cover the lower console trim cover screws.
  10. Install the console storage bin. Refer to Console Storage Bin Replacement .
  11. Reposition the front seats.
    Fig 4: Identifying Lower Console Trim Cover Screws
    G01665199Courtesy of GENERAL MOTORS CORP.
