Removal Procedure

  1. Block the wheels on the vehicle.
  2. Place the shifter into the NEUTRAL position.
  3. Remove the shifter handle retaining clip.
  4. Remove the shifter handle.

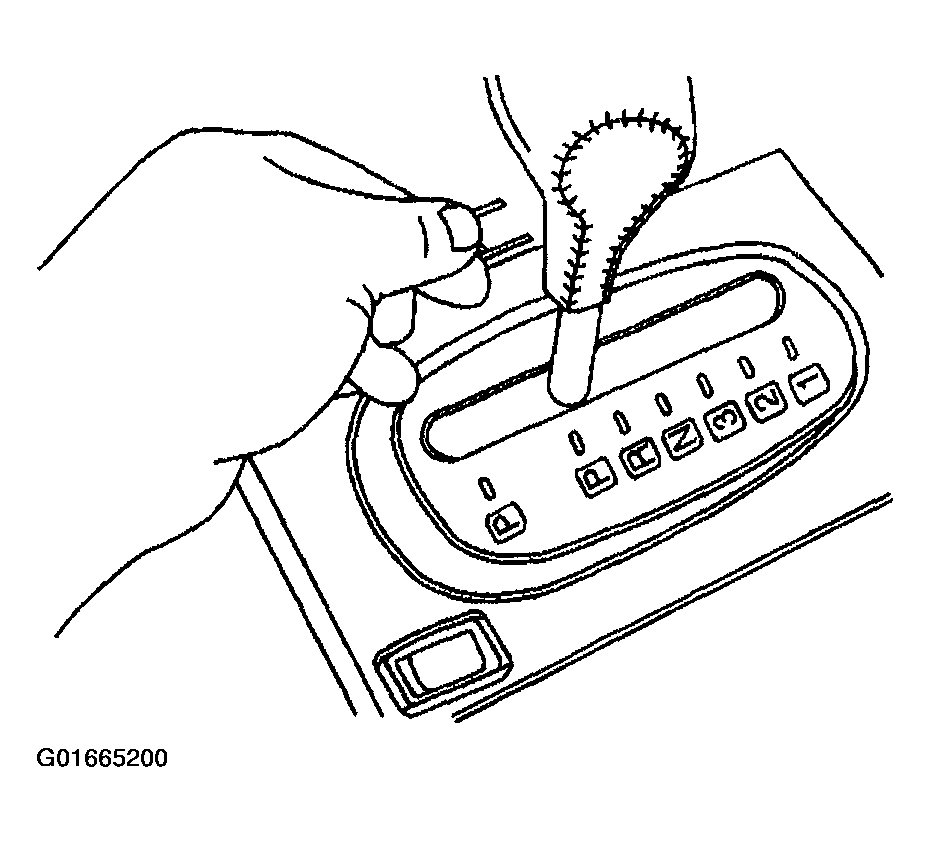

    Fig 1: View of Shifter Handle
    G01665200Courtesy of GENERAL MOTORS CORP.
  5. Using a flat bladed tool carefully disengage the console trim plate retaining clips from the console.
  6. Partially remove the trim plate (2).

    Disconnect the electrical connectors.

  7. Remove the trim plate.

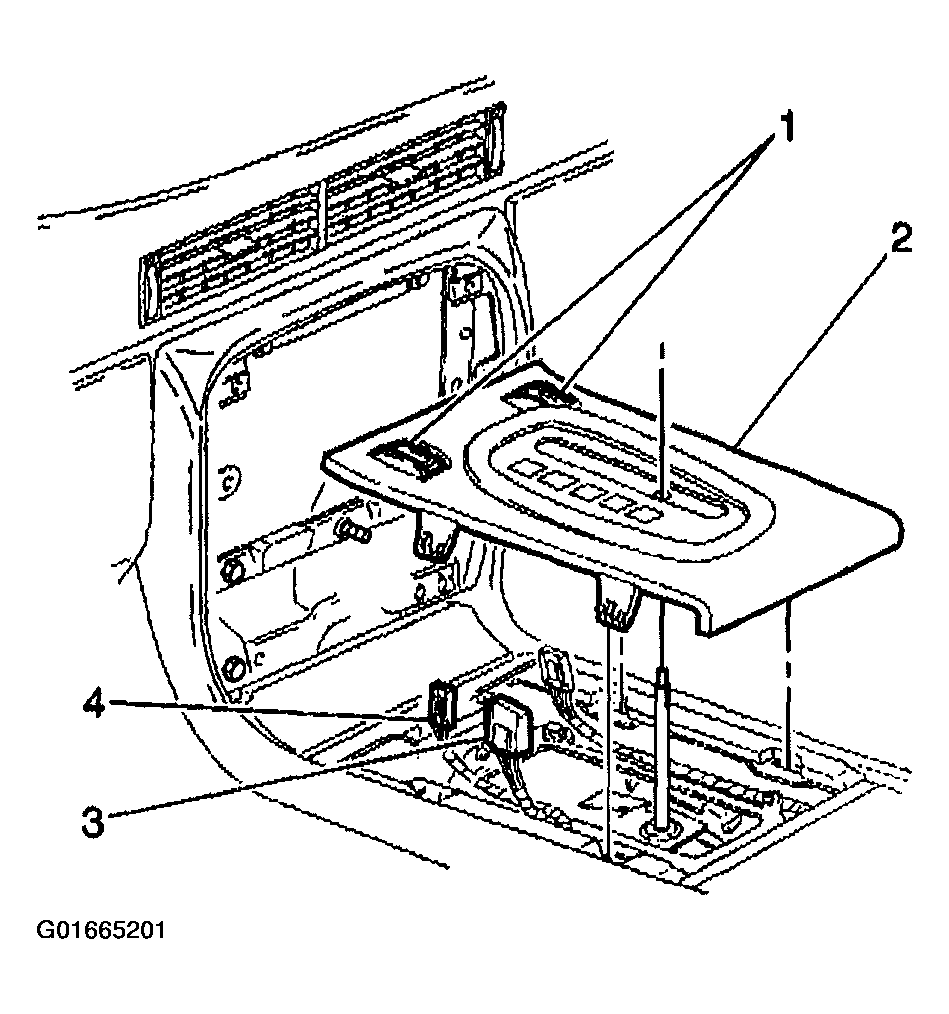

    Fig 2: Identifying Console Trim Plate
    G01665201Courtesy of GENERAL MOTORS CORP.
