Installation Procedure

  1. Partially install the console trim plate (2).

    Connect the electrical connectors.

  2. Align the trim plate retaining clips to the console.
  3. Push downward in order to fasten the trim plate to the console.

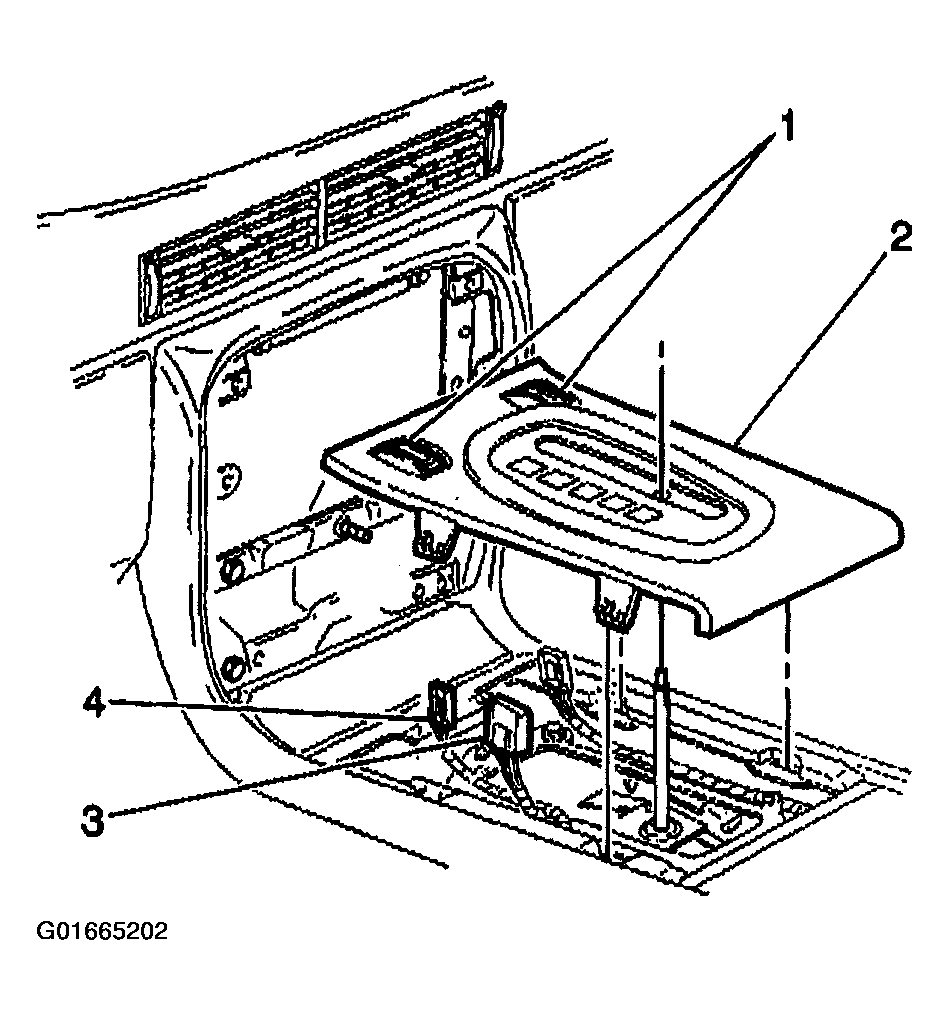

    Fig 1: Identifying Console Trim Plate
    G01665202Courtesy of GENERAL MOTORS CORP.
  4. Install the shifter handle.
  5. Install the shifter handle retaining clip.
  6. Place the shifter into the PARK position.
  7. Remove the blocks from the wheels.

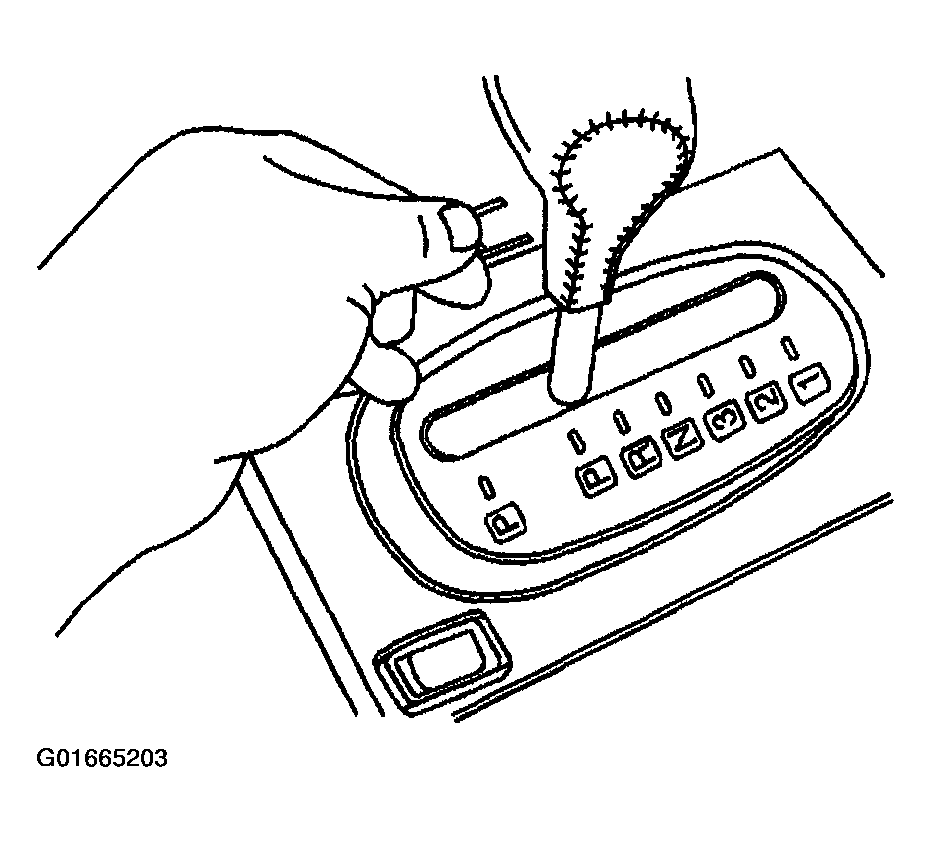

    Fig 2: View of Shifter Handle
    G01665203Courtesy of GENERAL MOTORS CORP.
