Installation Procedure

  1. Align the 4 retaining clips on the filler trim (3) with the slots in the opening bracket.

    Push the filler trim (3) into place.

  2. Install the left sound insulator. Refer to Closeout/Insulator Panel Replacement - Left .

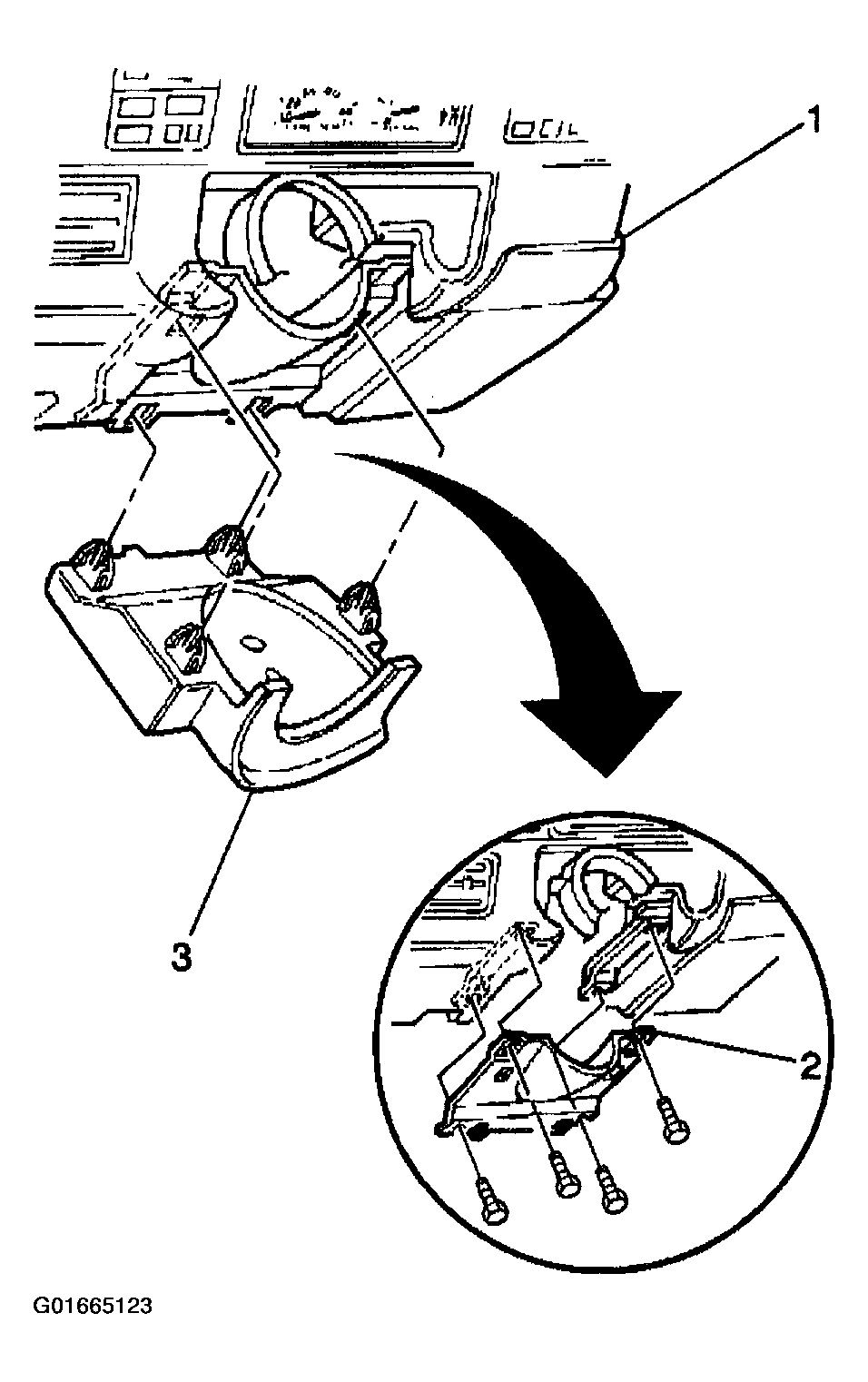

    Fig 1: Identifying Filler Trim
    G01665123Courtesy of GENERAL MOTORS CORP.
