Removal Procedure

CAUTION: Refer to SIR CAUTION
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the defroster grille. Refer to Defroster Grille Replacement .
  3. Remove the windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL .
  4. Remove the air outlet deflectors. Refer to IP Air Outlet Vent Replacement .

    Important:  Ensure the air outlet ducts (1) are closed in order to prevent the upper trim pad fasteners from falling into the HVAC ducts.

  5. Close the air outlet ducts.
    Fig 1: Identifying Air Outlet Ducts
    G01665142Courtesy of GENERAL MOTORS CORP.
  6. Remove the 3 fasteners (1) that retain the upper trim panel.

    The fasteners are different sizes, make note of the fastener size and location.

    Remove the fasteners through the defroster grille openings.

  7. Remove the 4 fasteners (2) through the air outlet deflector openings that retain the upper trim panel.

    Important:  This step refers to the passenger side of the vehicle.

  8. Press down on the forward edge of the trim panel while pulling upward and back on the rear edge of the trim panel.
  9. Tilt the steering wheel full downward.
  10. Remove the upper trim panel.

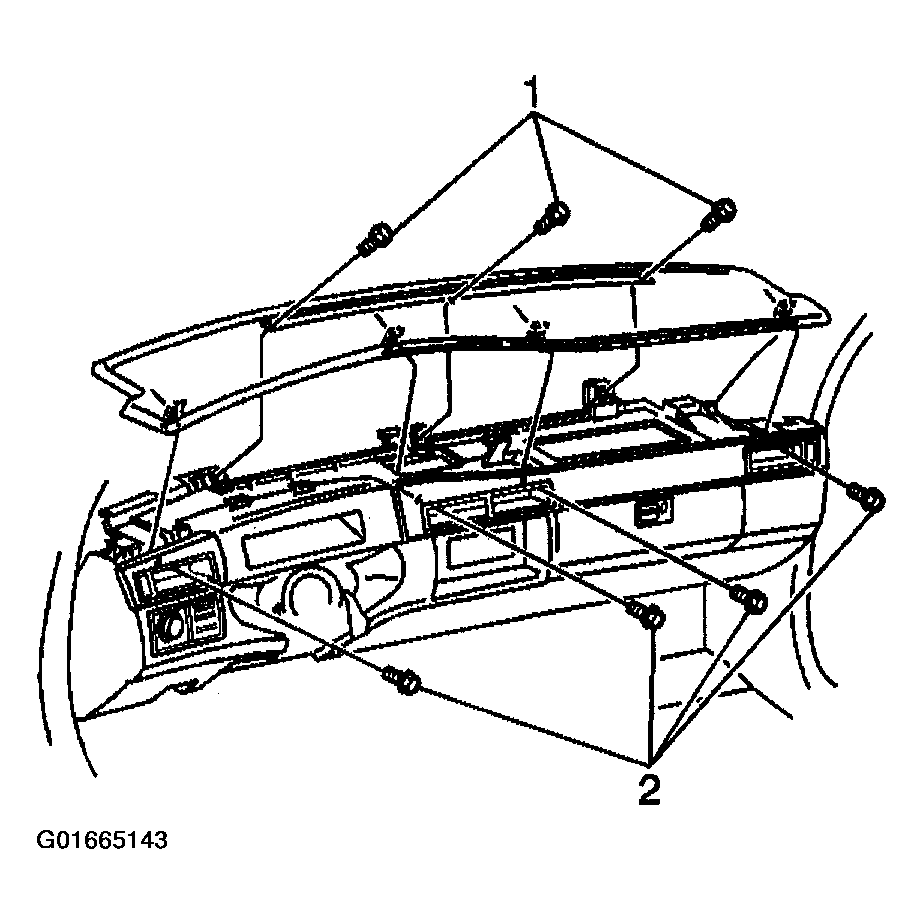

    Fig 2: Identifying Upper Trim Panel Fasteners & Air Outlet Deflector Fasteners
    G01665143Courtesy of GENERAL MOTORS CORP.
