Removal Procedure

  1. Remove the defroster grille. Refer to Defroster Grille Replacement .
  2. Disconnect the sunload (2) and the twilight (3) sensors from the defroster grille (1) by turning a quarter turn.

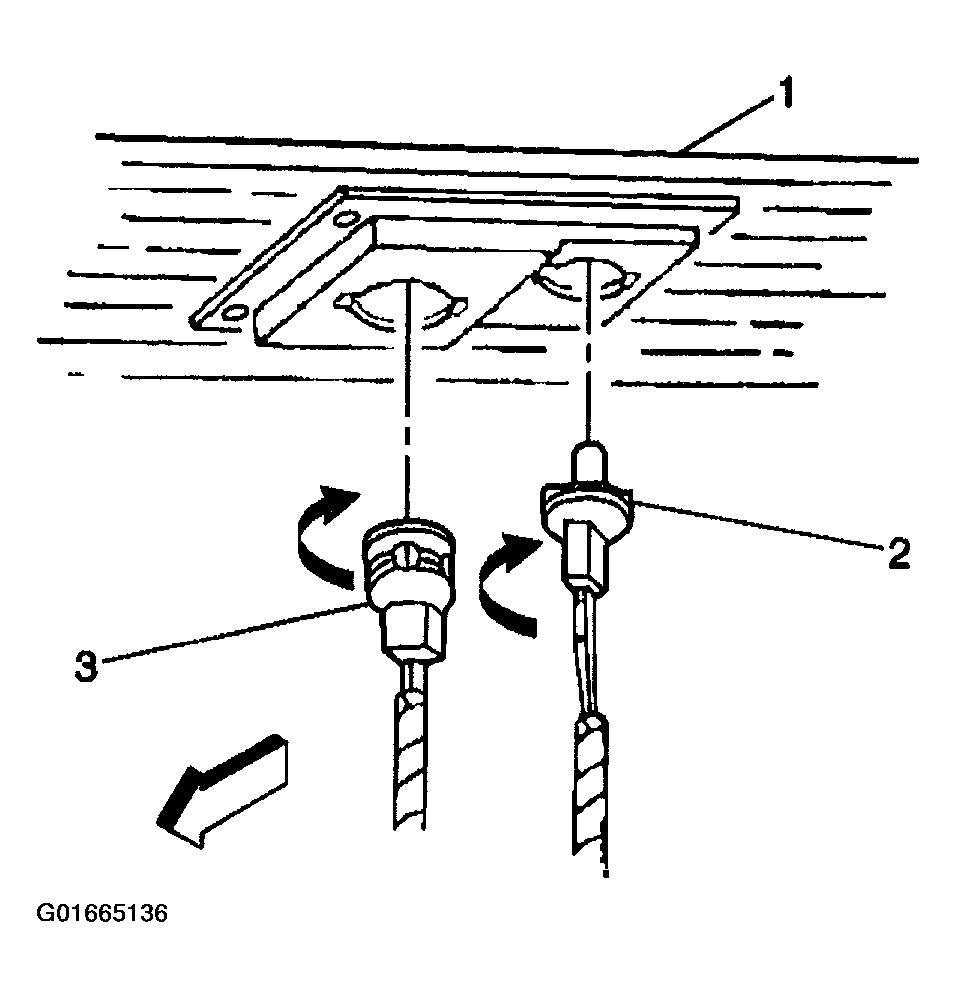

    Fig 1: Identifying Defroster Grille, Sunload, & Twilight
    G01665136Courtesy of GENERAL MOTORS CORP.
  3. Remove the twilight sensor from the instrument panel harness socket.
  4. Remove the instrument panel upper trim panel. Refer to Trim Pad Replacement - IP Upper .
  5. Disconnect the sunload sensor electrical connector.

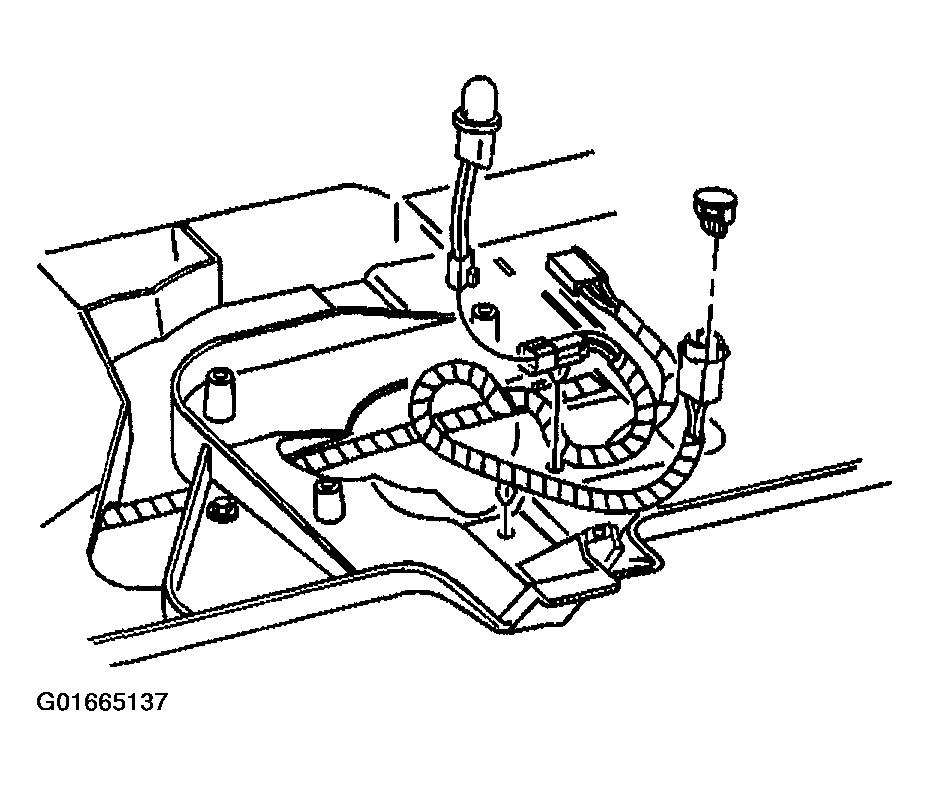

    Fig 2: View of Twilight Sensor
    G01665137Courtesy of GENERAL MOTORS CORP.
