Removal Procedure

  1. Remove the steering column trim. Refer to Trim Panel Replacement - Knee Bolster .
  2. Remove the steering column opening bracket.

    Refer to Knee Bolster Reinforcement Replacement .

  3. Disconnect the trim collar (2).
  4. Remove the trim collar (2).

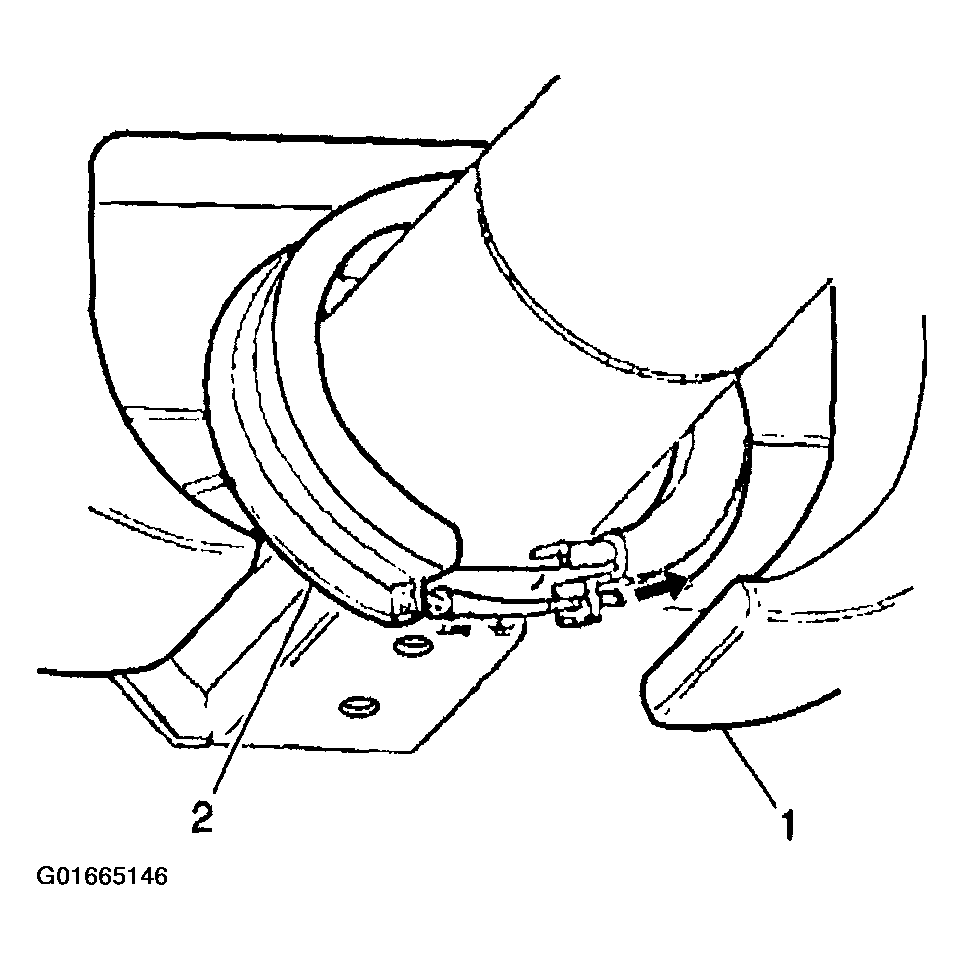

    Fig 1: Identifying Trim Collar
    G01665146Courtesy of GENERAL MOTORS CORP.
