Installation Procedure

  1. Pull the ends of the collar (2) around the steering column assembly.
  2. Engage the collar ends at the top and bottom side of the steering column.
  3. Install the steering column bracket. Refer to Knee Bolster Reinforcement Replacement .
  4. Install the steering column filler trim. Refer to Trim Panel Replacement - Knee Bolster .

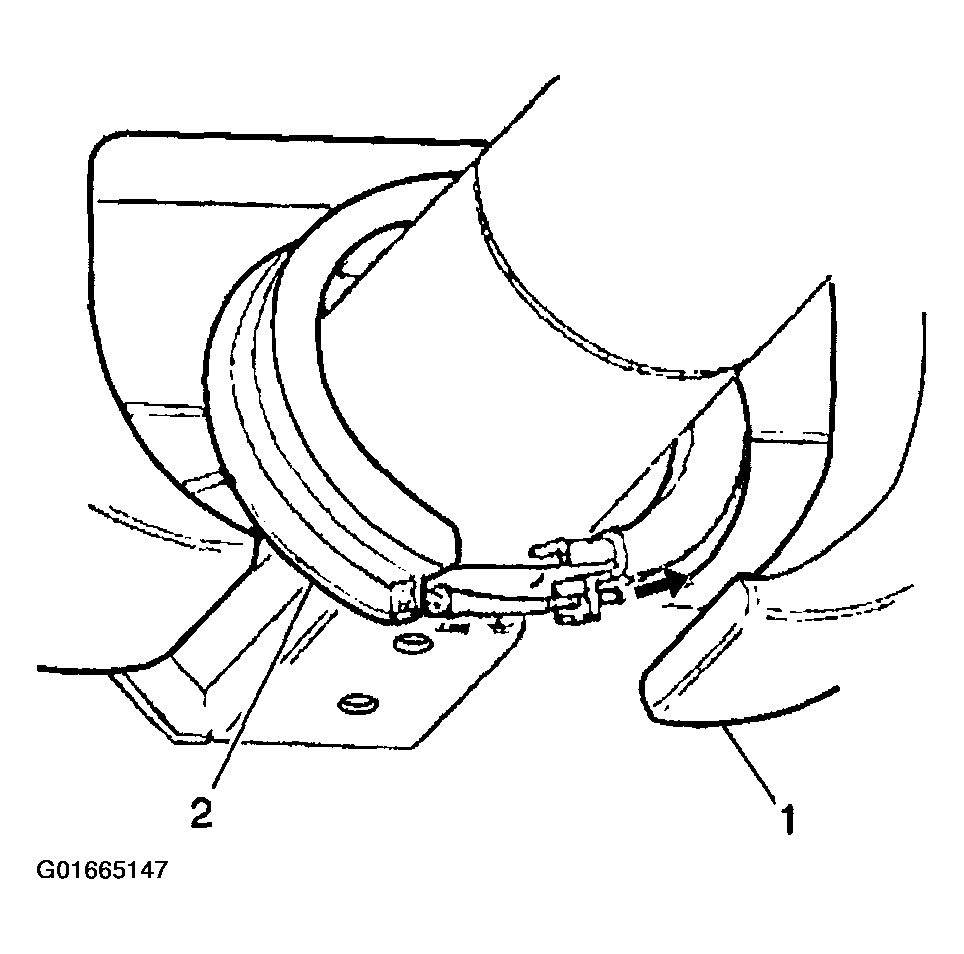

    Fig 1: Identifying Trim Collar
    G01665147Courtesy of GENERAL MOTORS CORP.
