Installation Procedure

Slide the cluster downward into position.
Position the locating pins on the cluster to the guide holes in the instrument panel.
NOTE: Refer to FASTENER NOTICE .
Install the 4 fasteners in sequence (as illustrated) in order to retain the cluster to the instrument panel.
Tighten

Tighten the fasteners (as illustrated), to 2 N.m (18 lb in).

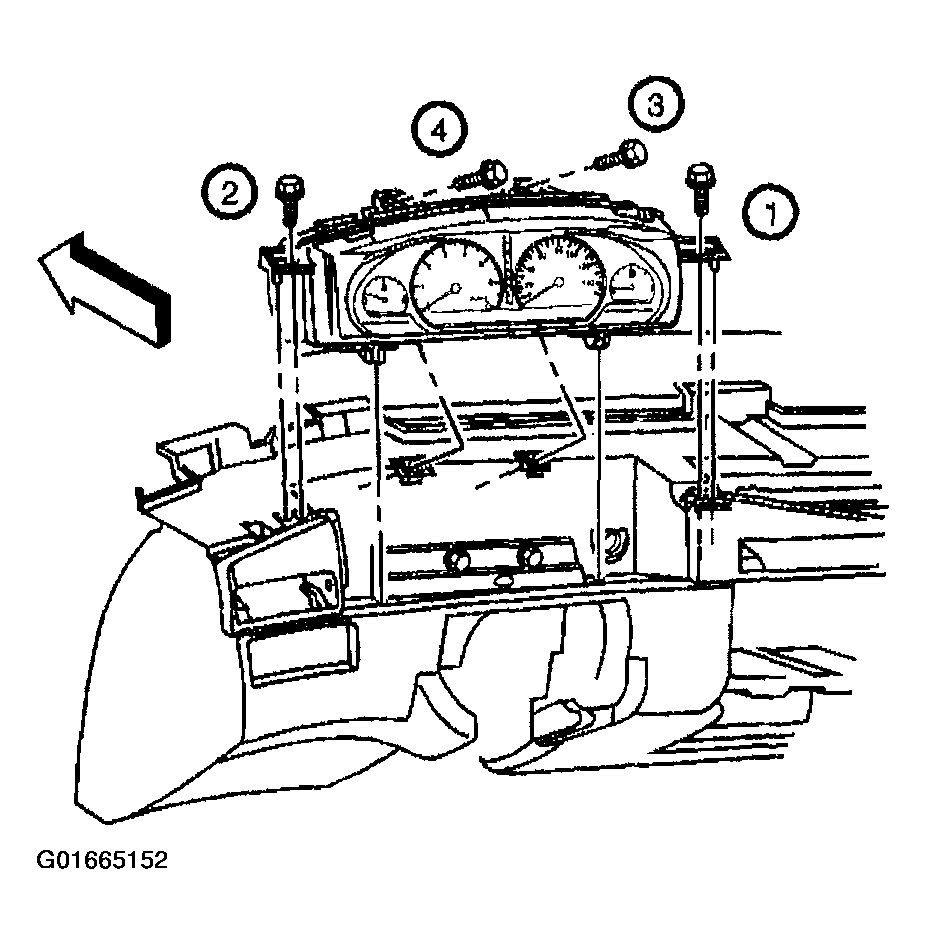

Fig 1: Fastener Tightening Sequence
Courtesy of GENERAL MOTORS CORP.

Important: To avoid bent cluster connector pins, make sure the electrical connectors are properly aligned before seating the connectors.
Secure the electrical connectors (1) to the top of the instrument cluster.
Ensure the electrical harness retainers (2,3) are secured to the top of the instrument panel.
Install the following fuses to the rear compartment fuse block:
- RLY IGN 1
- IGN O-BODY
- CLUSTER
Install the following fuses to the front fuse block:
- HAZARD
- MIRROR

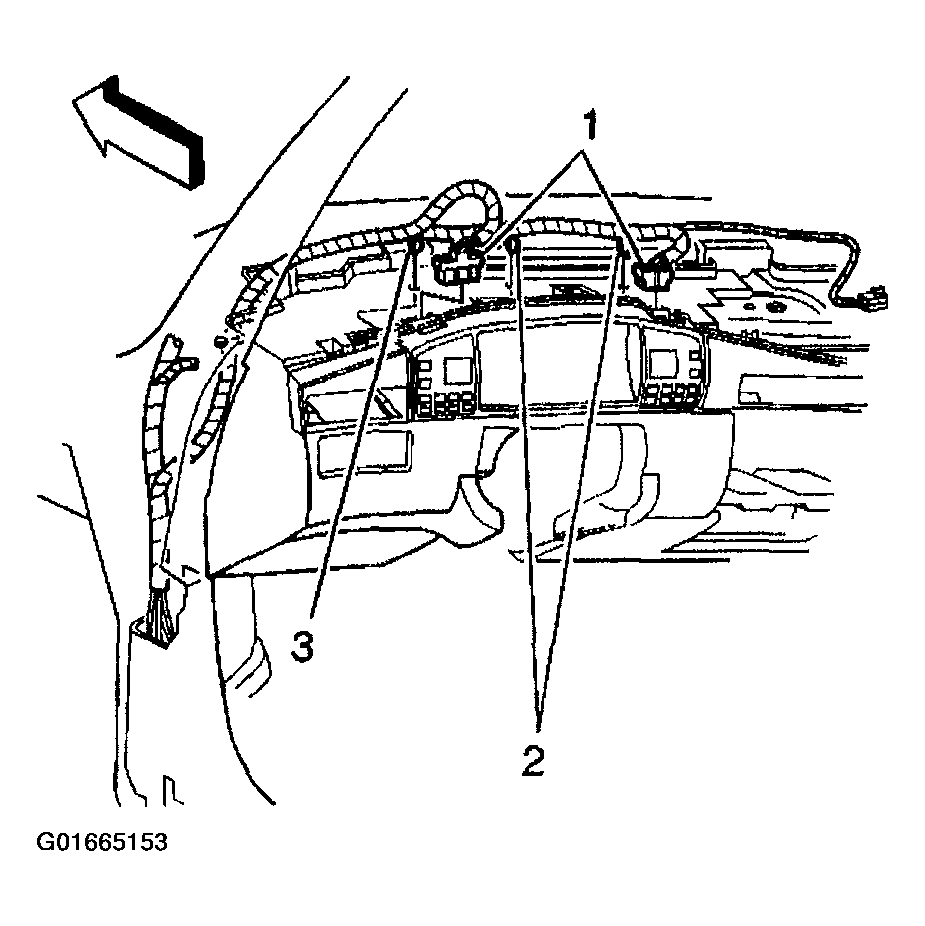

  Fig 2: Identifying Electrical Connectors & Harness Retainers
  Courtesy of GENERAL MOTORS CORP.
Install the upper trim pad. Refer to Trim Pad Replacement - IP Upper .
Reprogram the (IPC). Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS t.
