Removal Procedure

NOTE: Whenever the Instrument Panel Cluster (IPC) is removed from the vehicle, DO NOT set the IPC on its face for more than 15 minutes or damage to the fluid filled air core gages may result.
  1. Remove the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement (UY9) .
  2. Remove the fasteners (1) retaining the instrument panel cluster lens to the instrument panel cluster.
  3. Remove the instrument panel cluster lens.

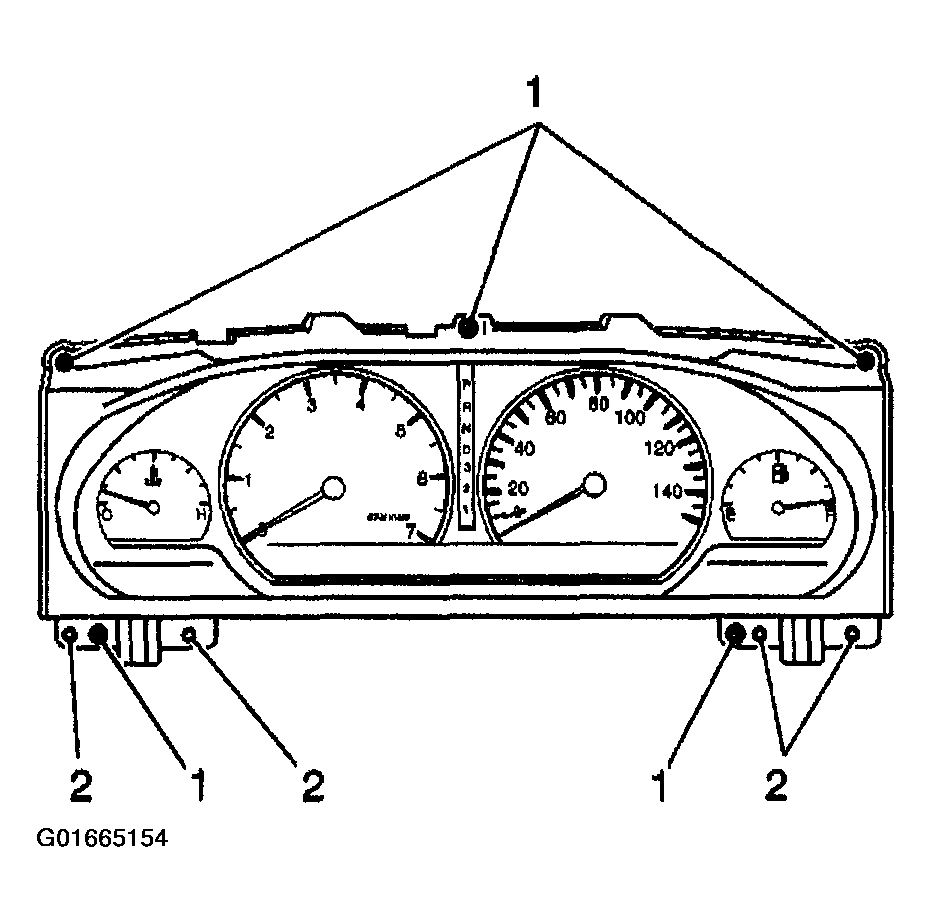

    Fig 1: Identifying IPC Lens to IPC Fasteners
    G01665154Courtesy of GENERAL MOTORS CORP.
