Installation Procedure

Remove any fingerprints, dirt or contaminates on the instrument cluster lens surface before reassembling.

  1. Align the locator holes (2) in the instrument panel cluster lens to the instrument panel cluster locating pins.
  2. Install the fasteners in order to retain the instrument panel cluster lens to the instrument panel cluster.
  3. Install the instrument panel cluster to the instrument panel. Refer to Instrument Panel Cluster (IPC) Replacement (UY9) .

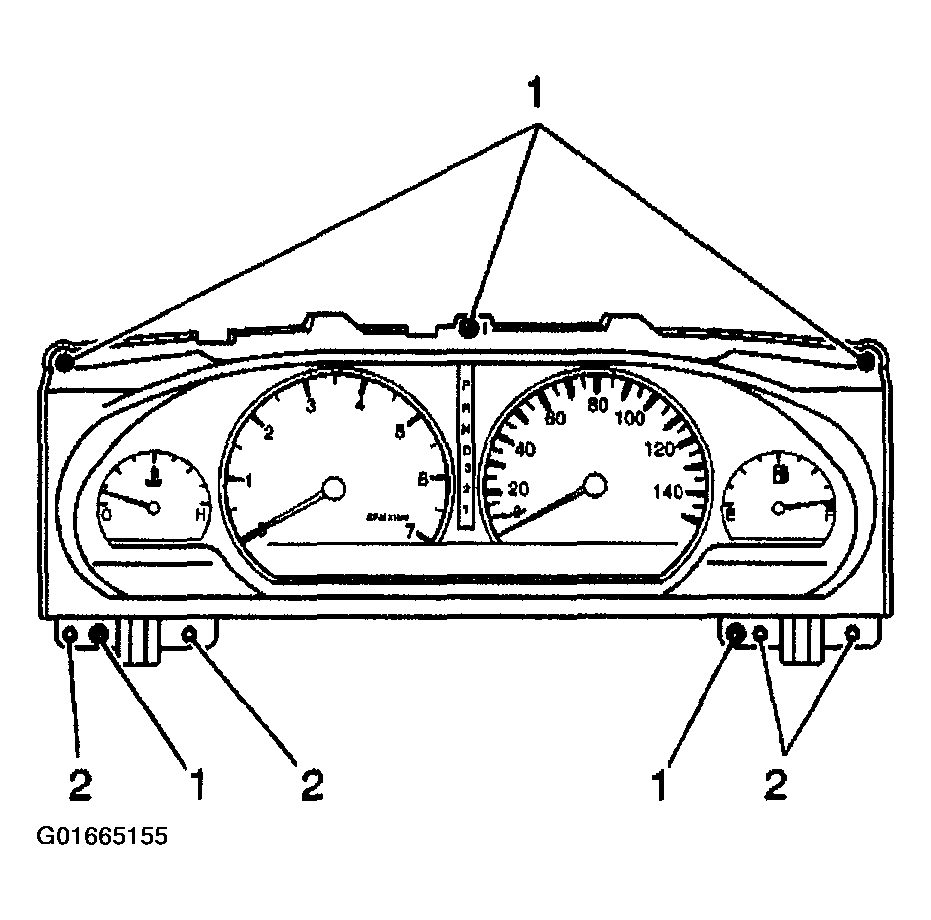

    Fig 1: Identifying IPC Lens to IPC Locating Pins Locator Holes
    G01665155Courtesy of GENERAL MOTORS CORP.
