Removal Procedure

  1. Remove the instrument panel upper trim panel. Refer to Trim Pad Replacement - IP Upper .
  2. Remove the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement (UY9) .
  3. Remove the 2 fasteners (5) from the ends of the right hand trim panel.
  4. Remove the 2 fasteners from the top center of the right hand trim panel.
  5. Release the hook and loop patch(es) (6) from the backside of the right hand trim panel (7).
  6. Remove the trim panel (7).

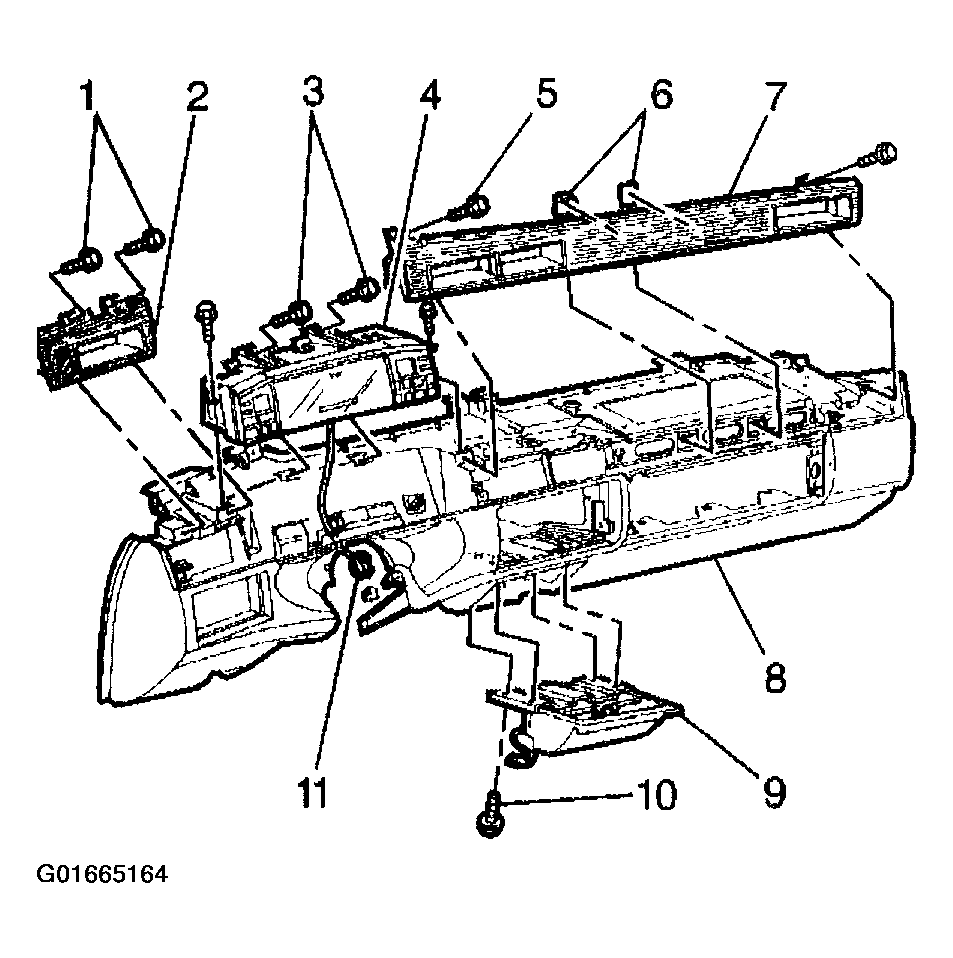

    Fig 1: Identifying Right Hand Trim Panel, Fasteners, & Hook & Loop Patch(es)
    G01665164Courtesy of GENERAL MOTORS CORP.
