Installation Procedure

  1. Align the right hand trim panel (7) into position.
  2. Install the trim panel (7).

    In order to secure the hook and loop patch, gently press at the center point of the trim panel.

  3. Install the 2 fasteners to the top center of the right hand trim panel.
  4. Install the 2 fasteners (5) to the ends of the right hand trim panel (7).
  5. Install the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement (UY9) .
  6. Install the instrument panel upper trim panel. Refer to Trim Pad Replacement - IP Upper .

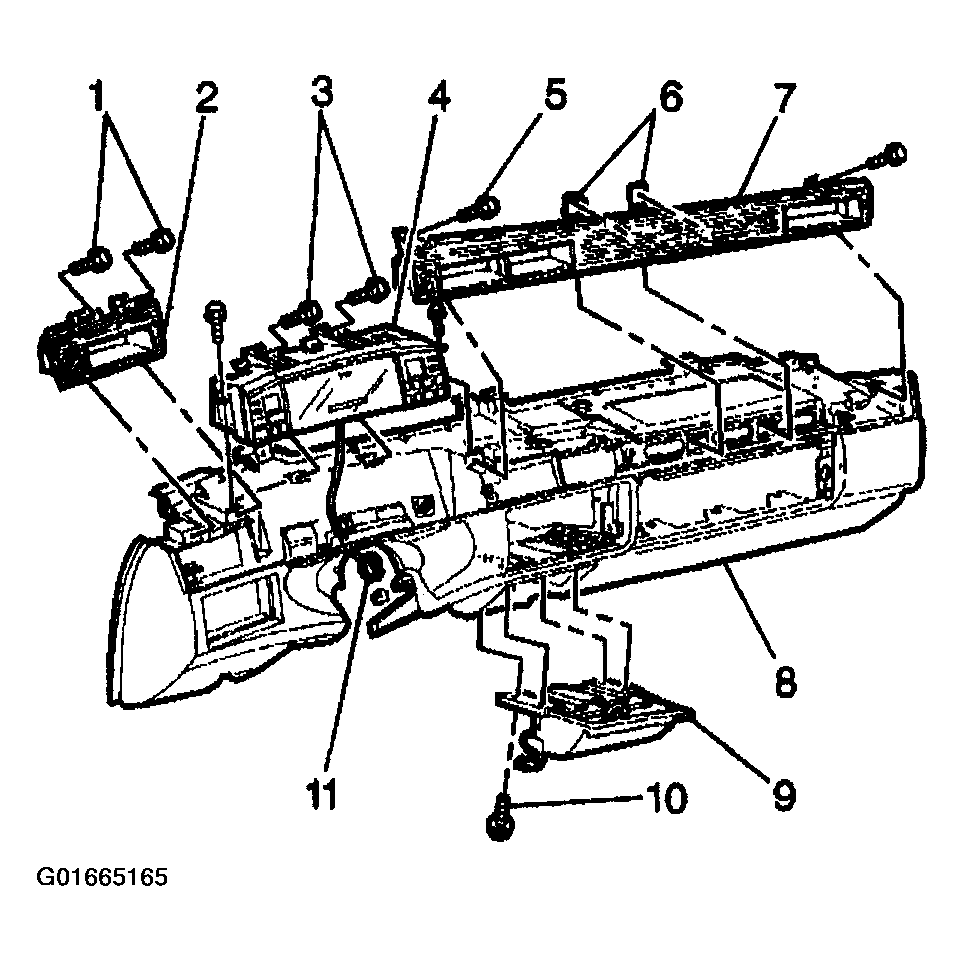

    Fig 1: Identifying Right Hand Trim Panel & Fasteners
    G01665165Courtesy of GENERAL MOTORS CORP.
