Removal Procedure

  1. Remove the instrument panel upper trim panel. Refer to Trim Pad Replacement - IP Upper .
  2. Remove the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement (UY9) .
  3. Remove the 2 fasteners (1) retaining the left hand trim plate (2).
  4. Remove the left hand trim plate (2).

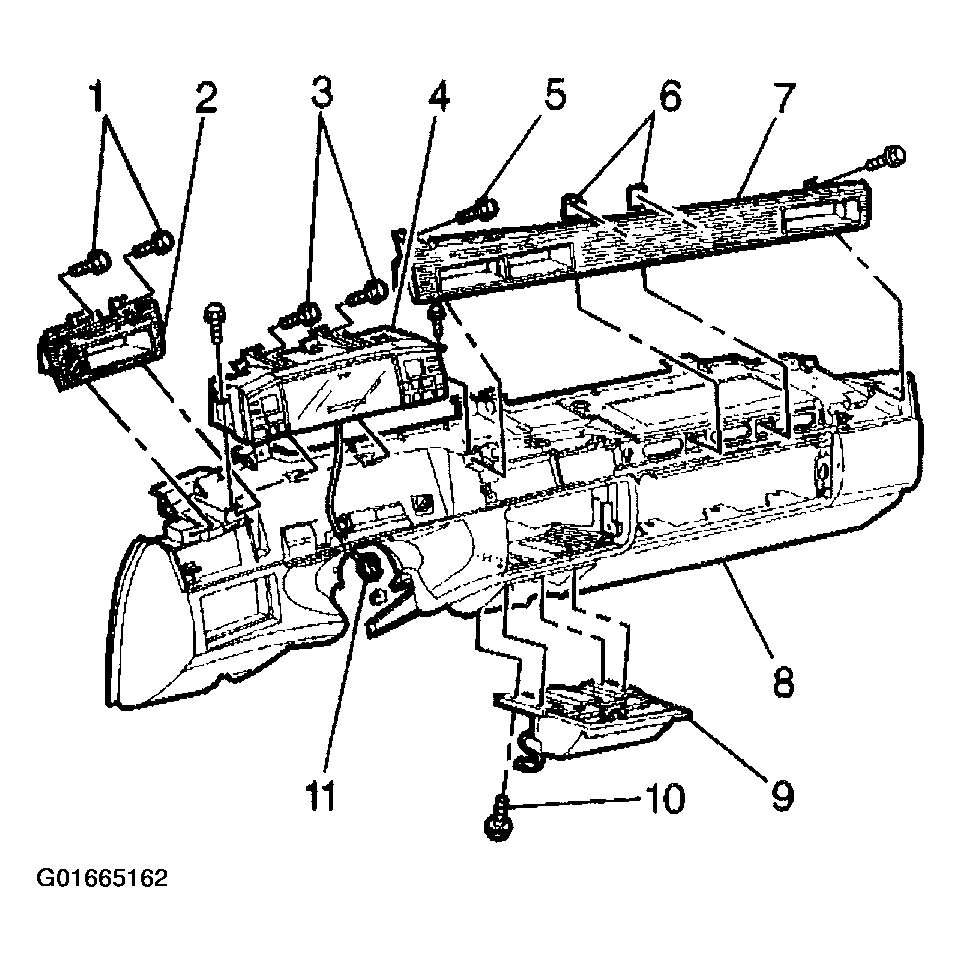

    Fig 1: Identifying Left Hand Trim Plate & Fasteners
    G01665162Courtesy of GENERAL MOTORS CORP.
