Installation Procedure

  1. Install the left hand trim plate (2).
  2. Install the 2 fasteners (1) in order to retain the left hand trim plate (2).
  3. Install the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement (UY9) .
  4. Install the instrument panel upper trim panel. Refer to Trim Pad Replacement - IP Upper .

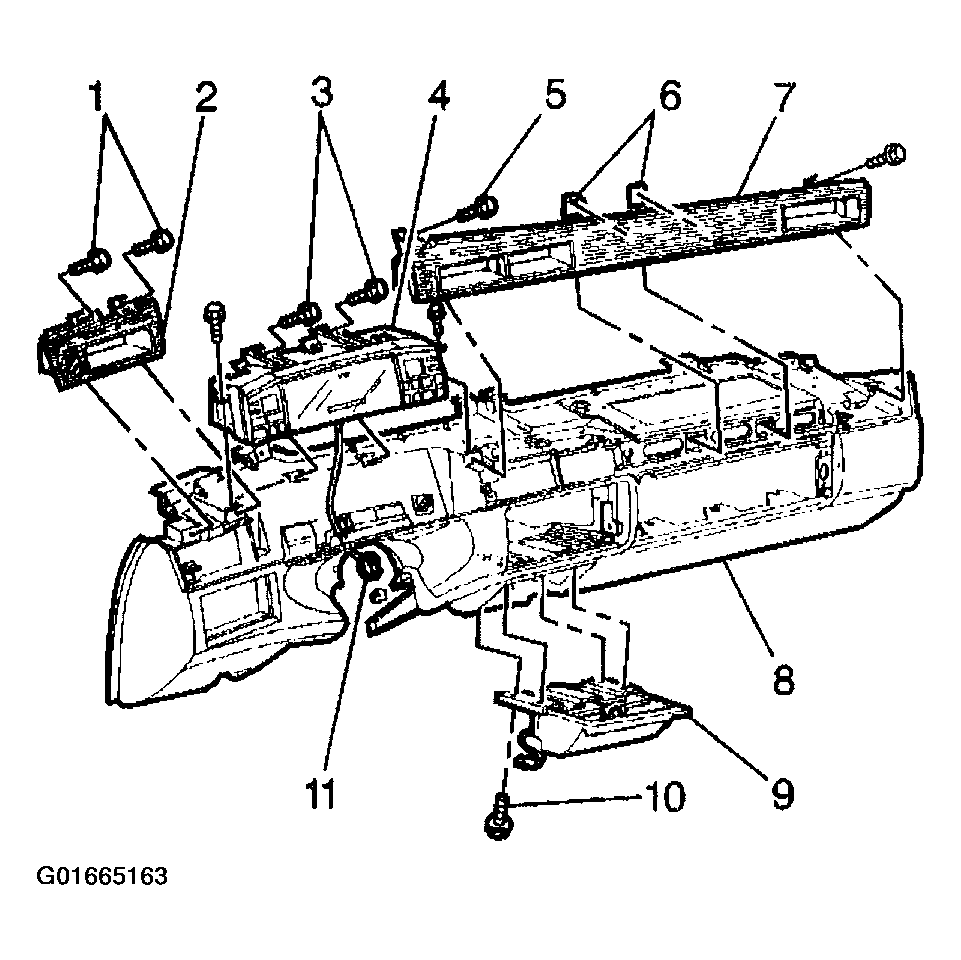

    Fig 1: Identifying Left Hand Trim Plate & Fasteners
    G01665163Courtesy of GENERAL MOTORS CORP.
