Removal Procedure

  1. Remove the instrument panel storage compartment. Refer to Storage Compartment Replacement - IP .
  2. Disengage the retainers fastening the instrument panel storage compartment switch plate bezel. Remove the bezel.
  3. Squeeze the instrument panel storage compartment lamp switch retainers.

    Pry out the instrument panel storage compartment lamp switch.

  4. Remove the lamp switch (2).

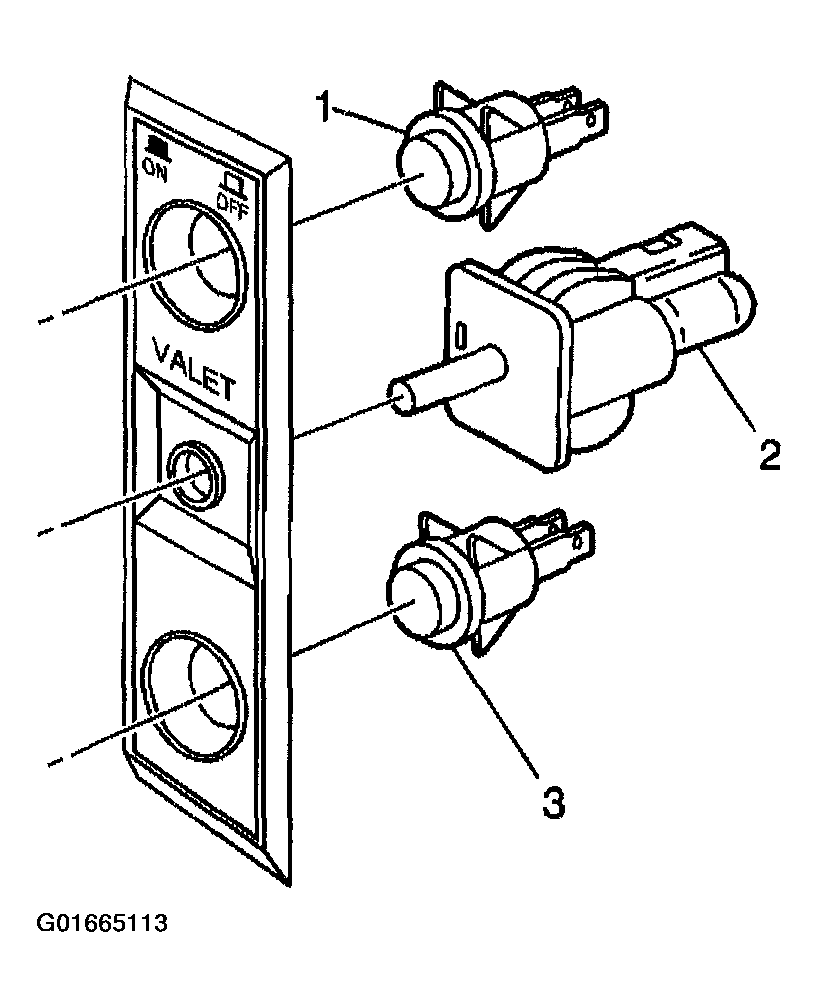

    Fig 1: Identifying Lamp Switch
    G01665113Courtesy of GENERAL MOTORS CORP.
