Installation Procedure

  1. Align the Instrument panel storage compartment lamp switch (2) to the instrument panel storage compartment lamp switch hole opening.

    Push the lamp switch inward in order to fasten.

  2. Align the instrument panel storage compartment switch plate bezel to the instrument panel storage compartment.

    Push inward to fasten the bezel.

  3. Install the instrument panel storage compartment. Refer to Storage Compartment Replacement - IP .

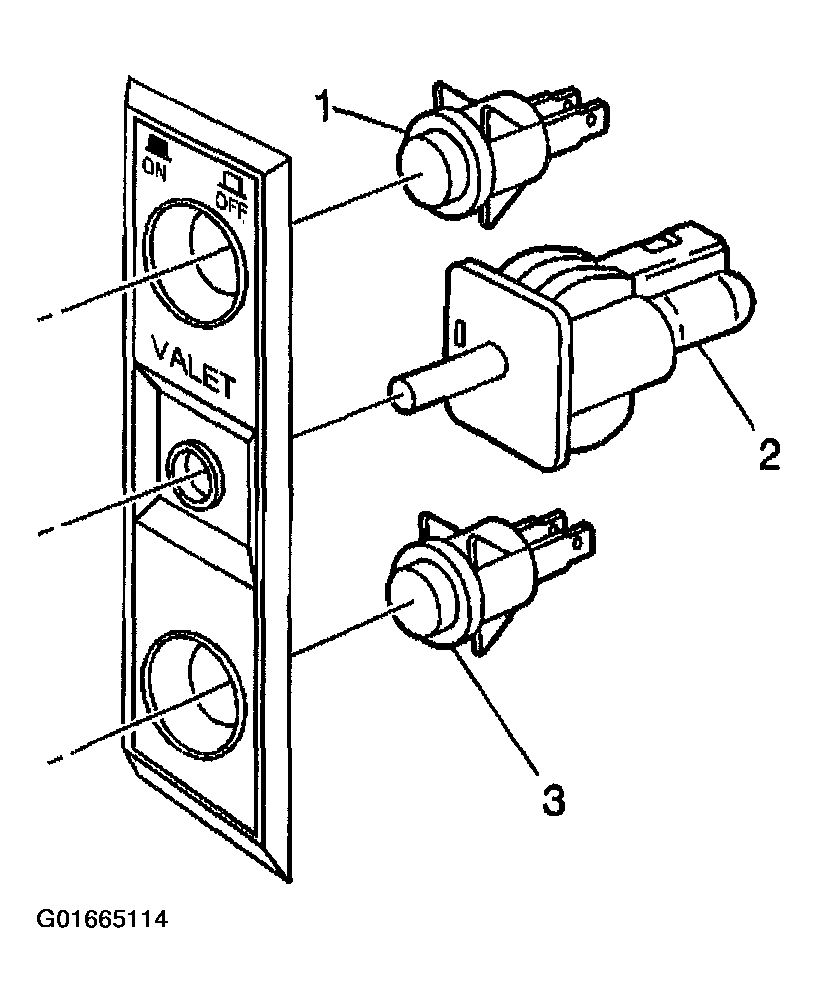

    Fig 1: Identifying Storage Compartment Lamp Switch
    G01665114Courtesy of GENERAL MOTORS CORP.
