Removal Procedure

  1. Remove the instrument panel. Refer to IP Assembly Replacement .
  2. Remove the 4 fasteners (4) retaining the center brace (5) to the hinge pillar tie bar (1) and the floor pan.
  3. Remove the center brace (5).
  4. Remove the 6 fasteners (2, 3) retaining the hinge pillar tie bar (1) to the body.

    Remove the hinge pillar tie bar (1).

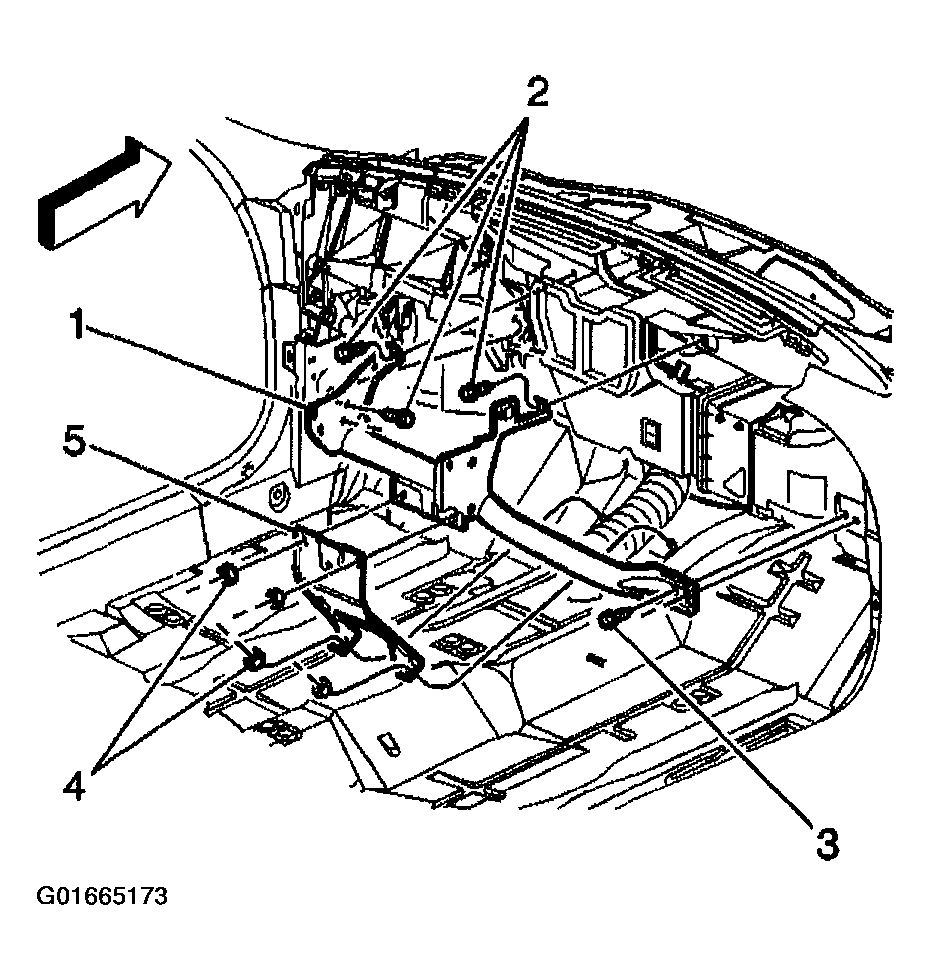

    Fig 1: Identifying Center Brace, Hinge Pillar Tie Bar, & Fasteners
    G01665173Courtesy of GENERAL MOTORS CORP.
  5. Remove the fasteners (1, 3, 4) retaining the tie bar bracket (2) to the body.
  6. Remove the bracket (2).

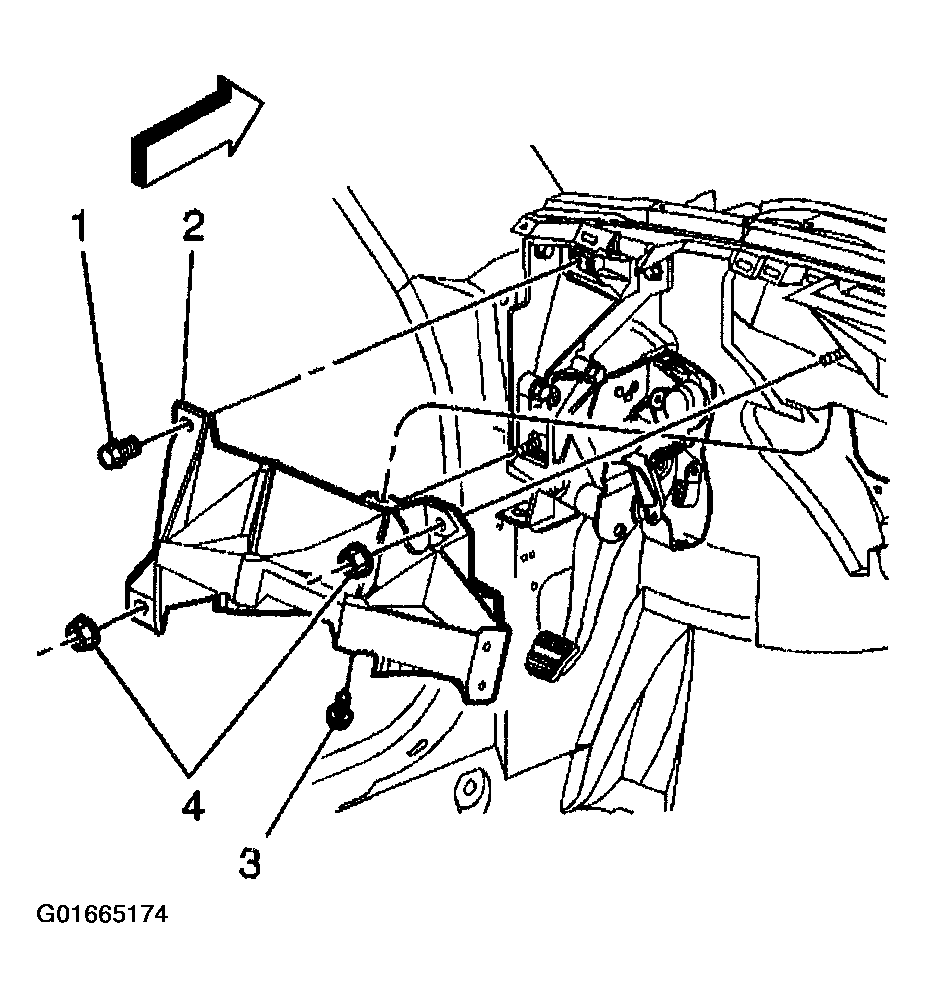

    Fig 2: Identifying Tie Bar Bracket & Fasteners
    G01665174Courtesy of GENERAL MOTORS CORP.
  7. Remove the park brake assembly. Refer to PARK BRAKE PEDAL ASSEMBLY .
  8. Remove the fasteners (2, 3, 4, 5) retaining the reinforcement (1) to the body.

    Remove the reinforcement (1).

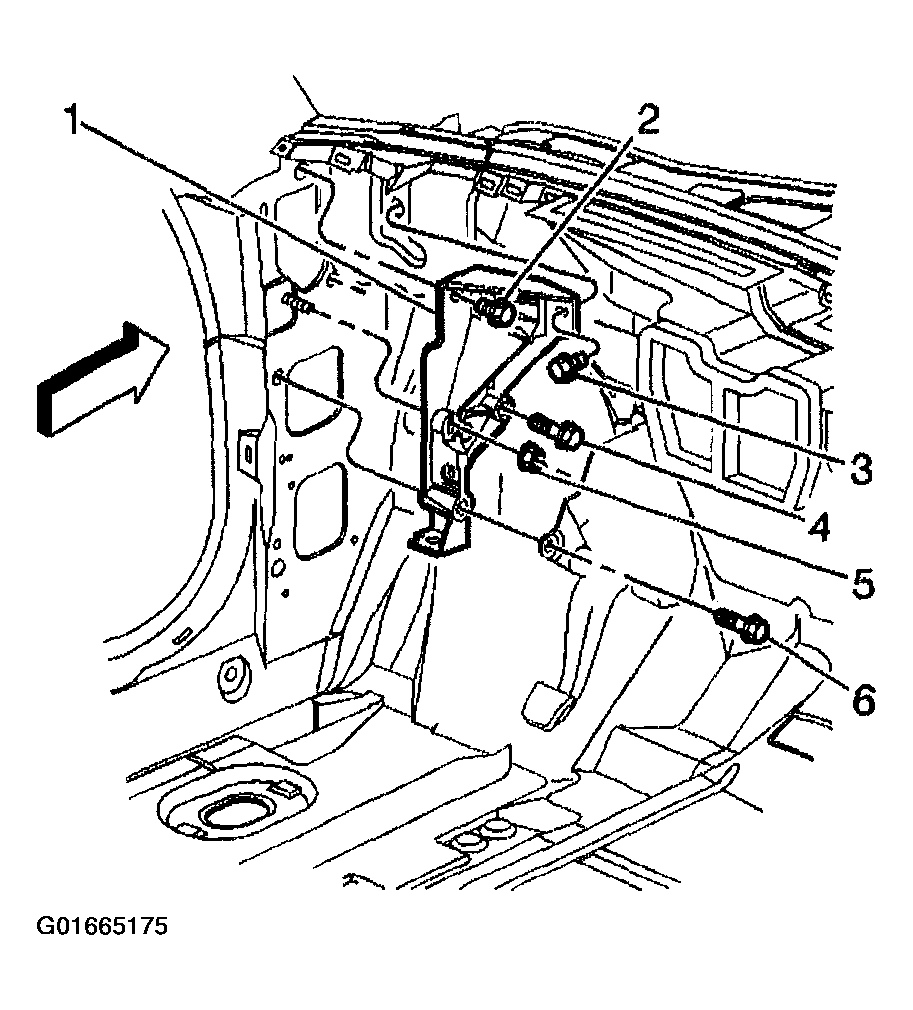

    Fig 3: Identifying Reinforcement to Body Fasteners
    G01665175Courtesy of GENERAL MOTORS CORP.
