Removal Procedure

  1. Insert a thin, flat-bladed tool on both sides of the driver information display switch (2).

    Gently pry out the driver information display switch from the console opening.

  2. Partially remove the driver information display switch.
  3. Disconnect the electrical connector (1).
  4. Remove the driver information display switch.

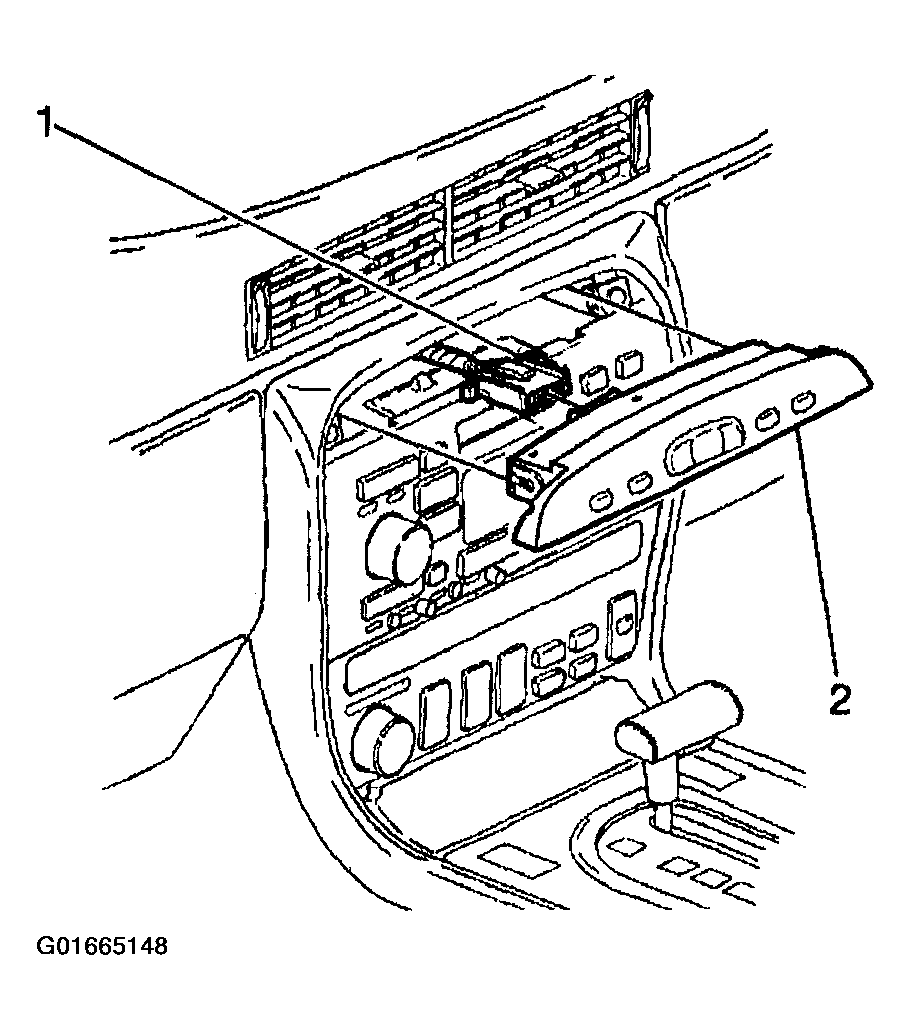

    Fig 1: Identifying Driver Information Display Switch & Electrical Connector
    G01665148Courtesy of GENERAL MOTORS CORP.
