Removal Procedure

  1. Open the console compartment door.
  2. Remove the 4 fasteners (1) retaining the console door to the door plate.
  3. Remove the console compartment door.

    Slide the door rearward in order to remove.

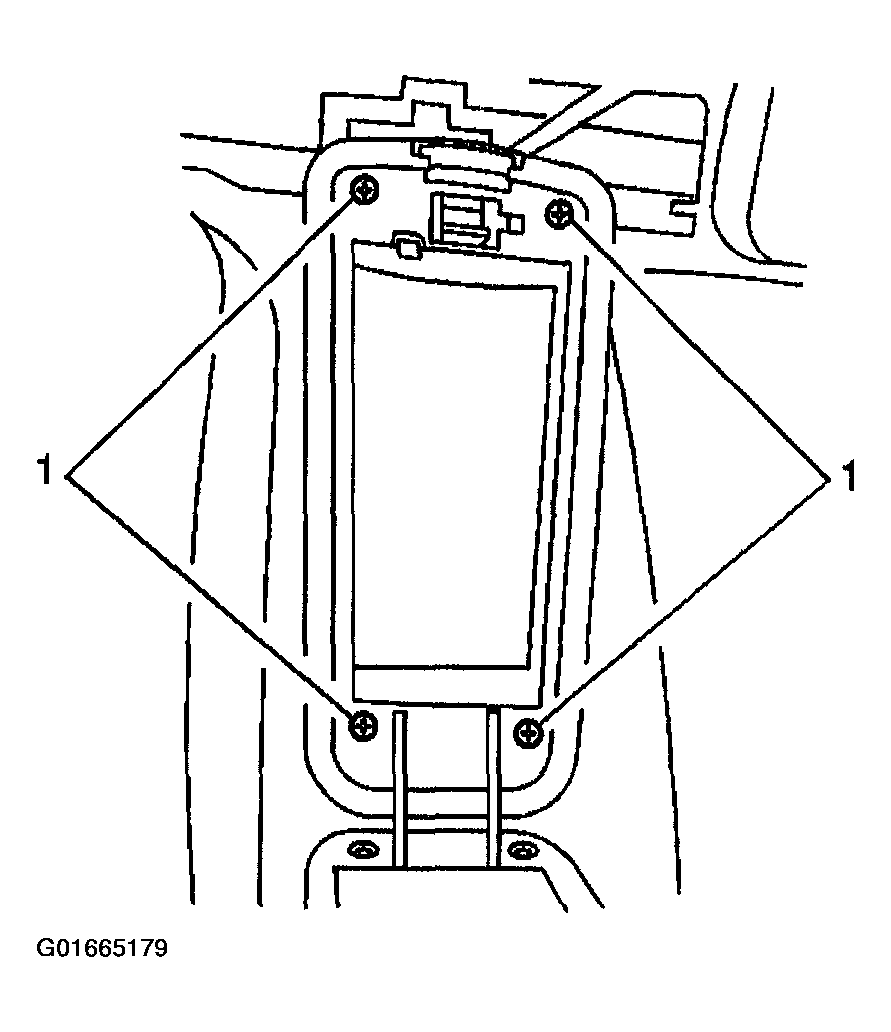

    Fig 1: Identifying Console Door to Door Plate Fasteners
    G01665179Courtesy of GENERAL MOTORS CORP.
