Removal Procedure

  1. Use a flat bladed tool to carefully pry the defroster grill (1) upward.
  2. Disconnect the sunload and twilight sensors from the defroster grille. Refer to Sunload and Twilight Sentinel Sensor Replacement .
  3. Remove the defroster grille.

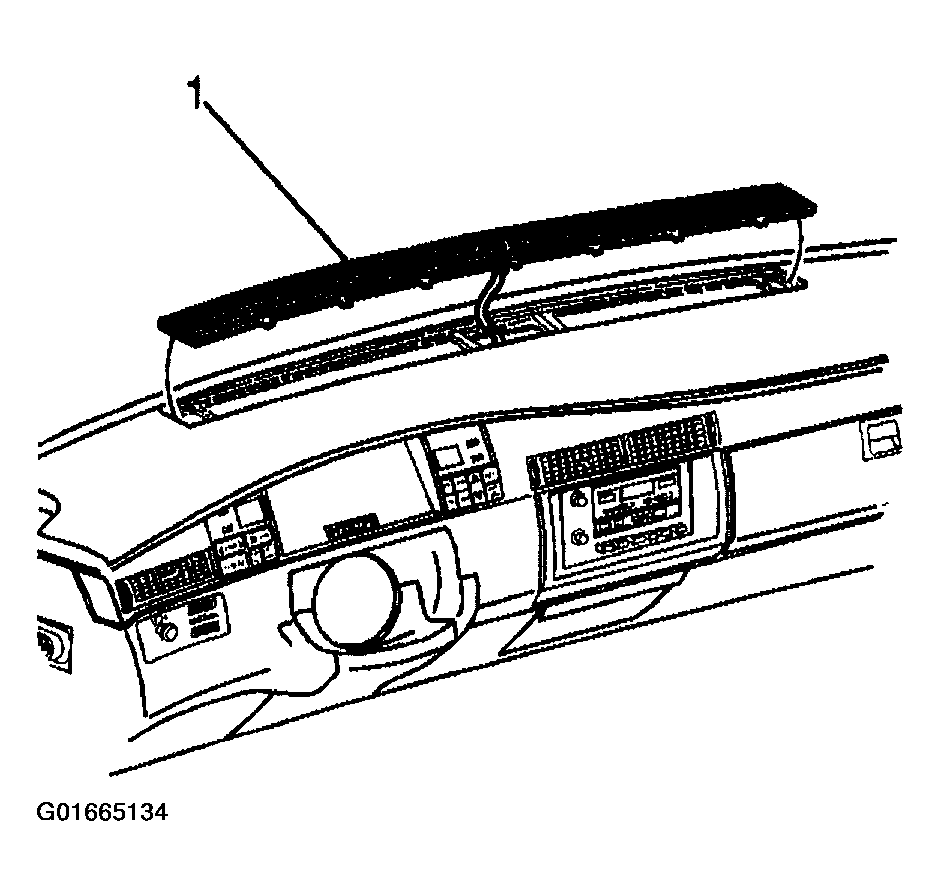

    Fig 1: Identifying Defroster Grill
    G01665134Courtesy of GENERAL MOTORS CORP.
