Installation Procedure

  1. Partially install the defroster grille (1).
  2. Connect the sunload and twilight sensors to the defroster grille. Refer to Sunload and Twilight Sentinel Sensor Replacement .
  3. Install the defroster grille.

    Insert the ends of the grille first then snap into place working towards the center.

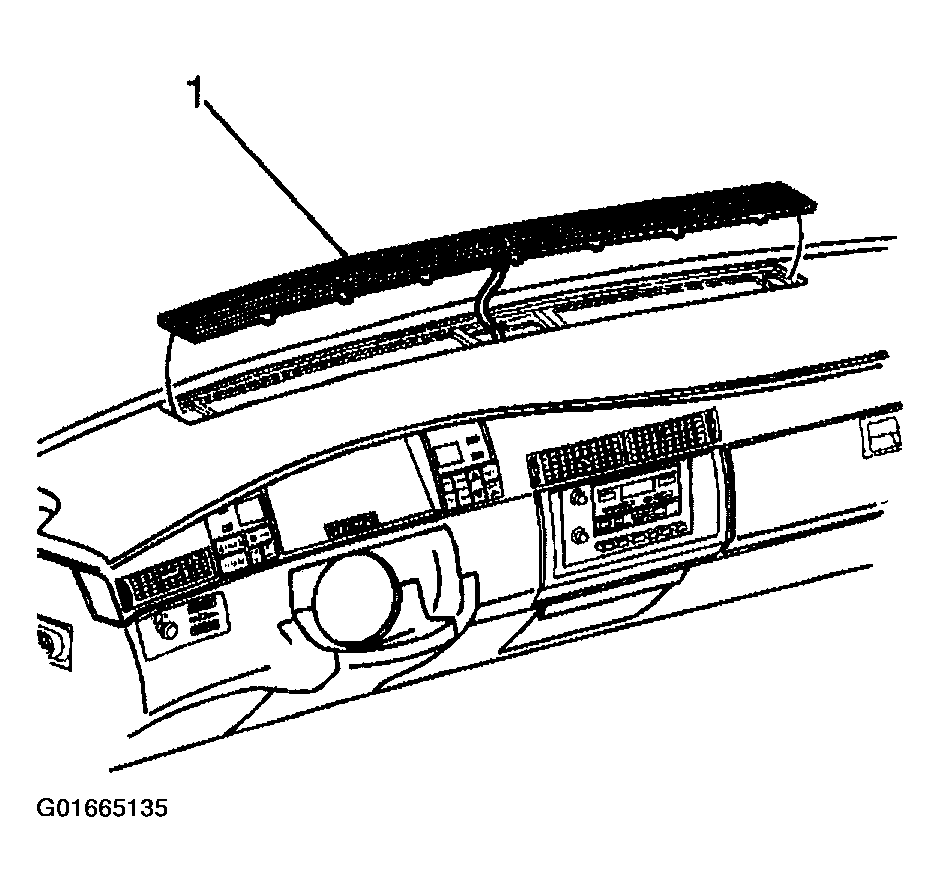

    Fig 1: Identifying Defroster Grill
    G01665135Courtesy of GENERAL MOTORS CORP.
