Removal Procedure

  1. Disengage the retaining clips on the rear of the console center trim plate by pulling upward in order to allow access for the cup holder removal.
  2. Open the cupholder.
  3. Remove the rubber liner from the bottom of the cupholder.
  4. Remove the fasteners (1) from the bottom of the cupholder.

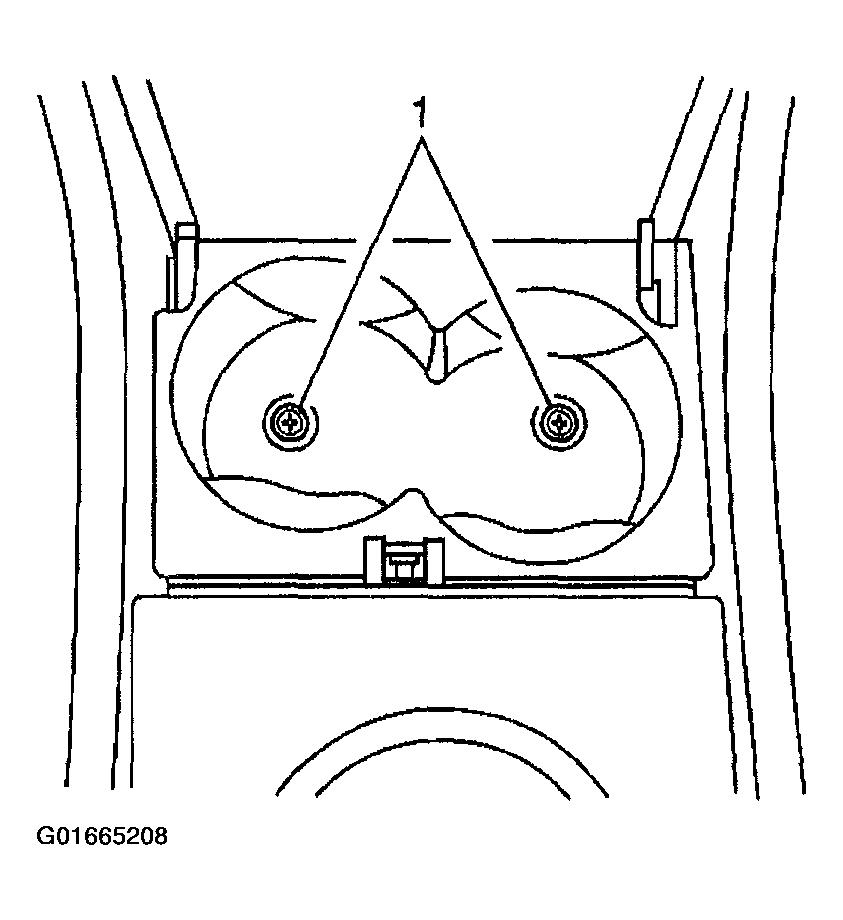

    Fig 1: Identifying Bottom of Cupholder Fasteners
    G01665208Courtesy of GENERAL MOTORS CORP.
  5. Remove the cupholder from the console.

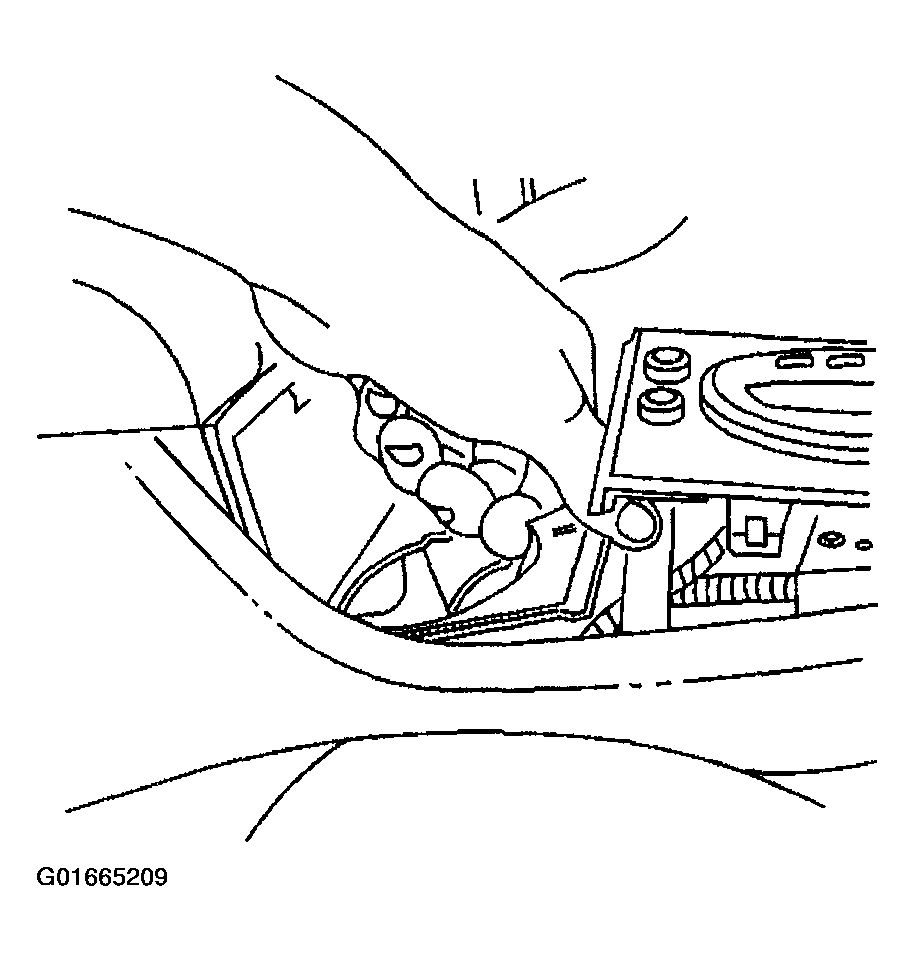

    Fig 2: Removing Cupholder
    G01665209Courtesy of GENERAL MOTORS CORP.
