Removal Procedure

  1. Remove the console storage compartment. Refer to Console Storage Bin Replacement .
  2. Disconnect the 3 electrical connectors on the left inner side of the center console.
  3. Remove the console trim plate. Refer to Trim Plate Replacement - Console Front .
  4. Remove the ashtray. Refer to Ashtray Replacement .
  5. Remove the driver information switch. Refer to Driver Information Center Switch Replacement .
  6. Remove the radio and A/C control assembly.

    Refer to RADIO REPLACEMENT .

  7. Remove the 2 fasteners (2) retaining the console to the floor.
  8. Remove the 4 fasteners (1) retaining the console to the instrument panel.
  9. Disconnect the console air supply duct. Turn in order to release.
  10. Release the tie band in order to remove.
  11. Disconnect the electrical connectors to the console.
  12. Disconnect the auto transmission park lock cable from the shift plate bracket.
  13. Disconnect the auto transmission range selector lever cable from the shift plate bracket.
  14. Disconnect the BTSI electrical connector.
    NOTE: When removing or installing the center console, do not allow the metal brackets to scrape the seats and damage the material.
  15. Pull the console rearward while lifting upward on the rear of the console.
  16. Remove the console from the vehicle.
  17. Transfer the components as necessary.
  18. Remove the shift assembly from the console.

    Refer to SHIFT INTERLOCK SOLENOID .

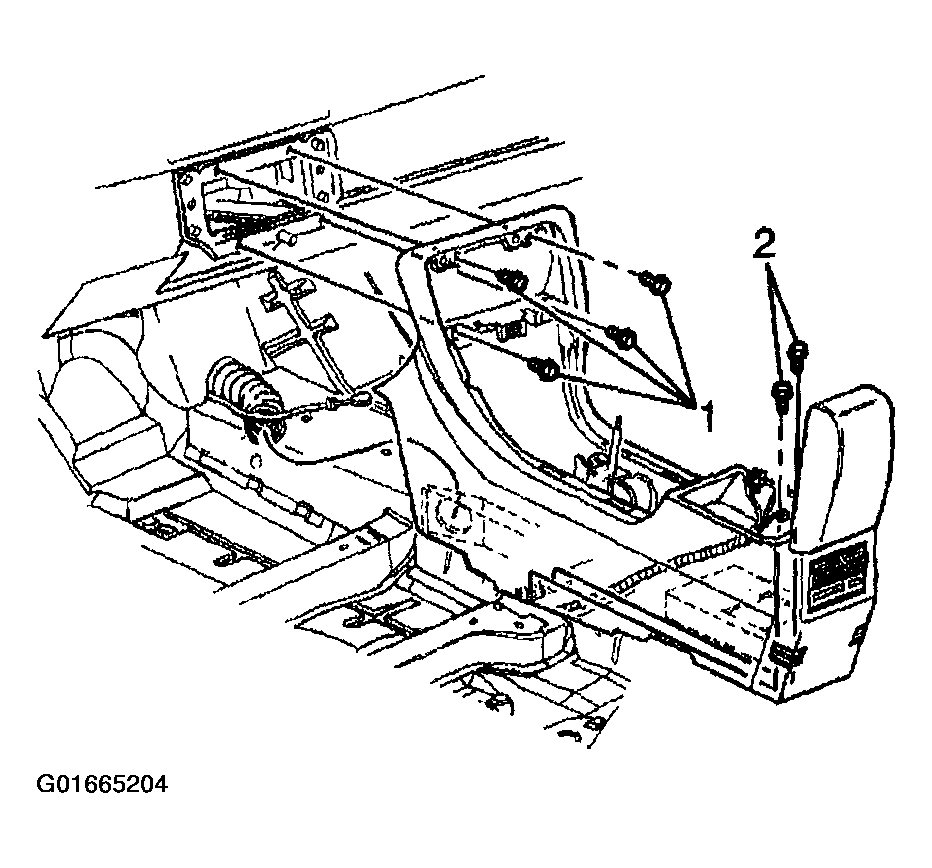

    Fig 1: Identifying Console Fasteners
    G01665204Courtesy of GENERAL MOTORS CORP.
