Installation Procedure

  1. Install the shift assembly to the console. Refer to SHIFT INTERLOCK SOLENOID .
  2. Install the console to the vehicle.
  3. Position the 3 electrical connectors up through the left side of the center console to the original location.
  4. Connect the electrical connectors to the console.
  5. Connect the console blower air supply duct.
  6. Tighten the tie strap in order to secure the air duct.
    NOTE: Refer to FASTENER NOTICE .
  7. Install the 4 fasteners (1) that retain the console to the IP.

    Tighten

    Tighten the fasteners to 6 N.m (53 lb in).

  8. Install the 2 rear storage compartment fasteners (2) that retain the console to the floor.

    Tighten

    Tighten the fasteners to 24 N.m (18 lb ft).

  9. Connect the auto transmission park lock cable to the shift plate bracket.
  10. Connect the auto transmission range selector lever cable to the shift plate bracket.
  11. Connect the BTSI electrical connector.

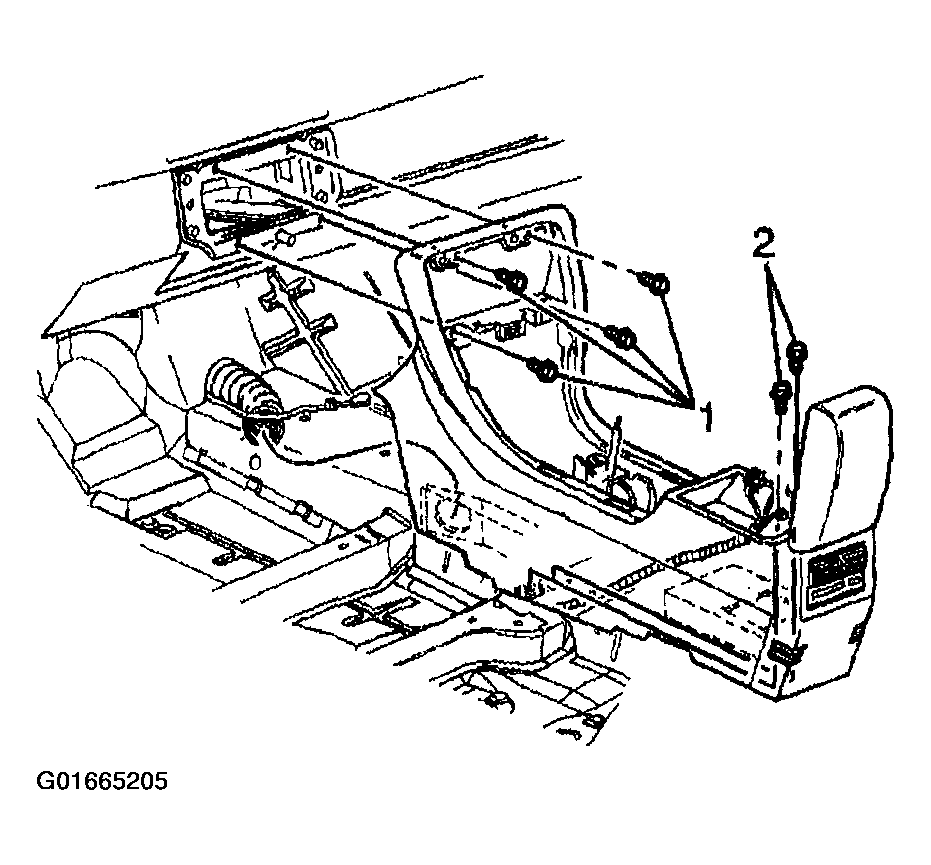

    Fig 1: Identifying Console Fasteners
    G01665205Courtesy of GENERAL MOTORS CORP.
  12. Install the radio/heater and A/C control assembly.

    Refer to RADIO REPLACEMENT .

  13. Install the driver information switch to the console. Refer to Driver Information Center Switch Replacement .
  14. Install the ashtray to the console. Refer to Ashtray Replacement .
  15. Install the console trim plate. Refer to Trim Plate Replacement - Console Front .
  16. Install the storage compartment. Refer to Console Storage Bin Replacement .
