Removal Procedure

  1. Remove the console compartment door. Refer to Door Replacement - Console Compartment .
  2. Remove the fasteners (2) retaining the door plate (1) to the console bracket.
  3. Remove the door plate (1).
  4. Remove the latch from the door plate. Refer to Latch Replacement - Console Compartment Door .

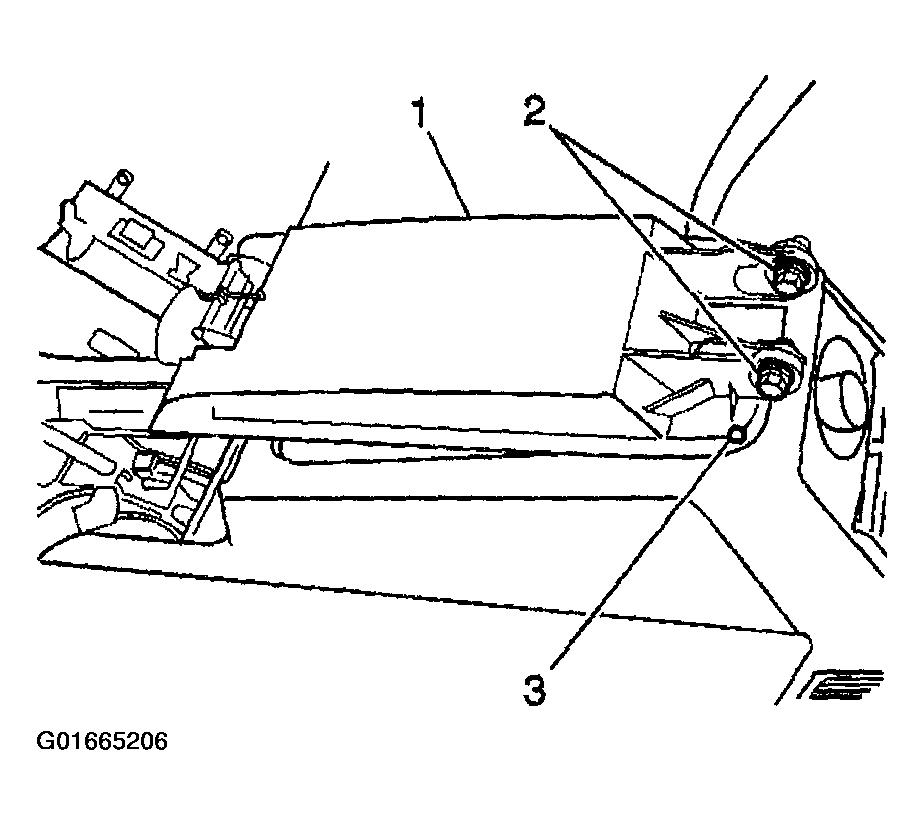

    Fig 1: Identifying Door Plate & Fasteners
    G01665206Courtesy of GENERAL MOTORS CORP.
