Removal Procedure

  1. Open the passenger door.
  2. Remove the fasteners (3) in order to disengage the insulator panel (1) from the lower instrument panel.

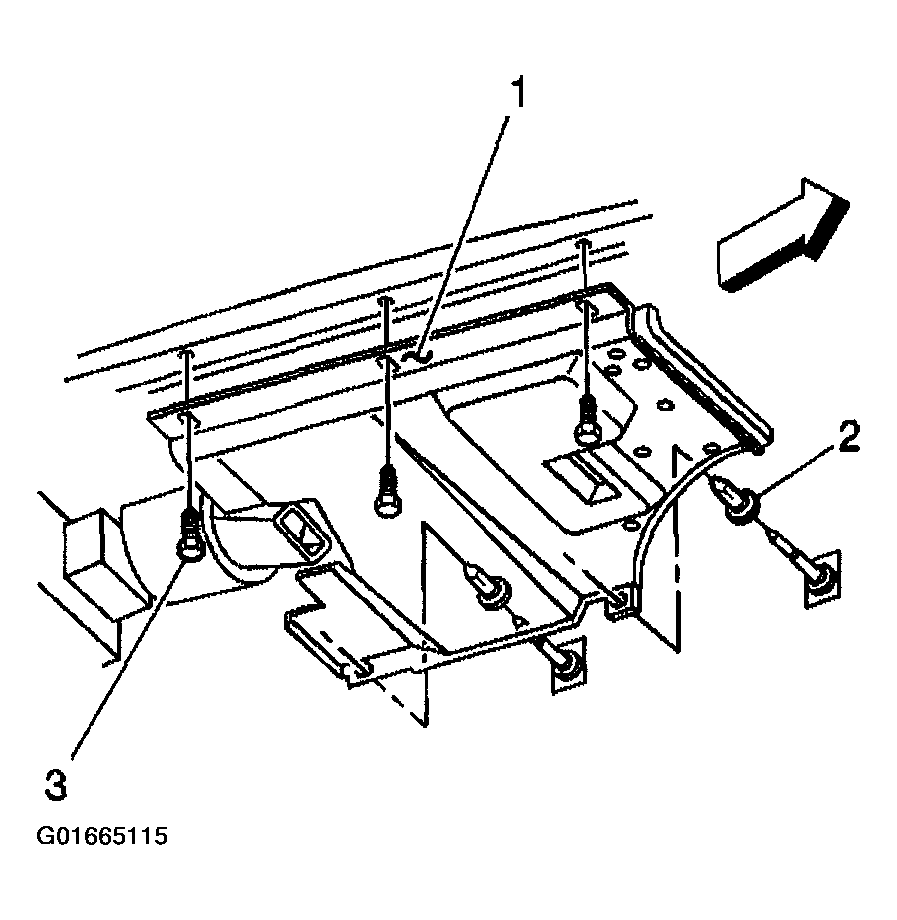

    Fig 1: Identifying Insulator Panel & Fasteners
    G01665115Courtesy of GENERAL MOTORS CORP.
  3. Lower the insulator panel and disconnect the electrical connector.
  4. Pull the insulator panel rearward in order to remove.

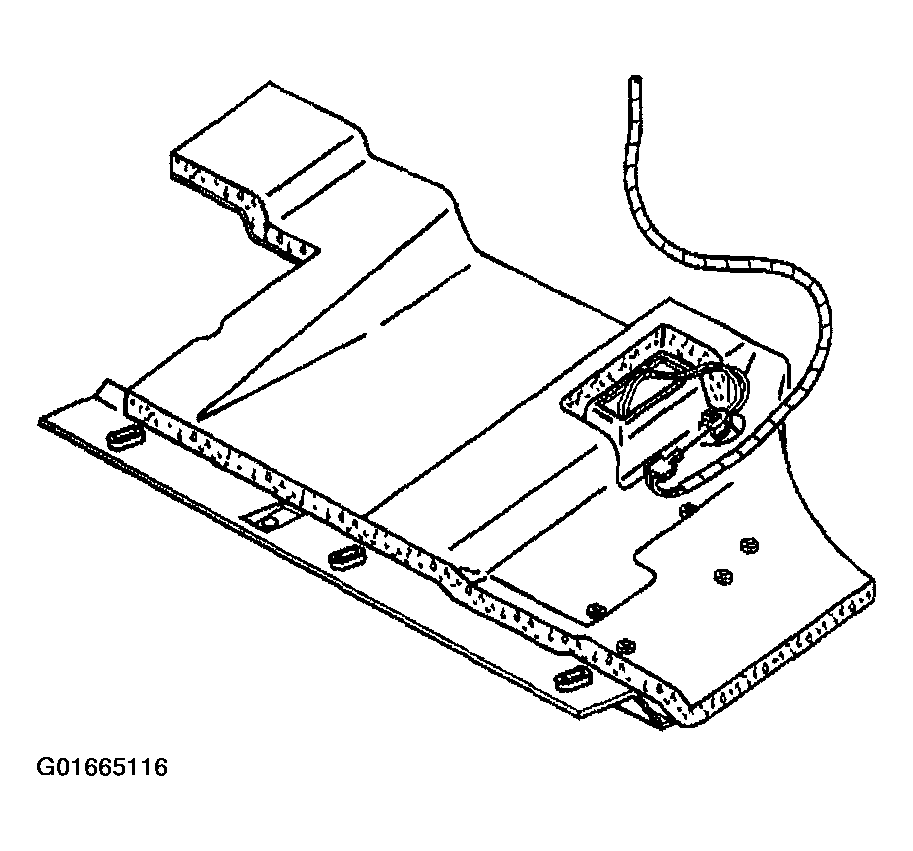

    Fig 2: View of Insulator Panel
    G01665116Courtesy of GENERAL MOTORS CORP.
