Removal Procedure

  1. Open the driver door.
  2. Remove the fasteners (2) in order to disengage the insulator (3) from the lower instrument panel.
  3. Disconnect the electrical connector.
  4. Slide the insulator panel rearward in order to clear the emergency brake bracket.
  5. Remove the insulator panel.

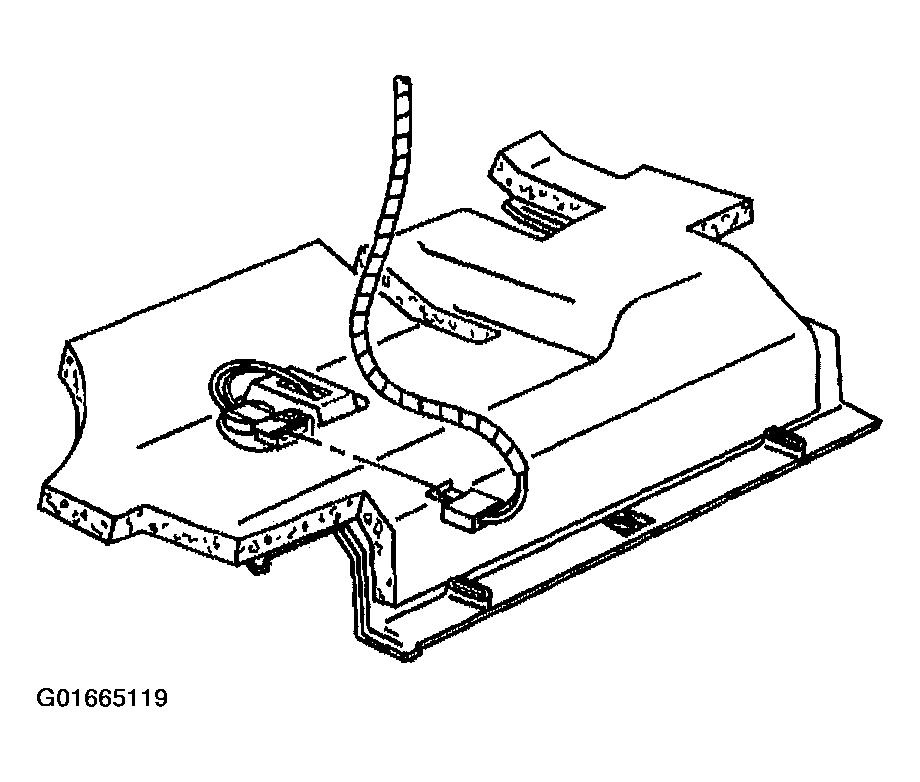

    Fig 1: View of Insulator Panel Electrical Connector
    G01665119Courtesy of GENERAL MOTORS CORP.
