Removal Procedure

  1. Remove the ashtray assembly. Refer to Ashtray Replacement .
  2. Open the ashtray lid.
  3. Remove the cigar lighter element.

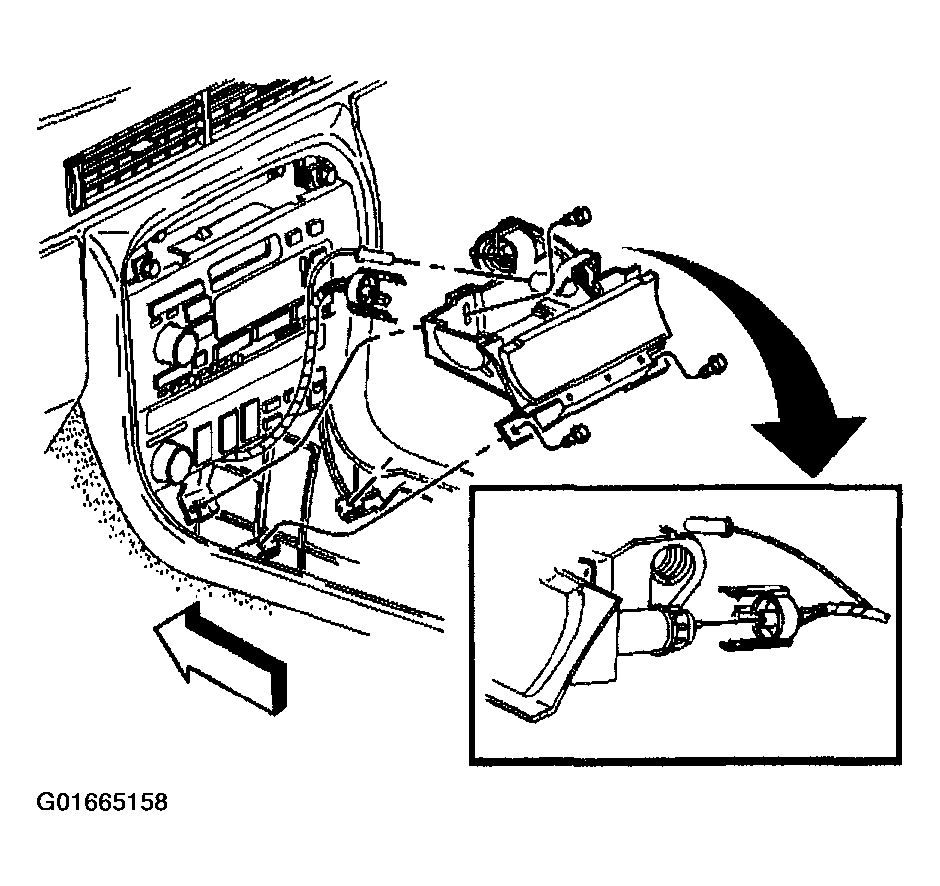

    Fig 1: View of Ashtray Assembly
    G01665158Courtesy of GENERAL MOTORS CORP.
  4. Remove the lamp socket (1).
  5. Twist the cigar lighter retainer (2) counter clock-wise in order to remove from the housing (3).
  6. Remove the cigar lighter housing from the ashtray.

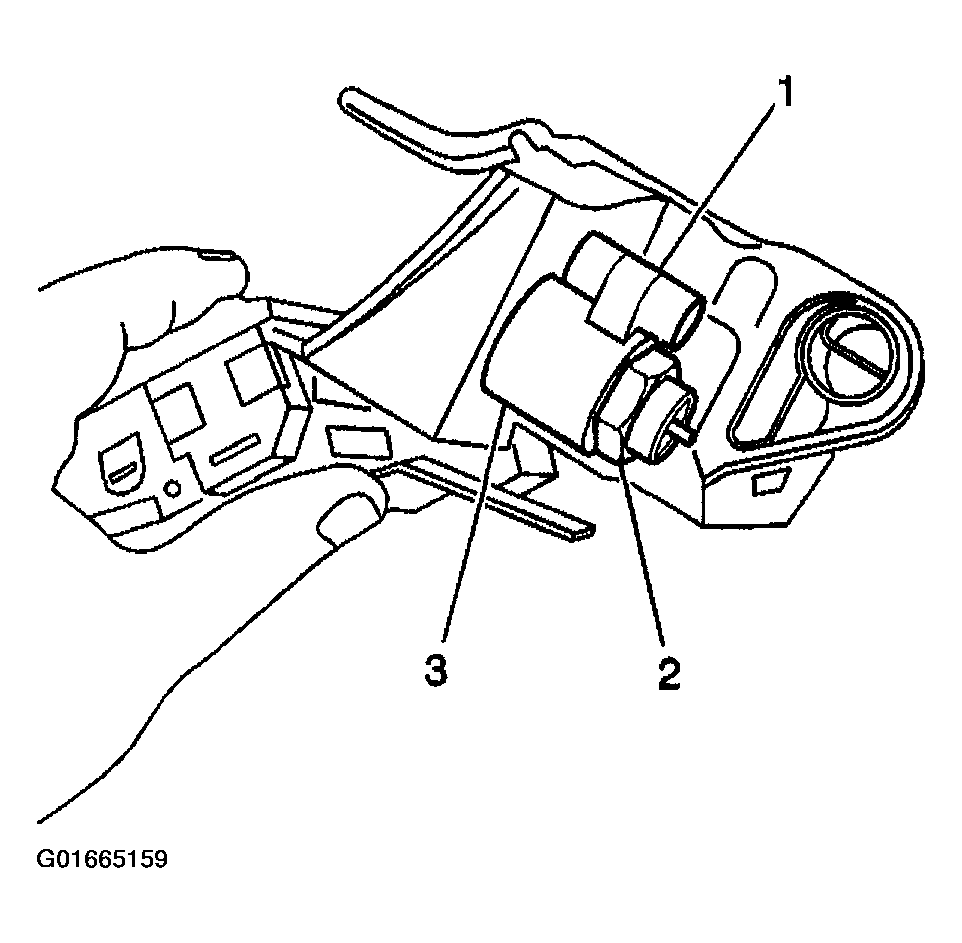

    Fig 2: Identifying Lamp Socket, Cigar Lighter Retainer, & Housing
    G01665159Courtesy of GENERAL MOTORS CORP.
