Installation Procedure

  1. Install the cigar lighter housing (3) into the ashtray assembly.
  2. Twist the retainer (2) onto the housing (3) in order to secure the housing to the ashtray.
  3. Install the lamp socket (1).

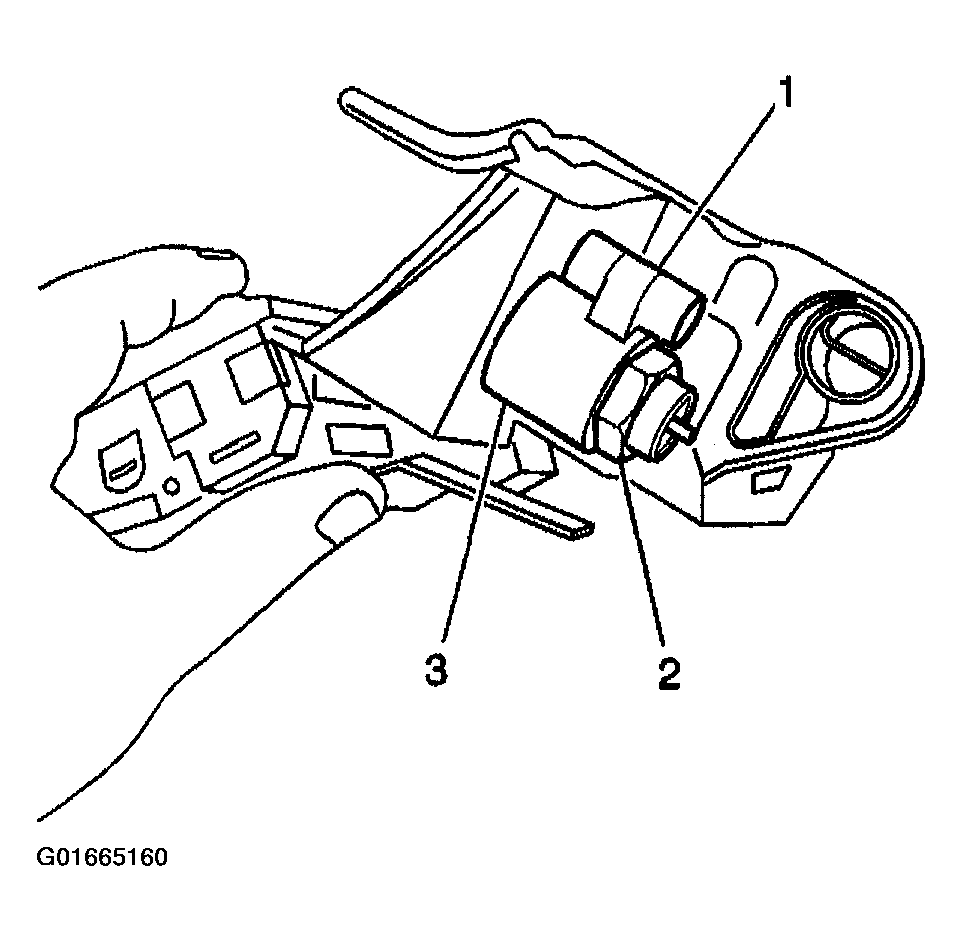

    Fig 1: Identifying Lamp Socket, Cigar Lighter Retainer, & Housing
    G01665160Courtesy of GENERAL MOTORS CORP.
  4. Install the cigar lighter element into the housing.
  5. Close the ashtray lid.
  6. Connect the electrical connectors.
  7. Install the ashtray assembly. Refer to Ashtray Replacement .

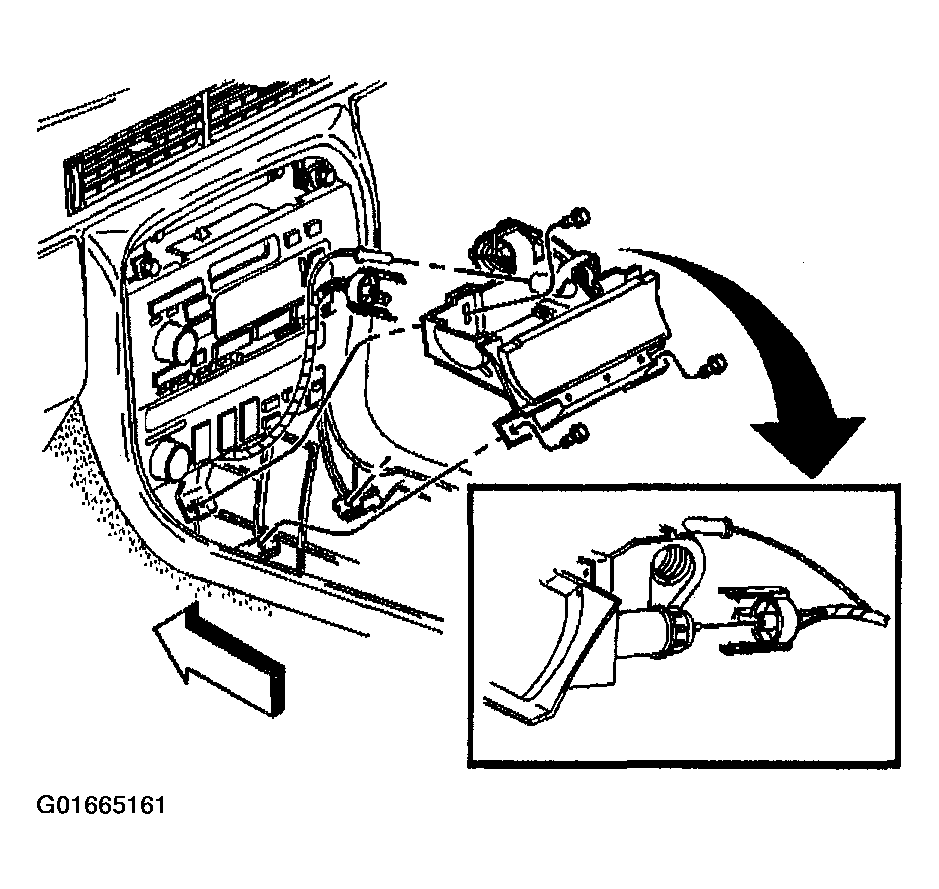

    Fig 2: Expanded View of Cigar Lighter Element
    G01665161Courtesy of GENERAL MOTORS CORP.
