Removal Procedure

  1. Remove the console center trim plate. Refer to Trim Plate Replacement - Console Front .
  2. Remove the two lower fasteners (1) from the ashtray bracket assembly.
  3. Pull the ashtray box out.
  4. Remove the one lower hidden fastener.
  5. Disconnect the electrical connector from the cigar lighter.
  6. Remove the ashtray assembly.

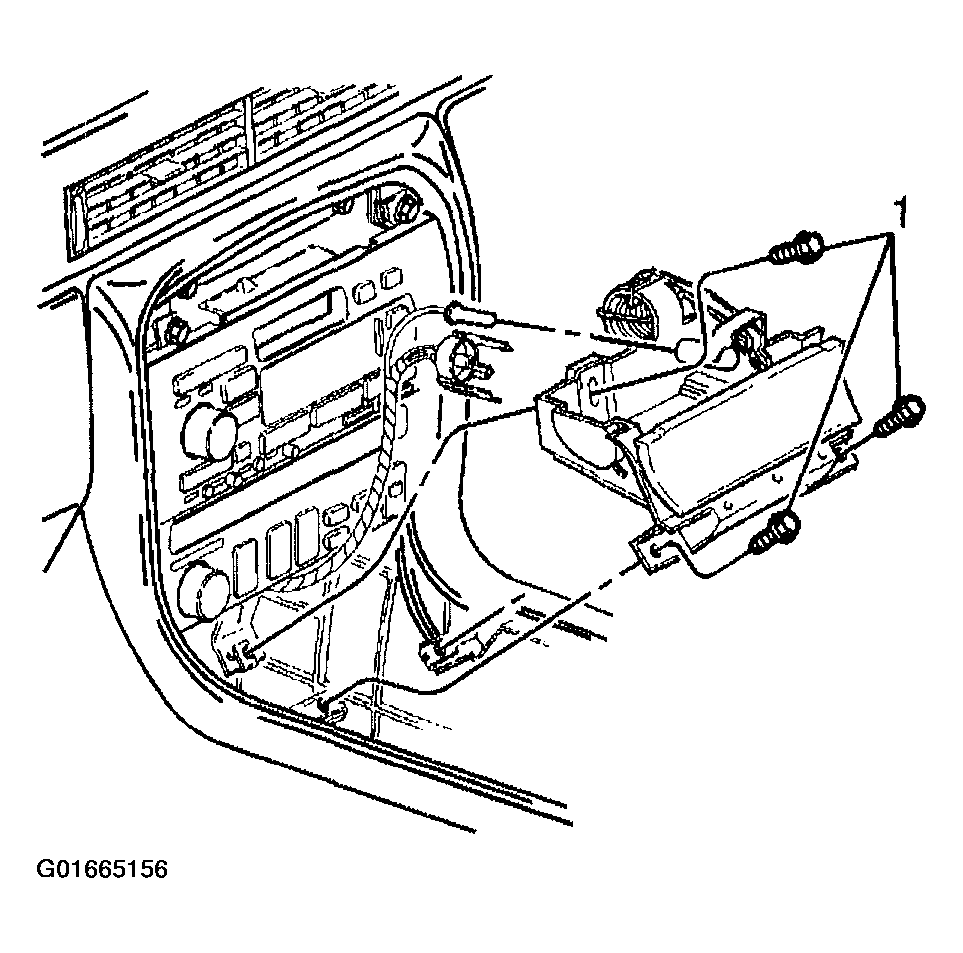

    Fig 1: Identifying Ashtray Bracket Assembly Two Lower Fasteners
    G01665156Courtesy of GENERAL MOTORS CORP.
