Scan Tool Data List

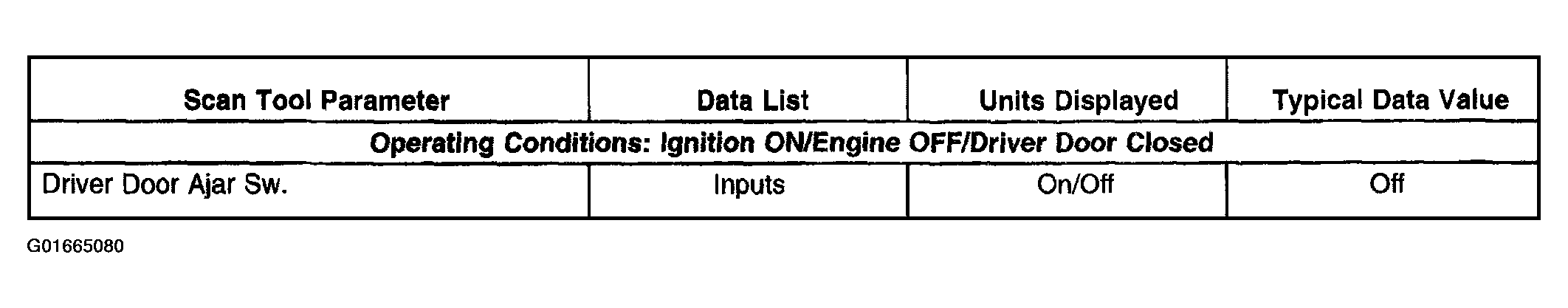

Fig 1: Body Control Module (BCM) Scan Tool Data List
G01665080Courtesy of GENERAL MOTORS CORP.

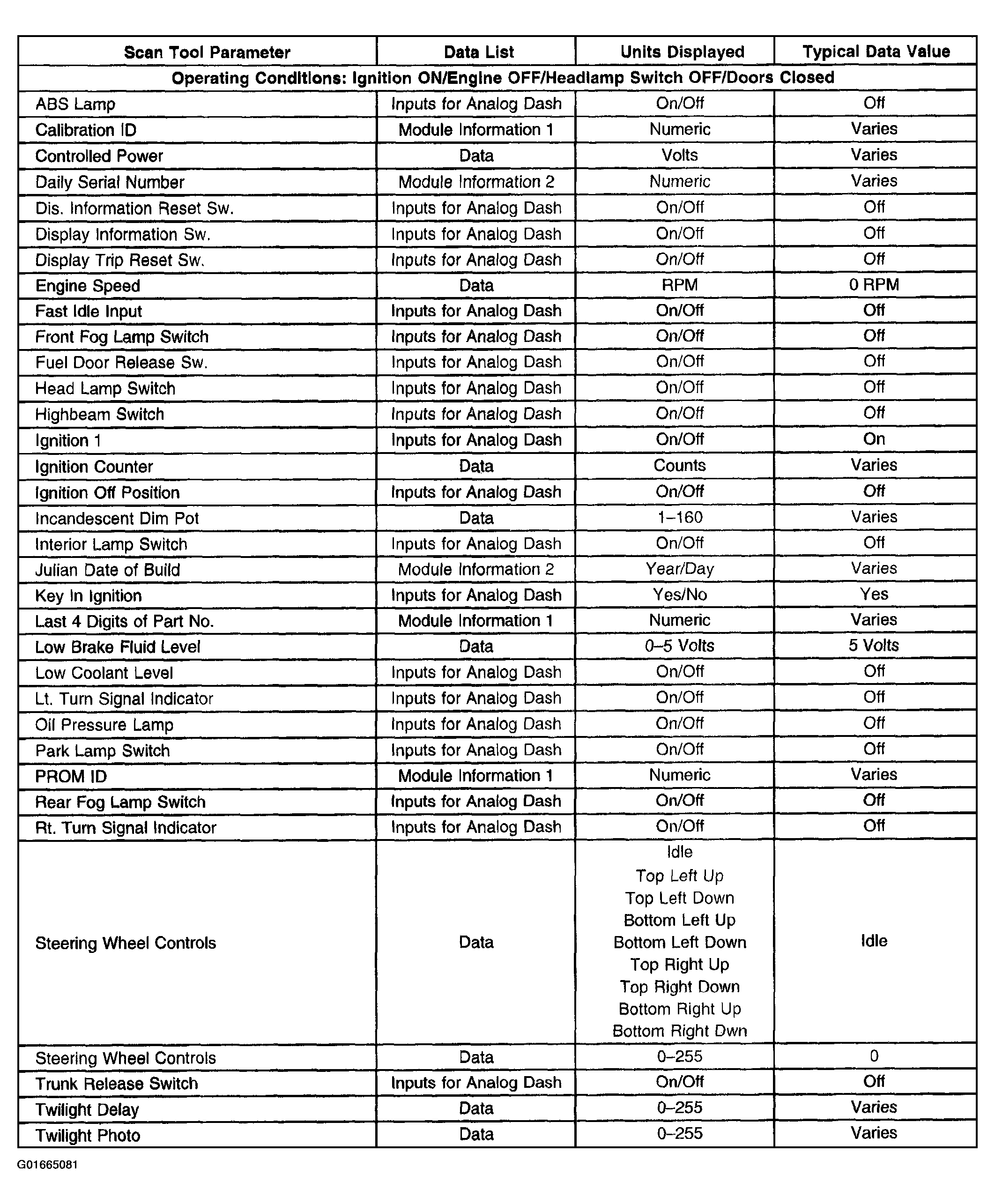

Fig 2: Instrument Panel Cluster (IPC) Scan Tool Data List (1 of 2)
G01665081Courtesy of GENERAL MOTORS CORP.

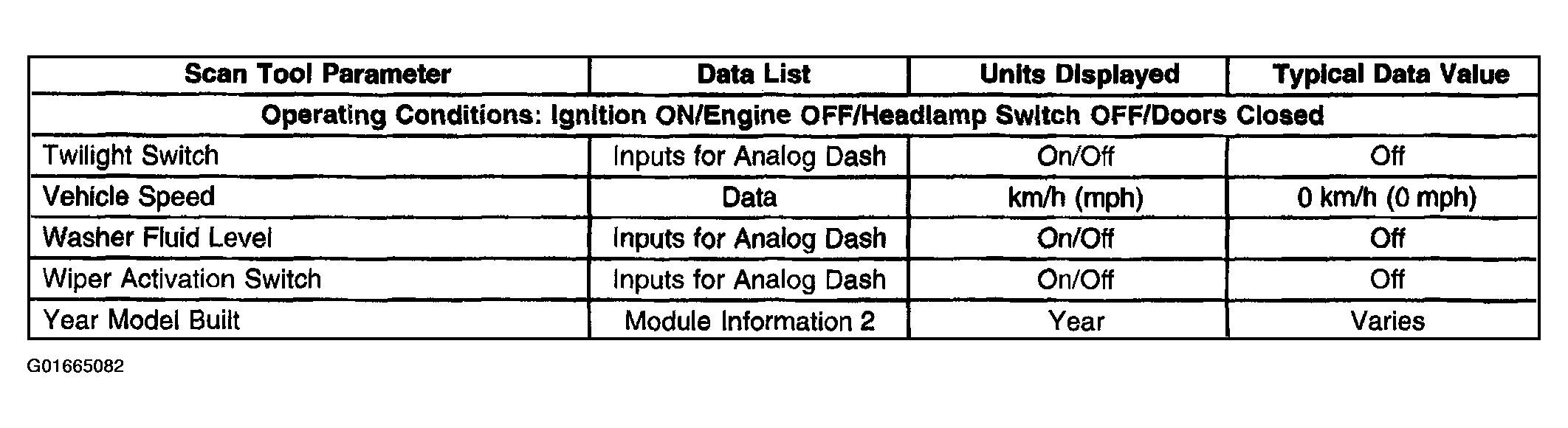

Fig 3: Instrument Panel Cluster (IPC) Scan Tool Data List (2 of 2)
G01665082Courtesy of GENERAL MOTORS CORP.

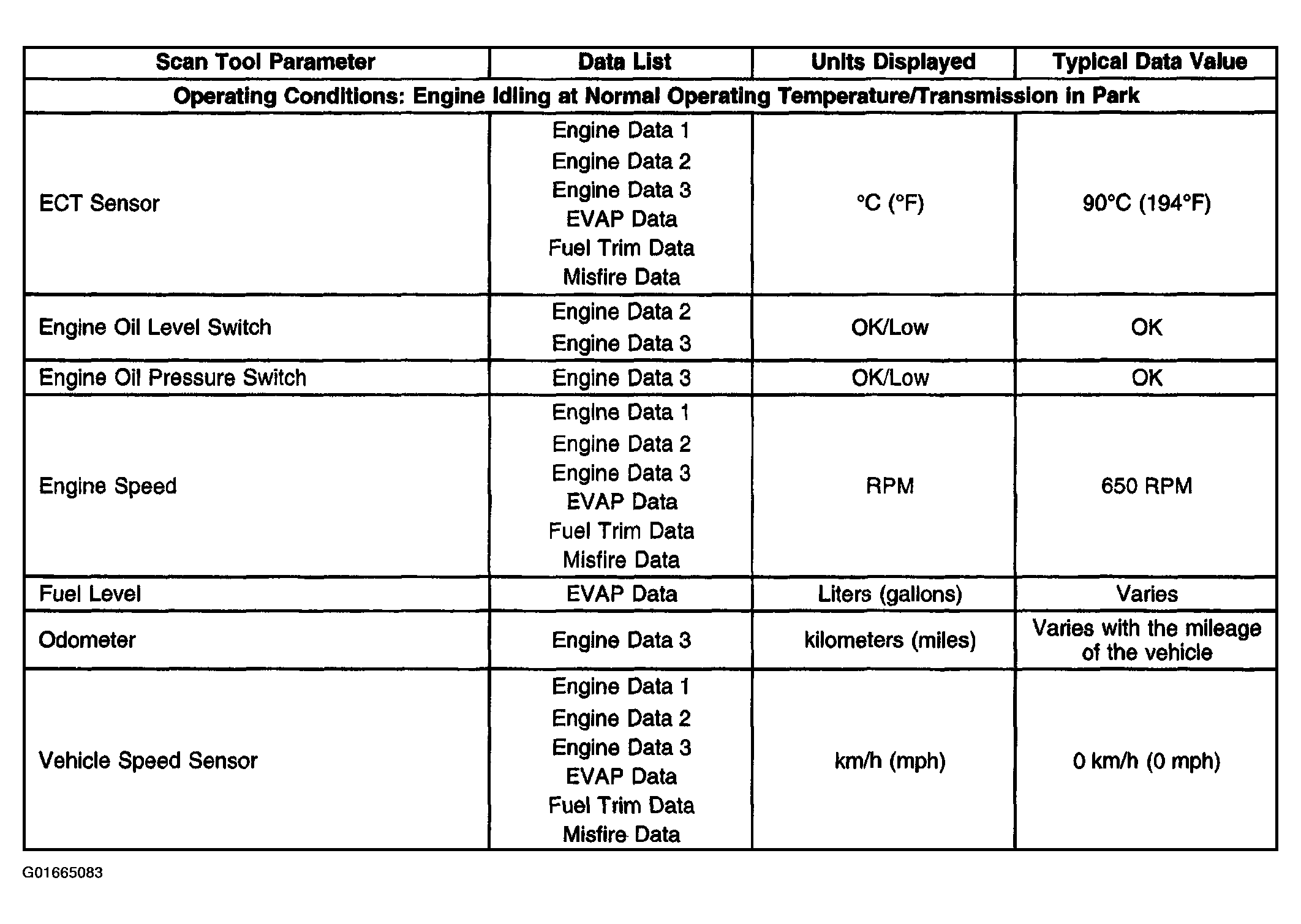

Fig 4: Powertrain Control Module (PCM) Scan Tool Data List
G01665083Courtesy of GENERAL MOTORS CORP.
