Instrument Panel, Gages, and Console Connector End Views

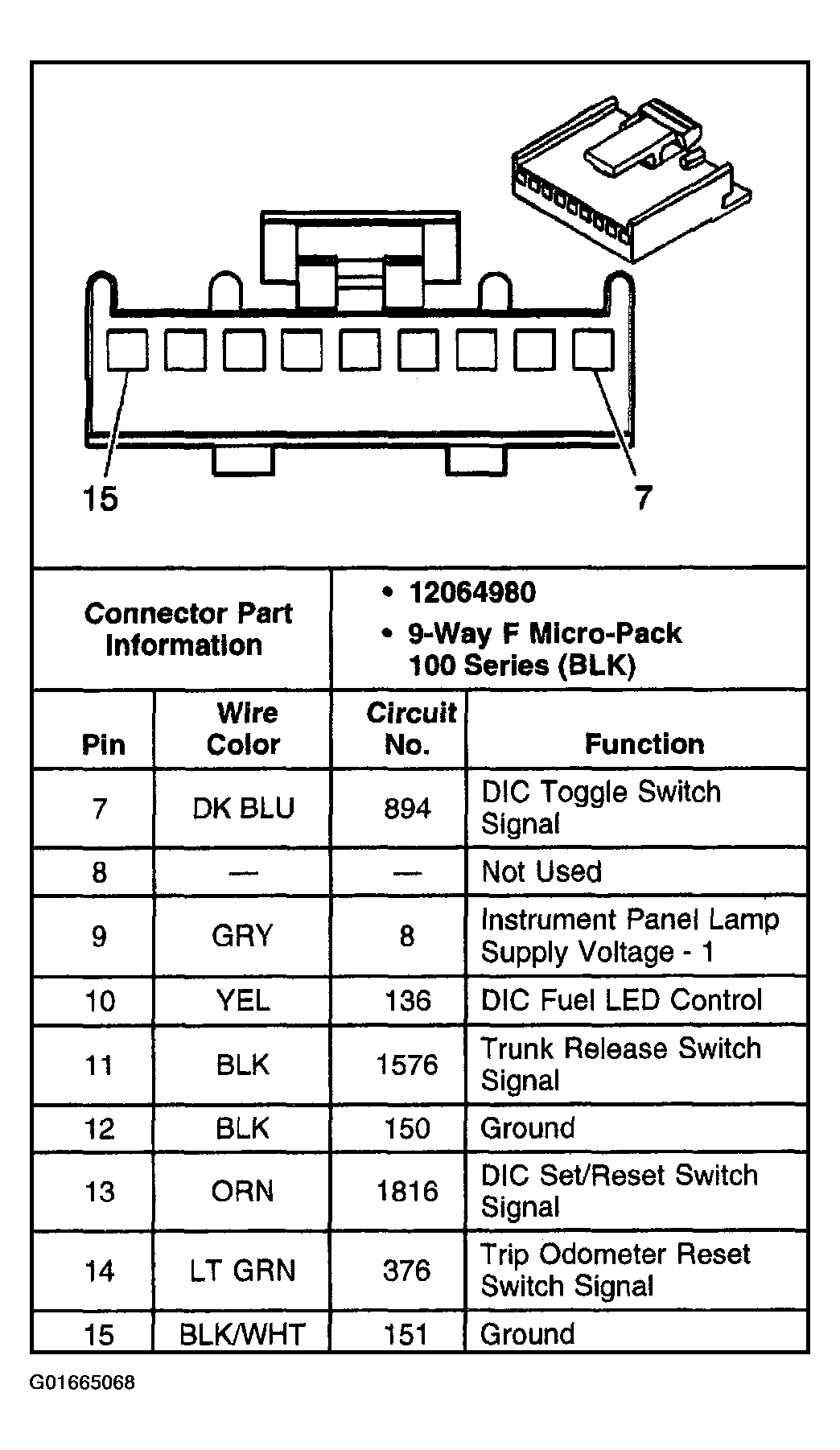

Fig 1: Driver Information Center (DIC) Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

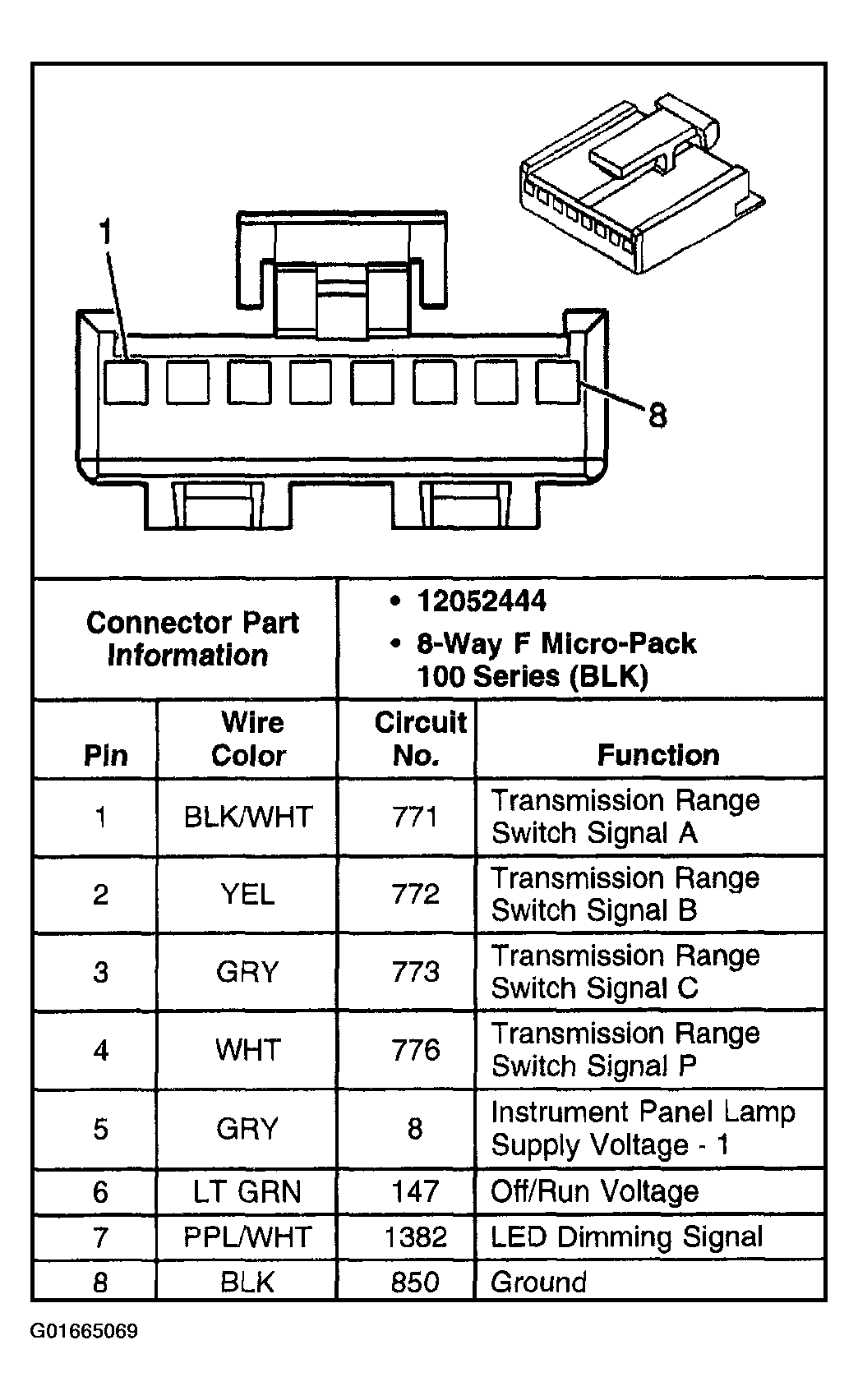

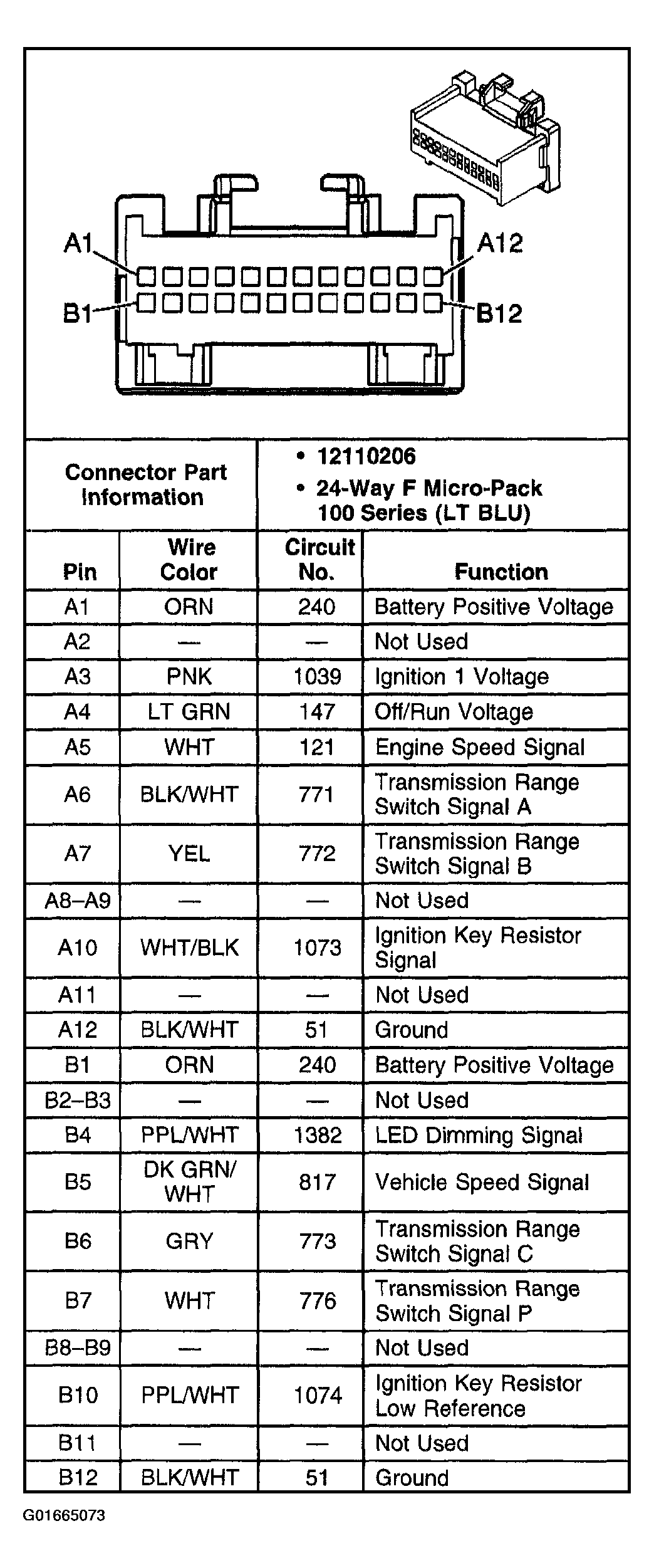

Fig 2: Electronic PRNDL Connector End View

Courtesy of GENERAL MOTORS CORP.

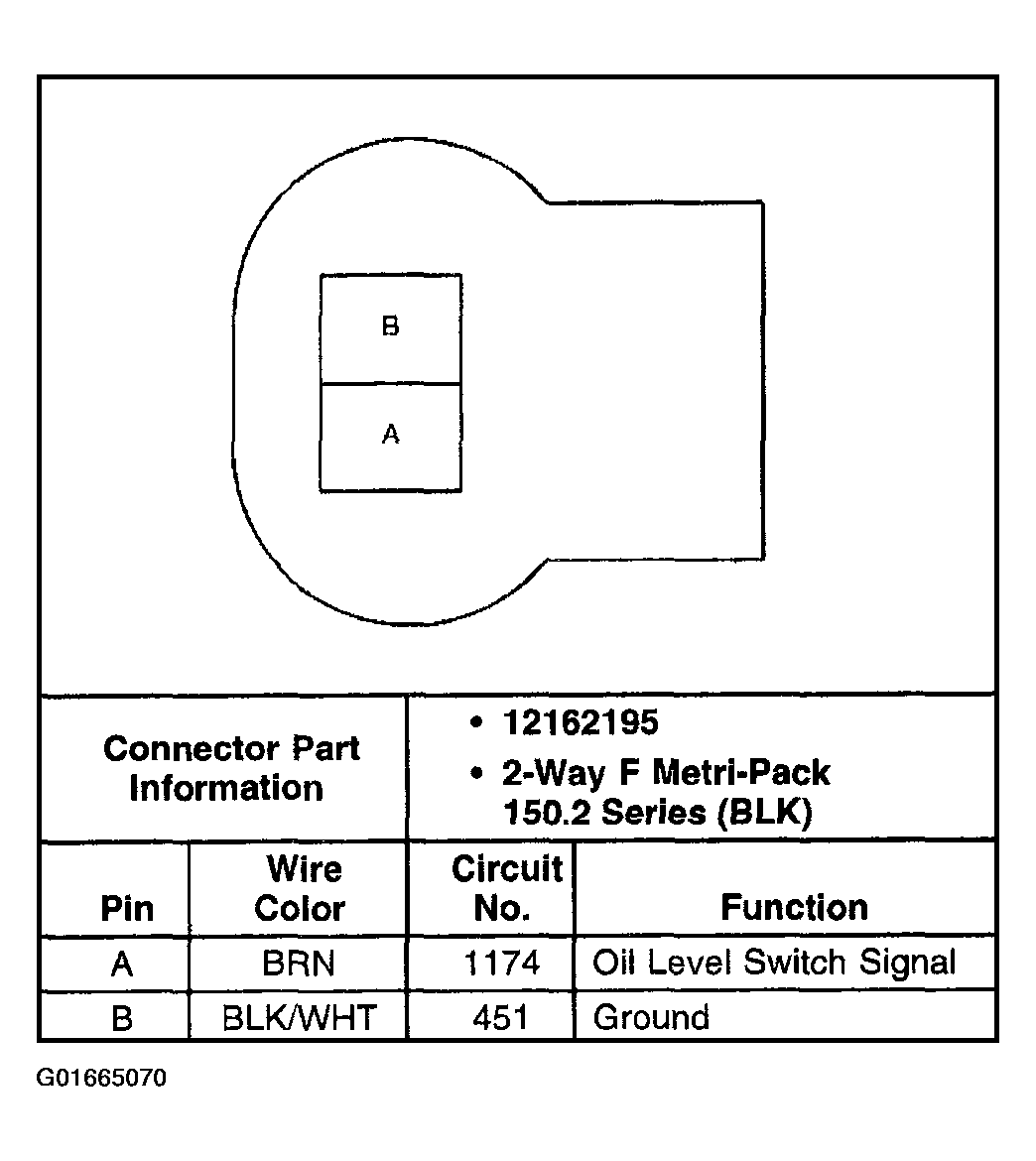

Fig 3: Engine Oil Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

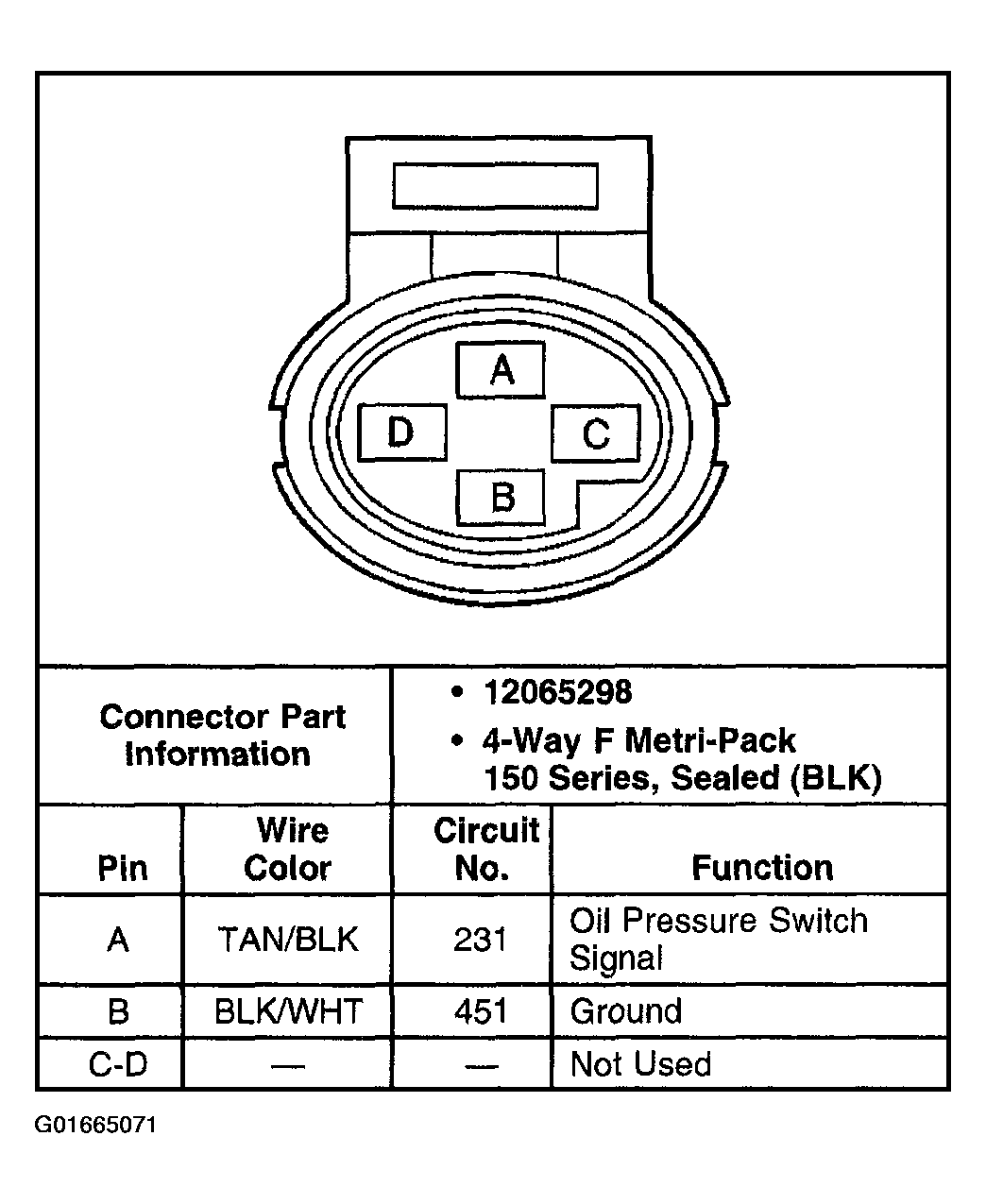

Fig 4: Engine Oil Pressure (EOP) Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

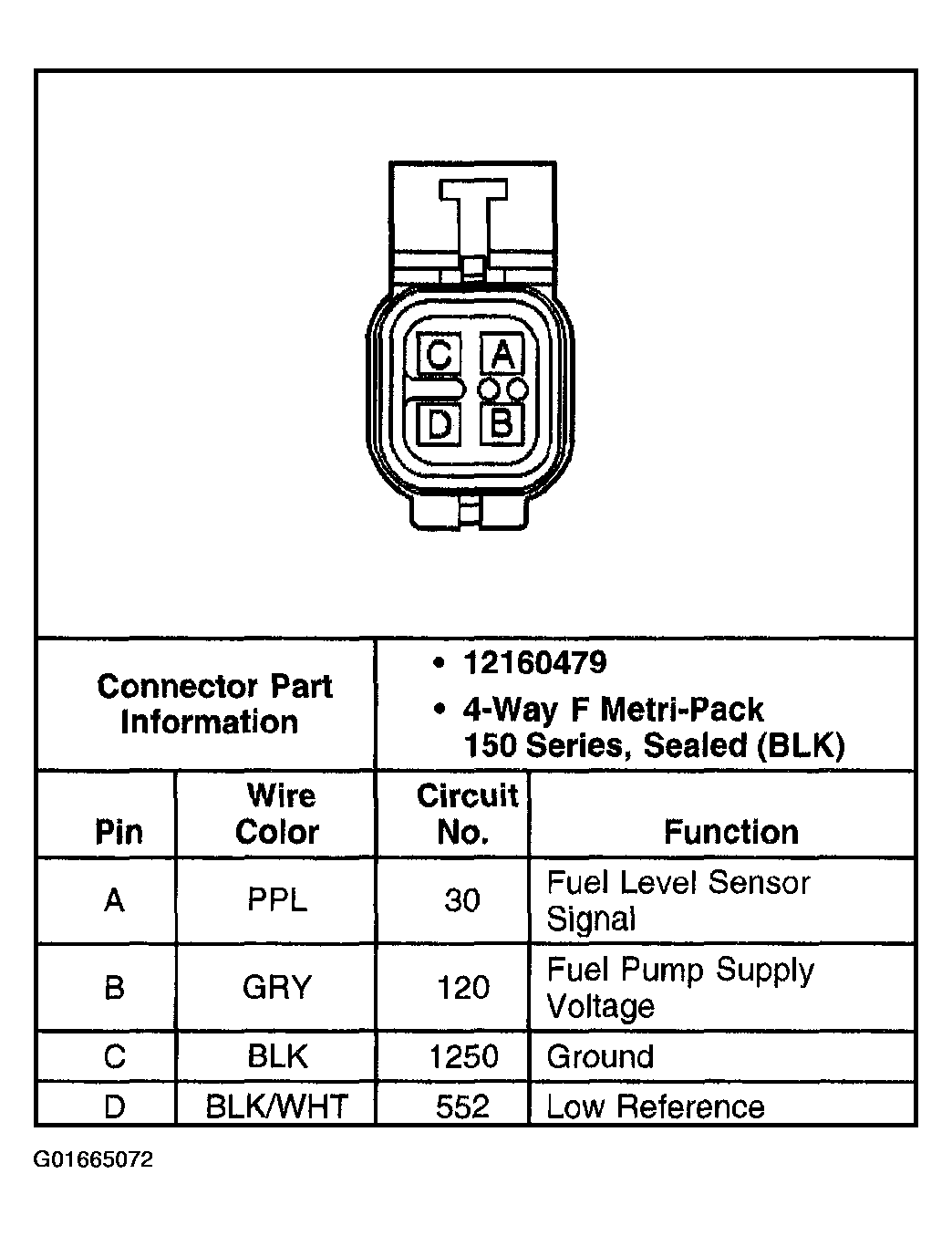

Fig 5: Fuel Pump and Sender Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.

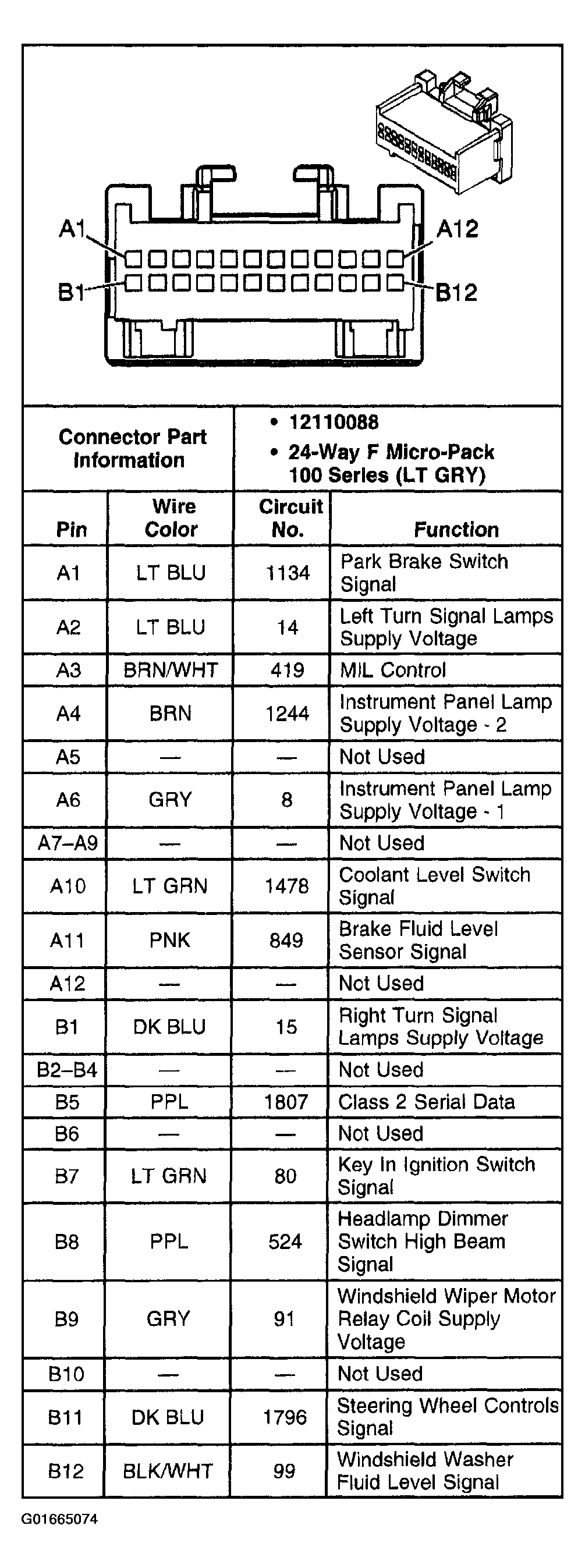

Fig 6: Instrument Panel Cluster (IPC) C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

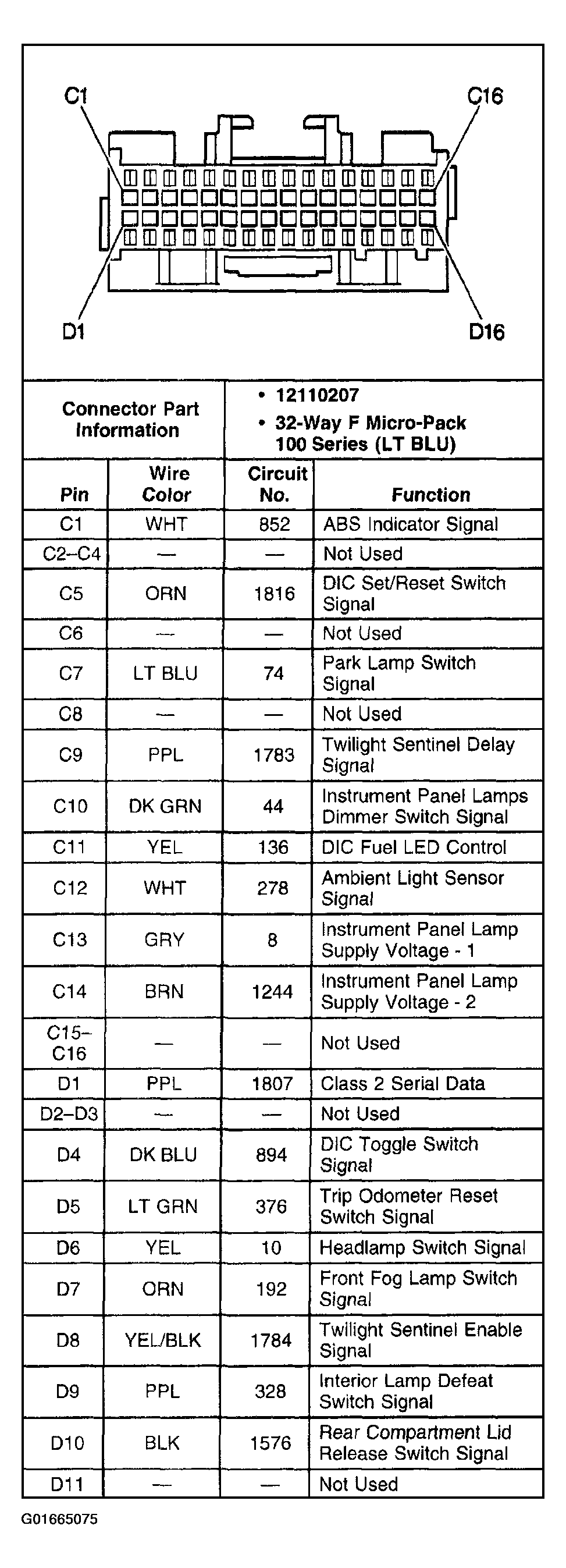

Fig 7: Instrument Panel Cluster (IPC) C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

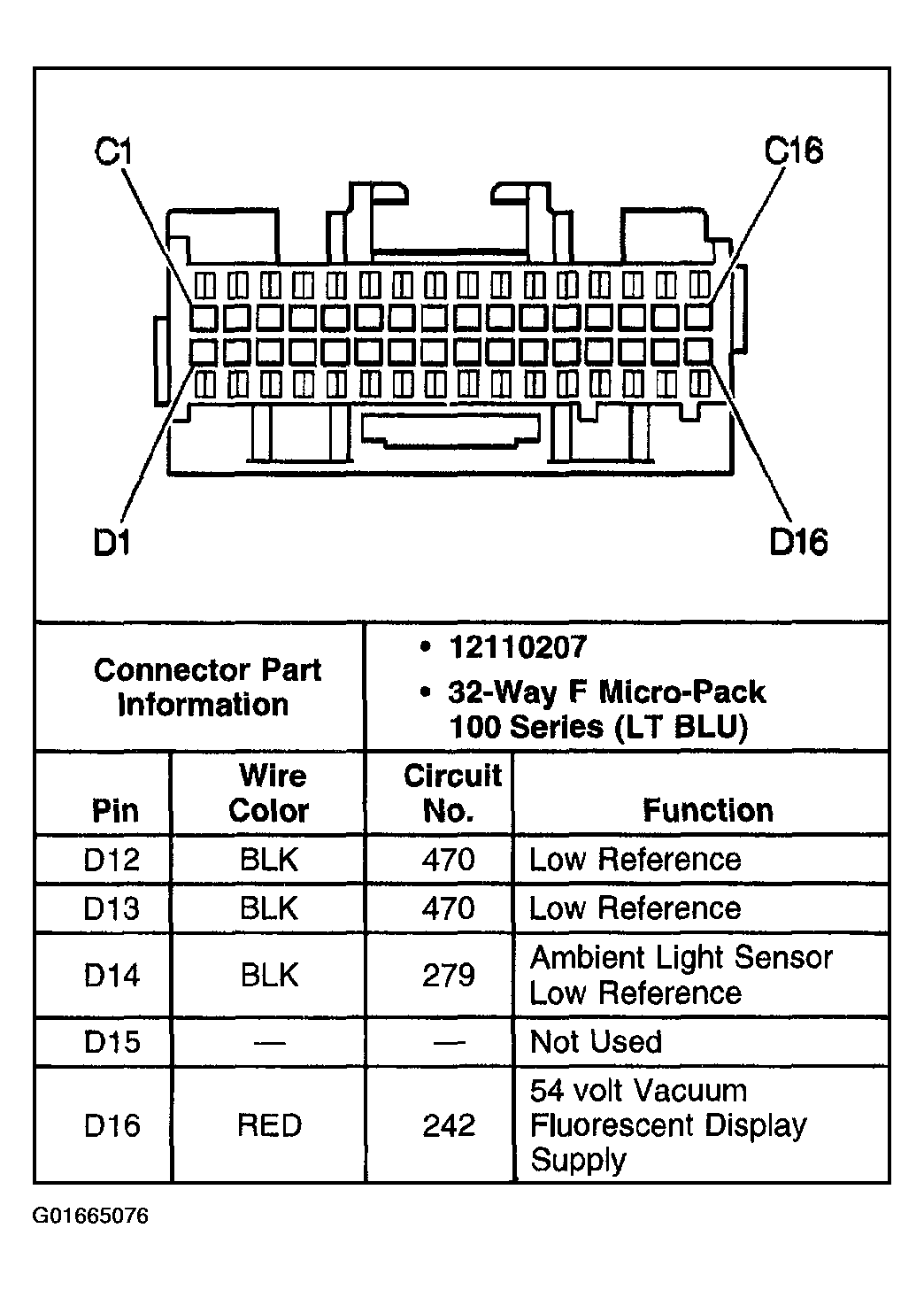

Fig 8: Instrument Panel Cluster (IPC) C3 Connector End View (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Instrument Panel Cluster (IPC) C3 Connector End View (2 of 2)

Courtesy of GENERAL MOTORS CORP.
