Instrument Panel, Gages, and Console Component Views

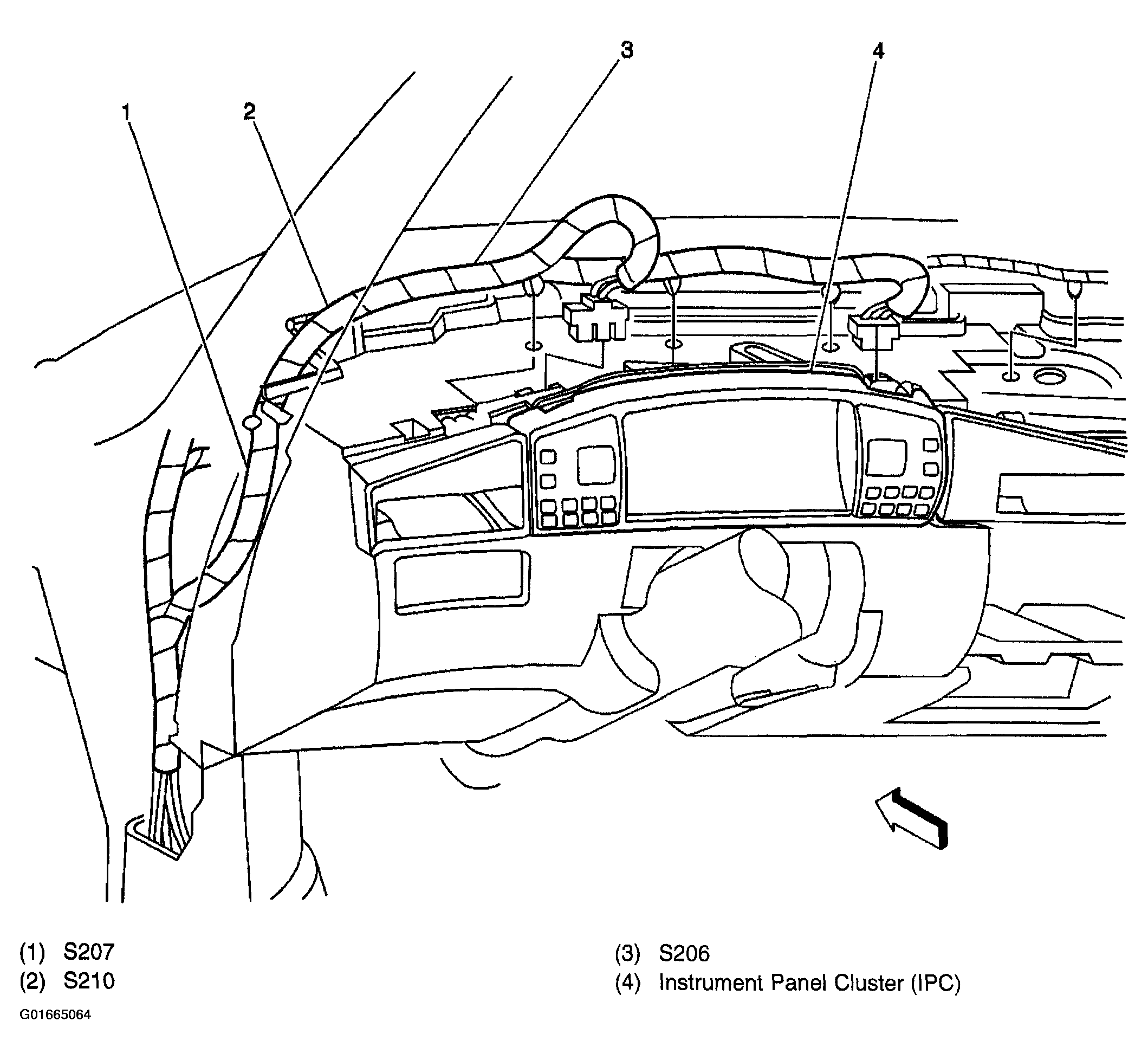

Fig 1: Instrument Panel Cluster (IPC), Below Upper Pad Component View
G01665064Courtesy of GENERAL MOTORS CORP.

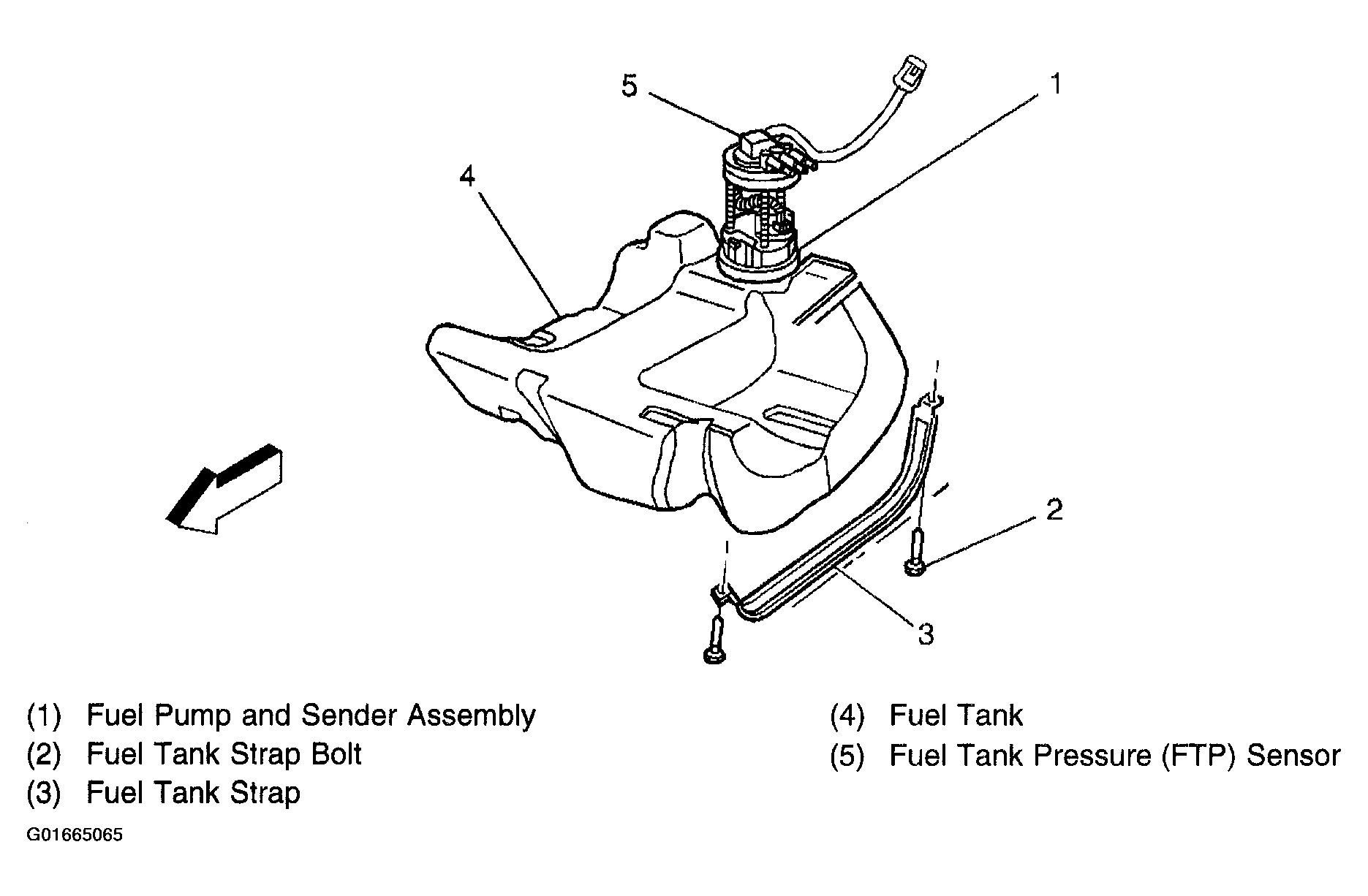

Fig 2: Fuel Tank Pressure (FTP) Sensor, Fuel Pump & Sender Assembly Component View
G01665065Courtesy of GENERAL MOTORS CORP.

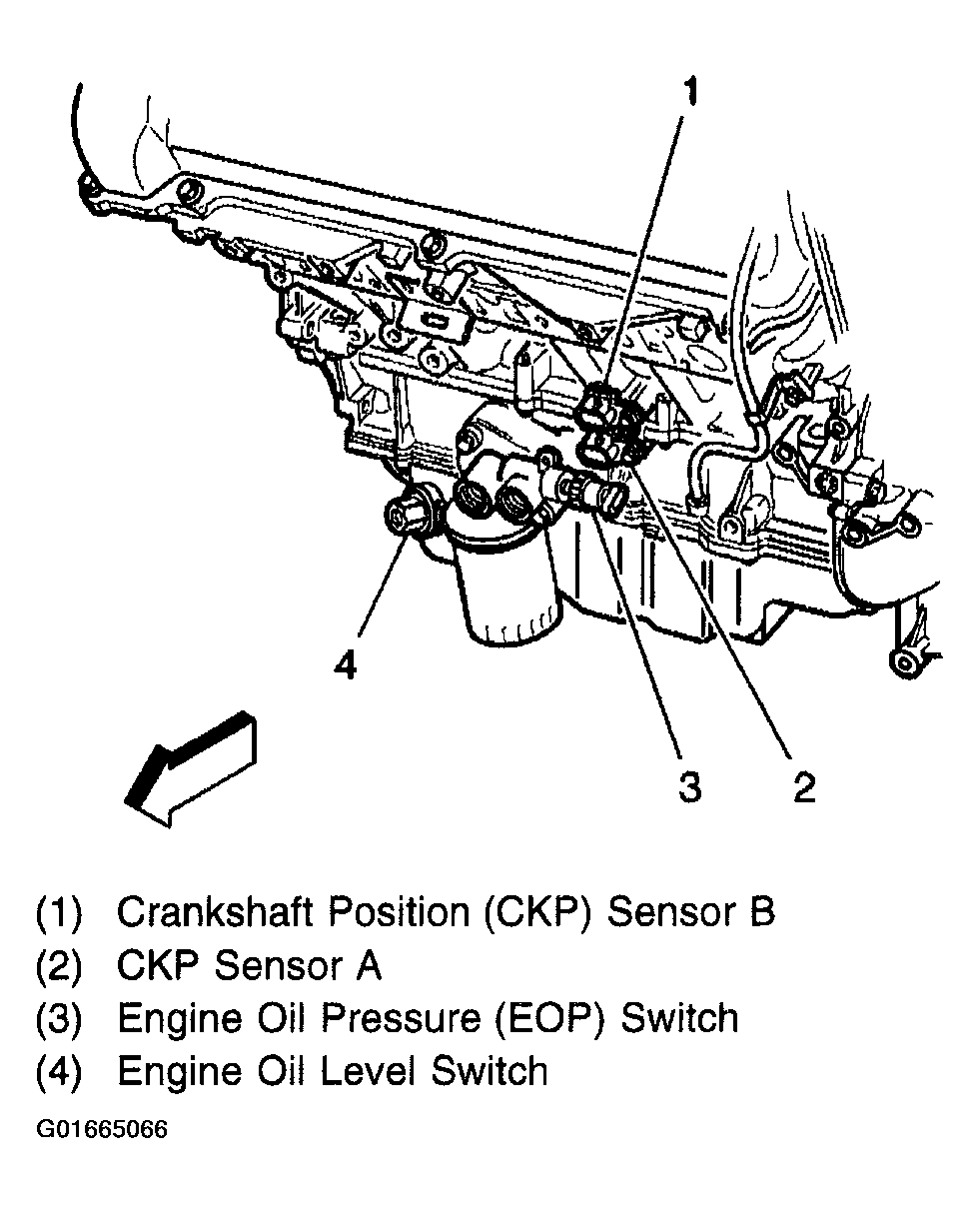

Fig 3: CKP B, CKP A, Engine Oil Pressure (EOP) Switch, & Engine Oil Level Switch Component View
G01665066Courtesy of GENERAL MOTORS CORP.

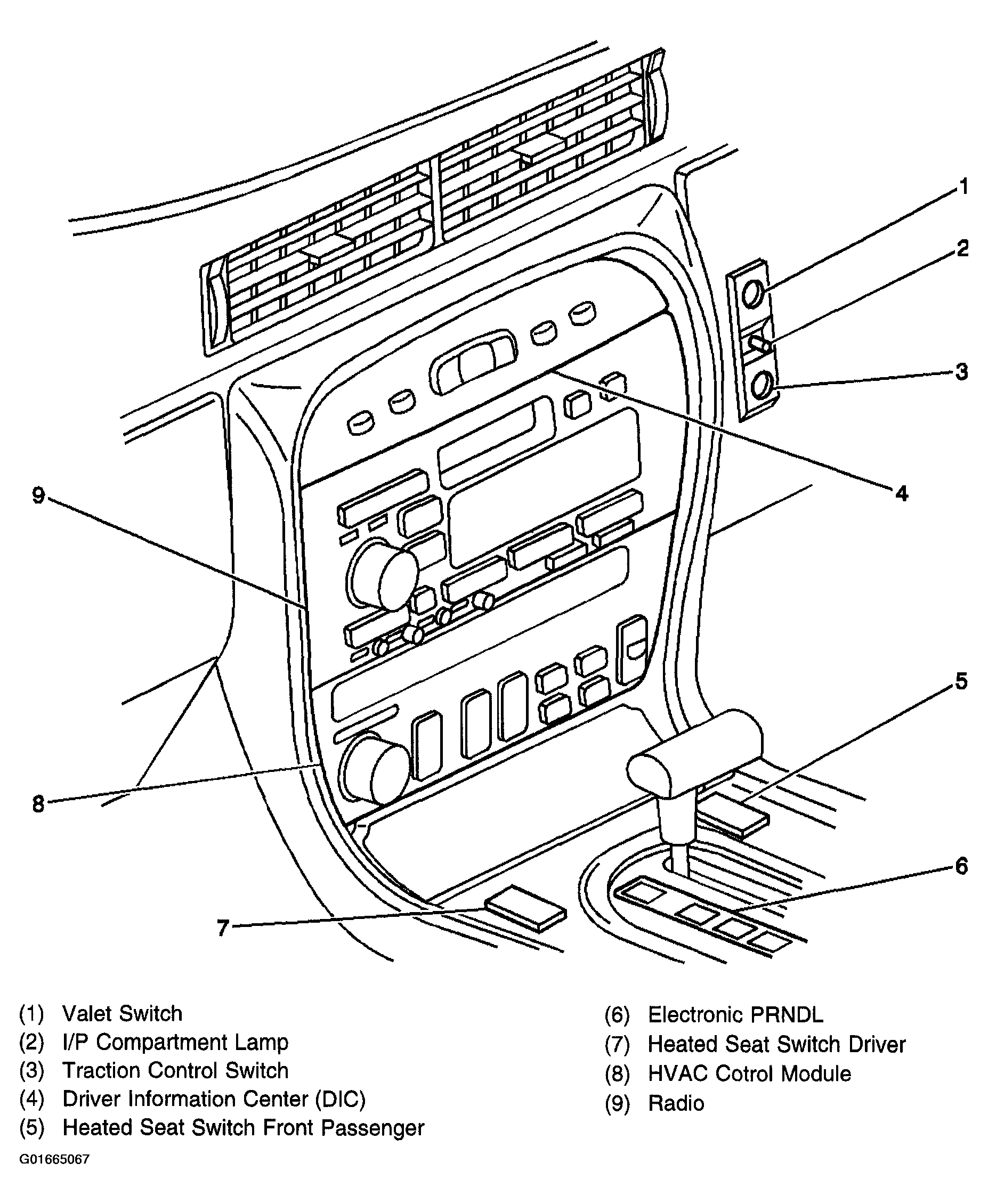

Fig 4: Passenger Compartment, in Center of I/P Component View
G01665067Courtesy of GENERAL MOTORS CORP.
