Home >> Cadillac >> 2002 >> DeVille DHS >> Repair and Diagnosis >> Suspension >> Front Suspension >> Suspension - General Diagnosis >> Specifications >> Trim Height Specifications

Trim Height Specifications

NOTE:
  • FE1  - Suspension System Soft Ride
  • FE3  - Suspension System Sport
  • F45  - Chassis Continuously Variable Real Time Damping

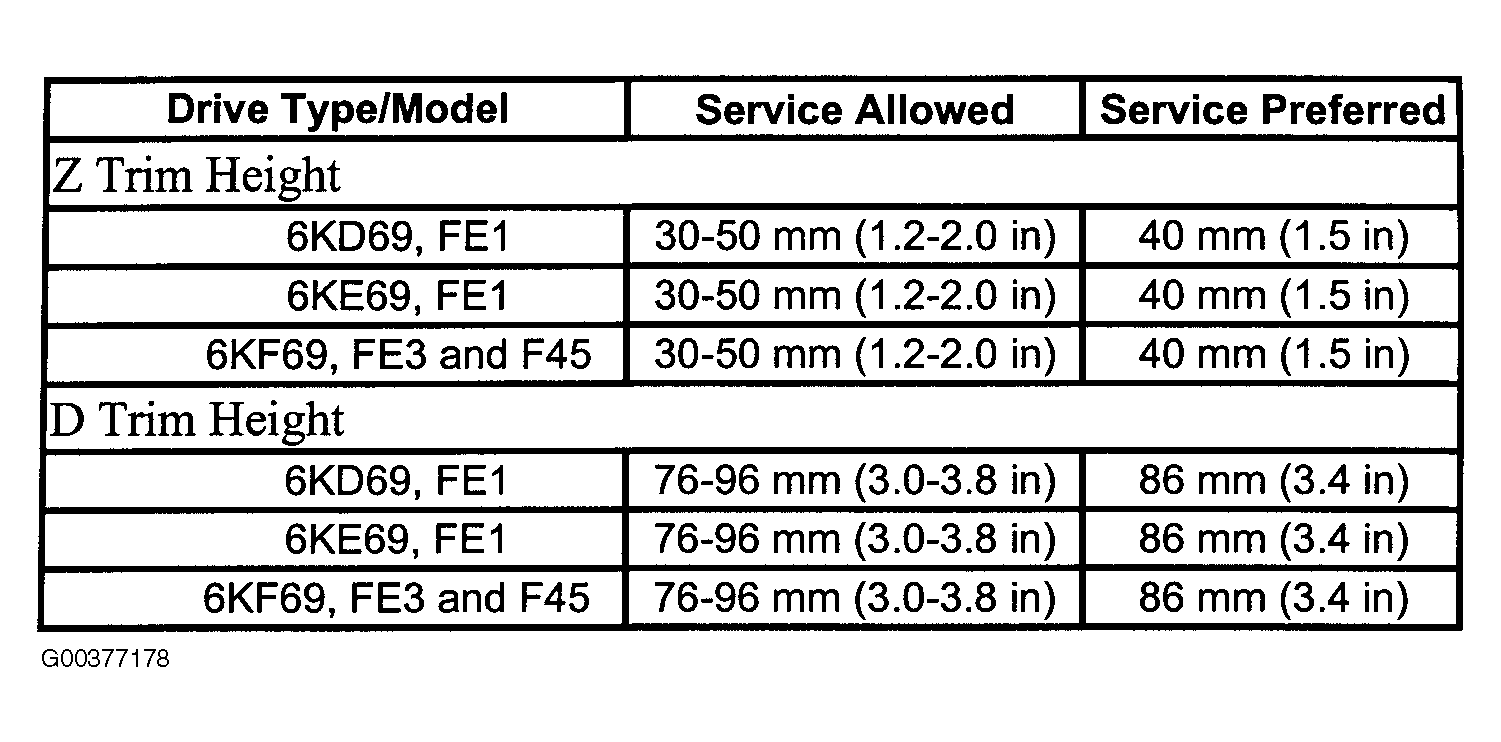

Fig 1: Trim Height Specifications
G00377178Courtesy of GENERAL MOTORS CORP.
