Park Brake Warning Lamp Switch: Removal

  1. Remove the left closeout/insulator. Remove the left knee bolster.
  2. Remove the left front carpet retainer.
  3. Remove the park brake pedal assembly mounting nuts. Position the park brake pedal assembly away from the mounting studs.
  4. Disconnect the electrical connector from the park brake warning lamp switch. See Fig 1 .
  5. Remove park brake warning lamp switch mounting bolt. Remove park brake warning lamp switch.

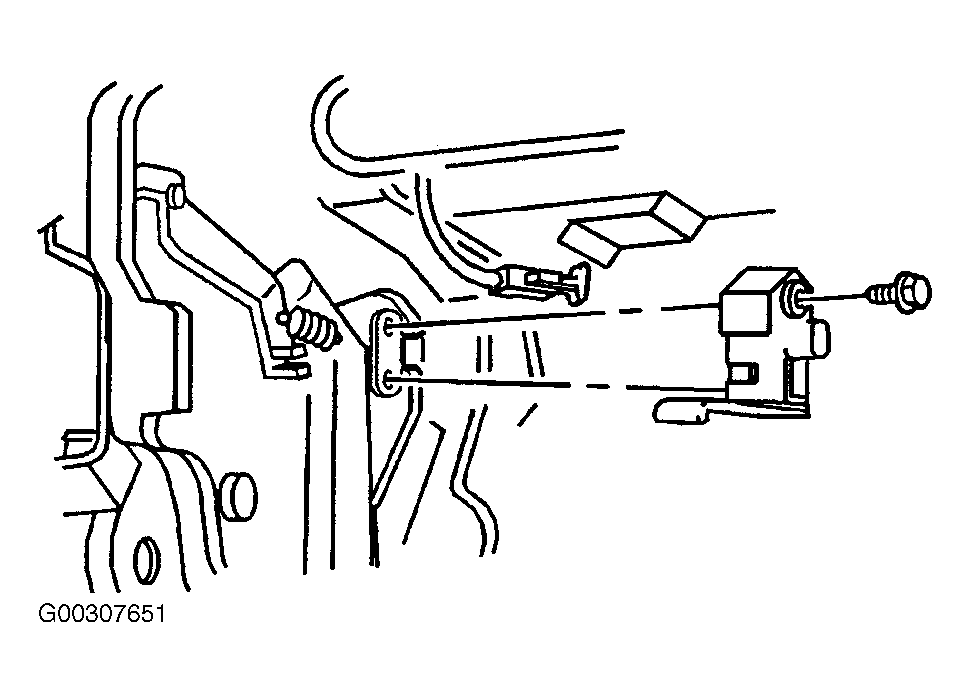

Fig 1: Identifying The Park Brake Warning Lamp Switch
G00307651Courtesy of GENERAL MOTORS CORP.
