Schematic and Routing Diagrams

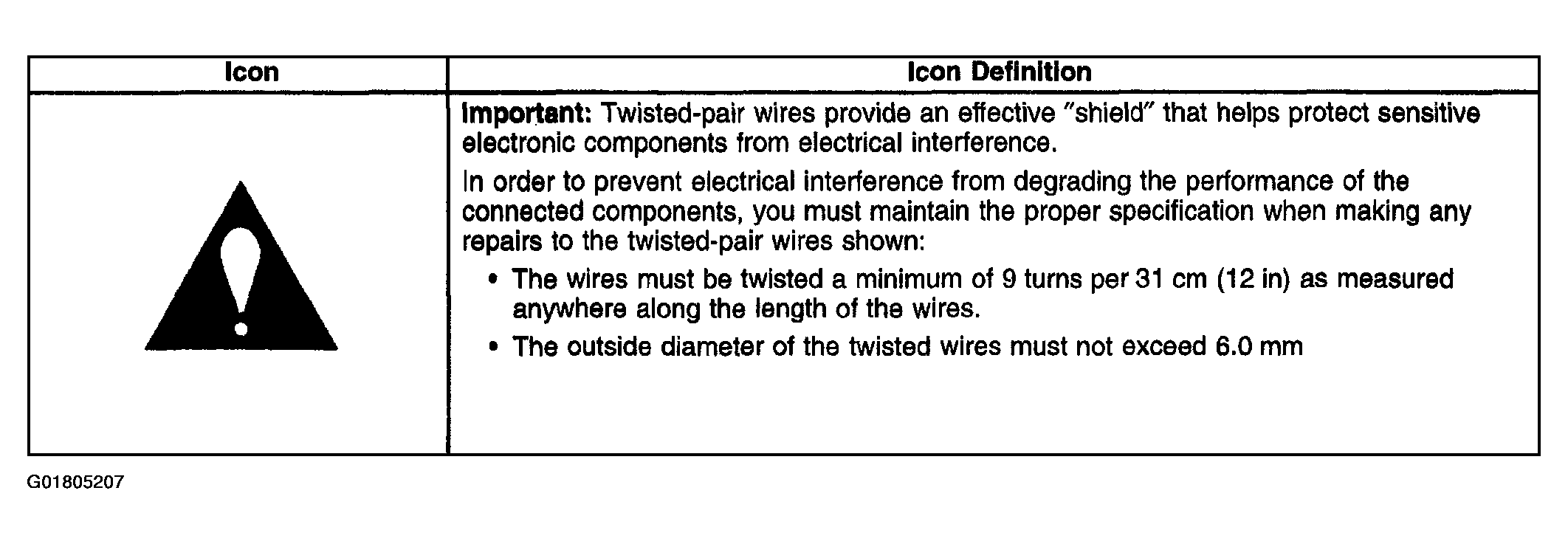

Fig 1: Instrument Panel, Gages, & Console Schematic Icons

Courtesy of GENERAL MOTORS CORP.

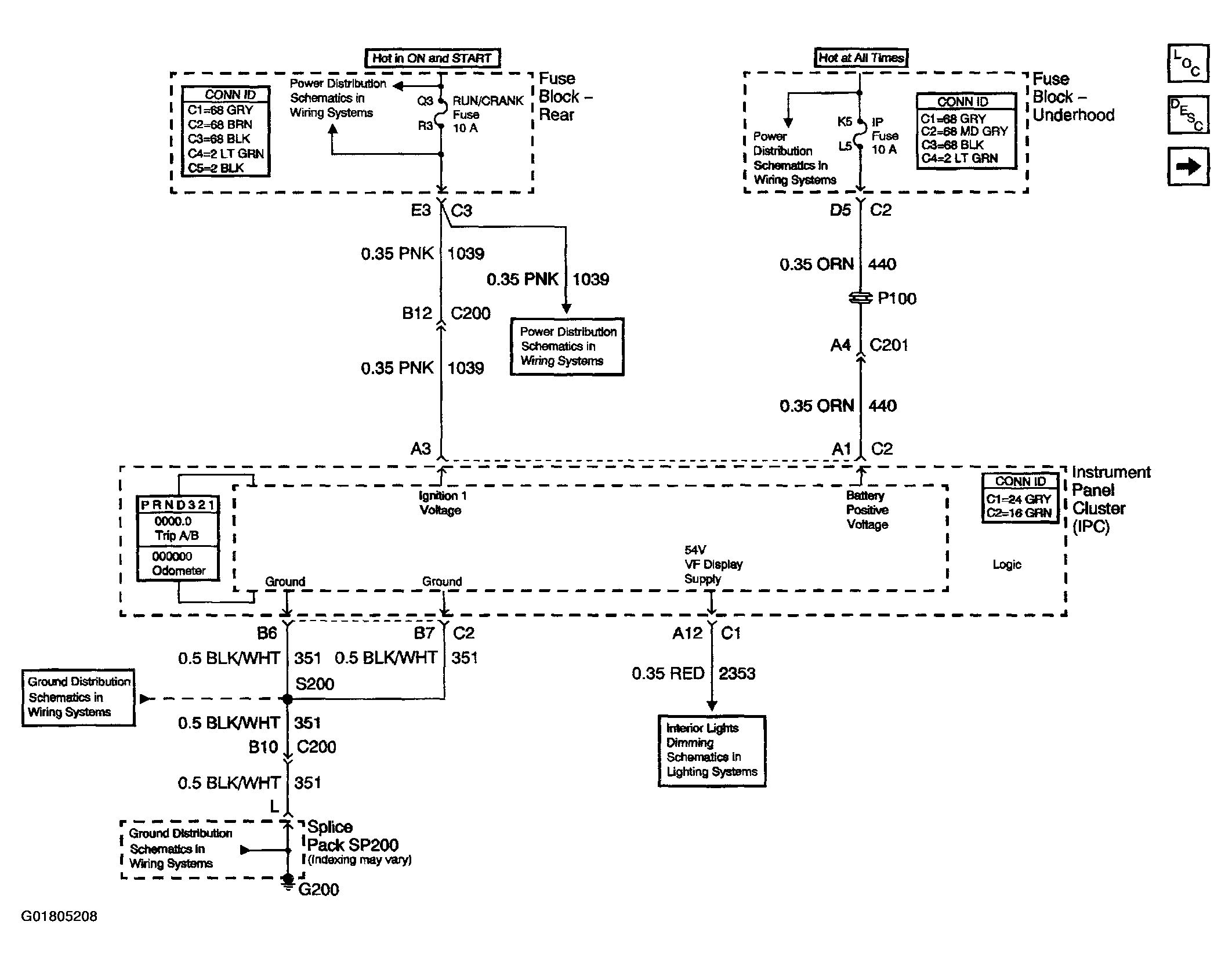

Fig 2: Instrument Cluster Schematics (Power, Ground, Class 2 & 54V, VF Display Supply)

Courtesy of GENERAL MOTORS CORP.

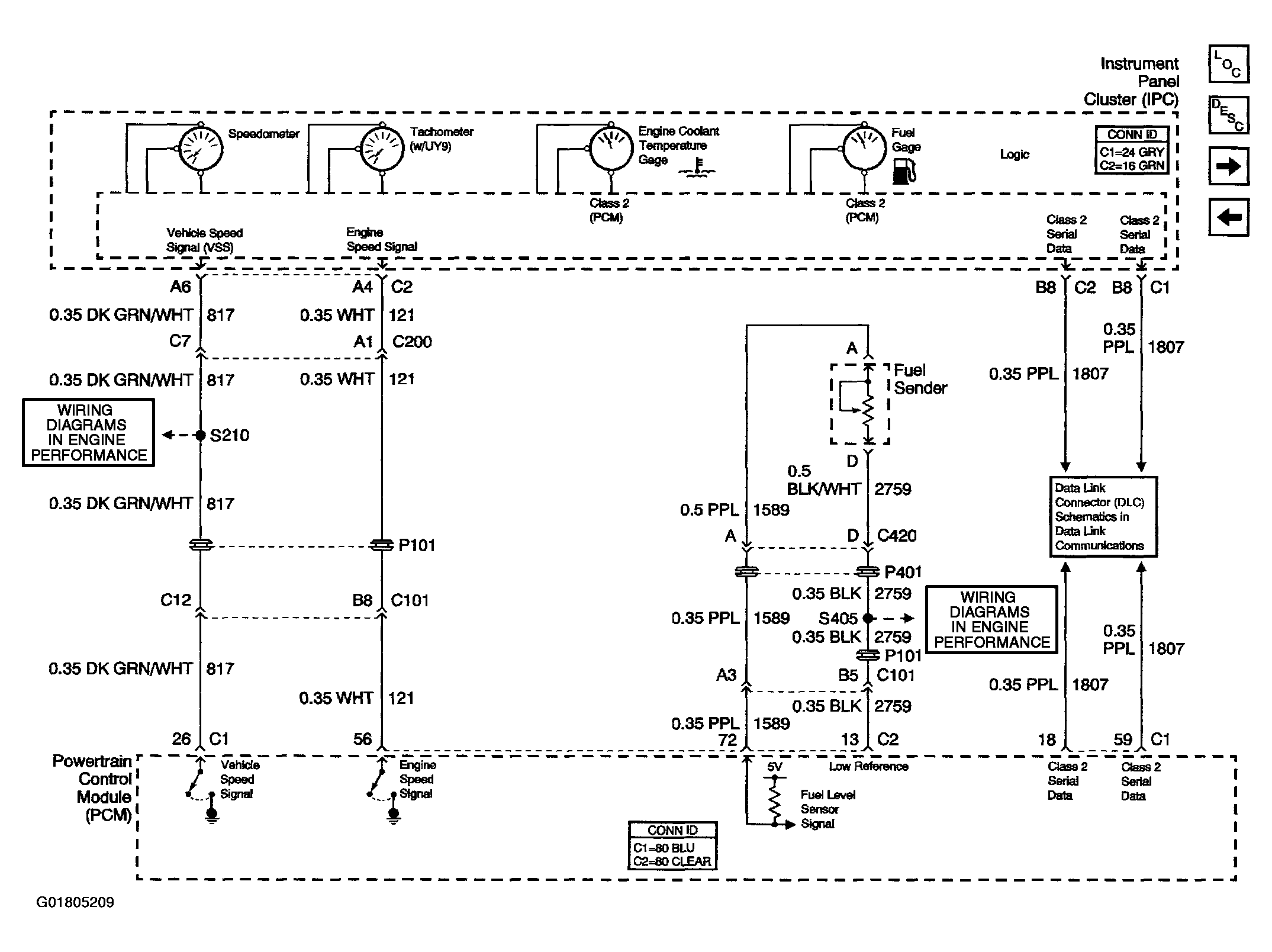

Fig 3: Instrument Cluster Schematics (Gauges)

Courtesy of GENERAL MOTORS CORP.

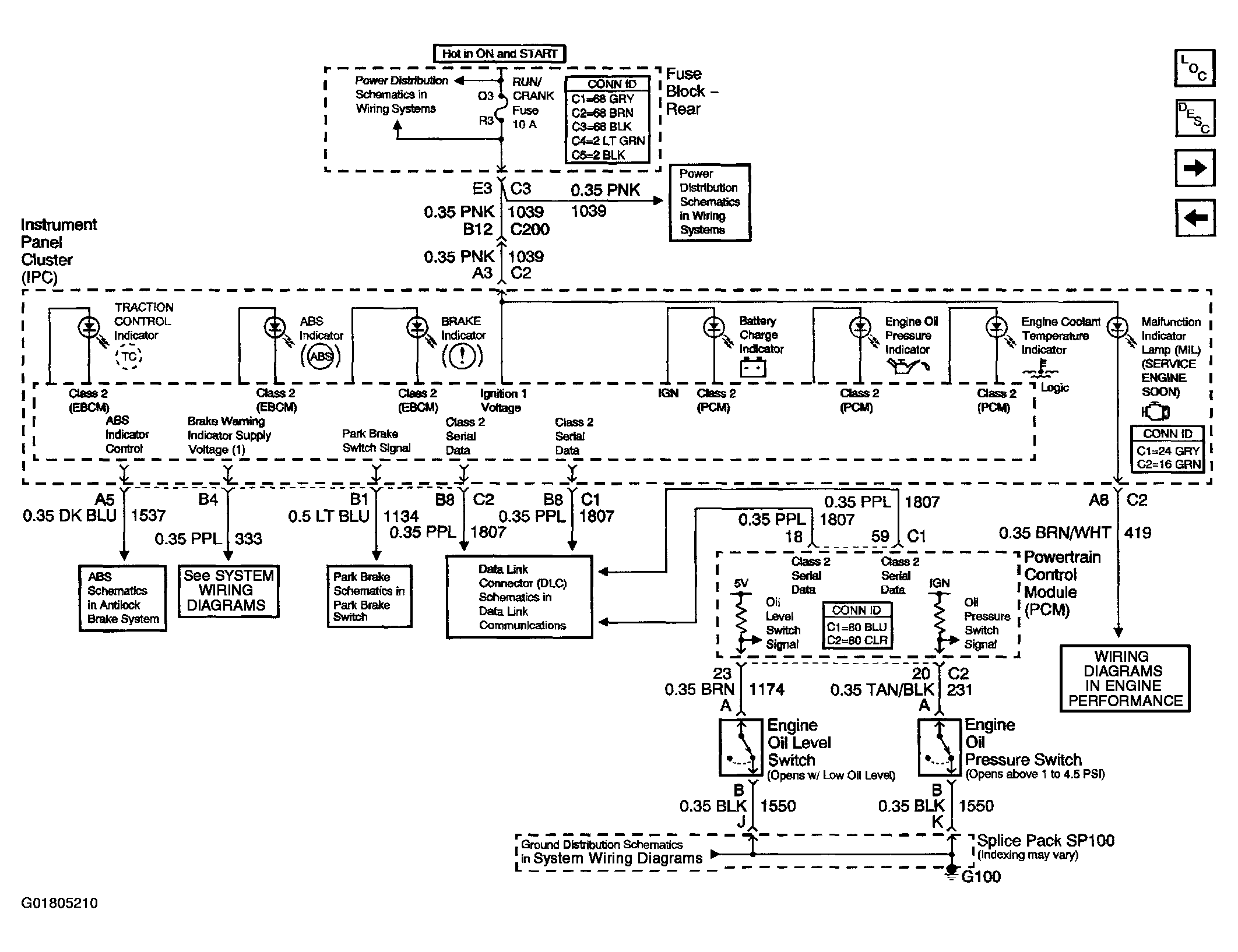

Fig 4: Instrument Cluster Schematics (Brakes & Engine Indicators)

Courtesy of GENERAL MOTORS CORP.

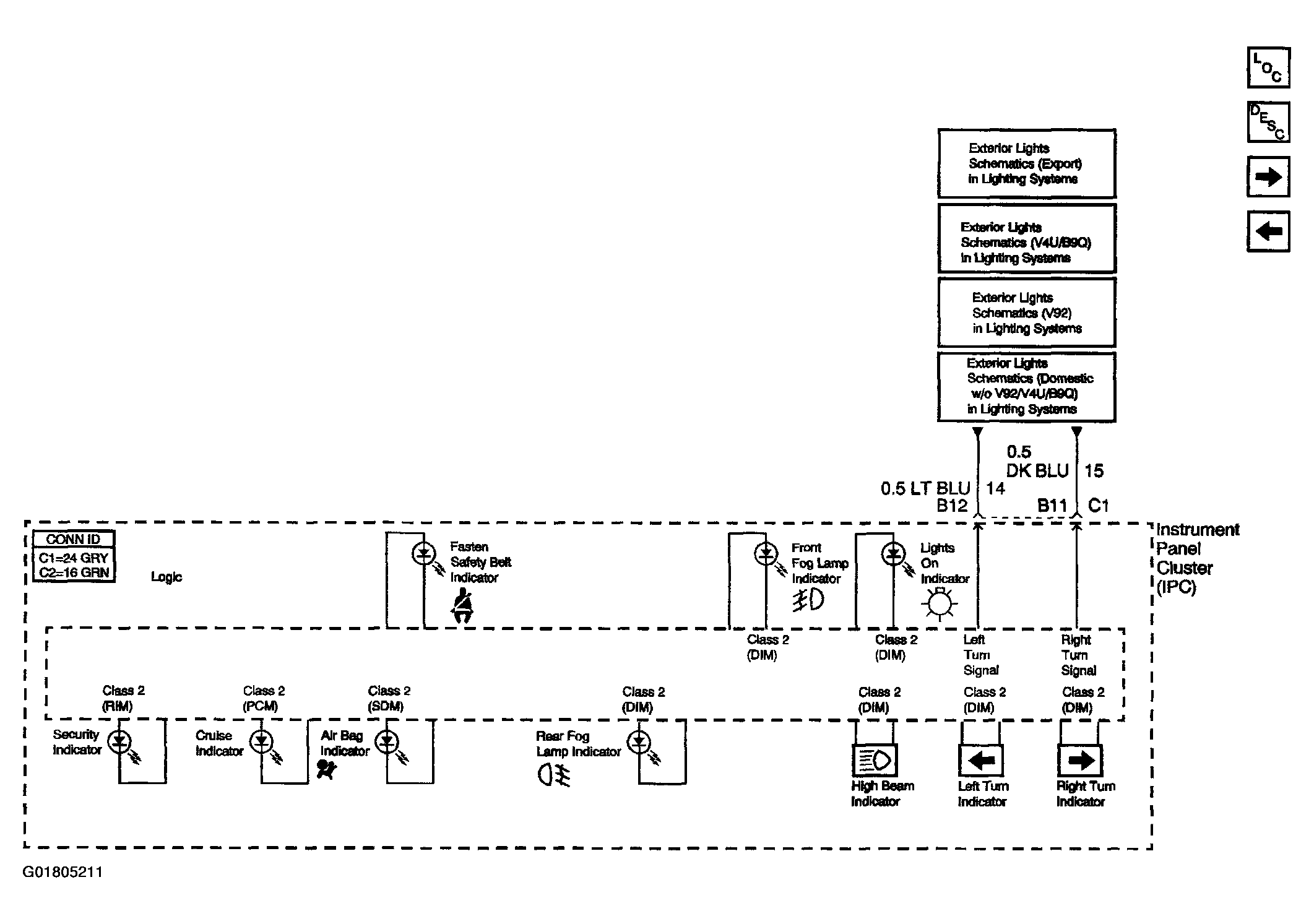

Fig 5: Instrument Cluster Schematics (Lighting, Restraints, Security, & Cruise Indicators)

Courtesy of GENERAL MOTORS CORP.

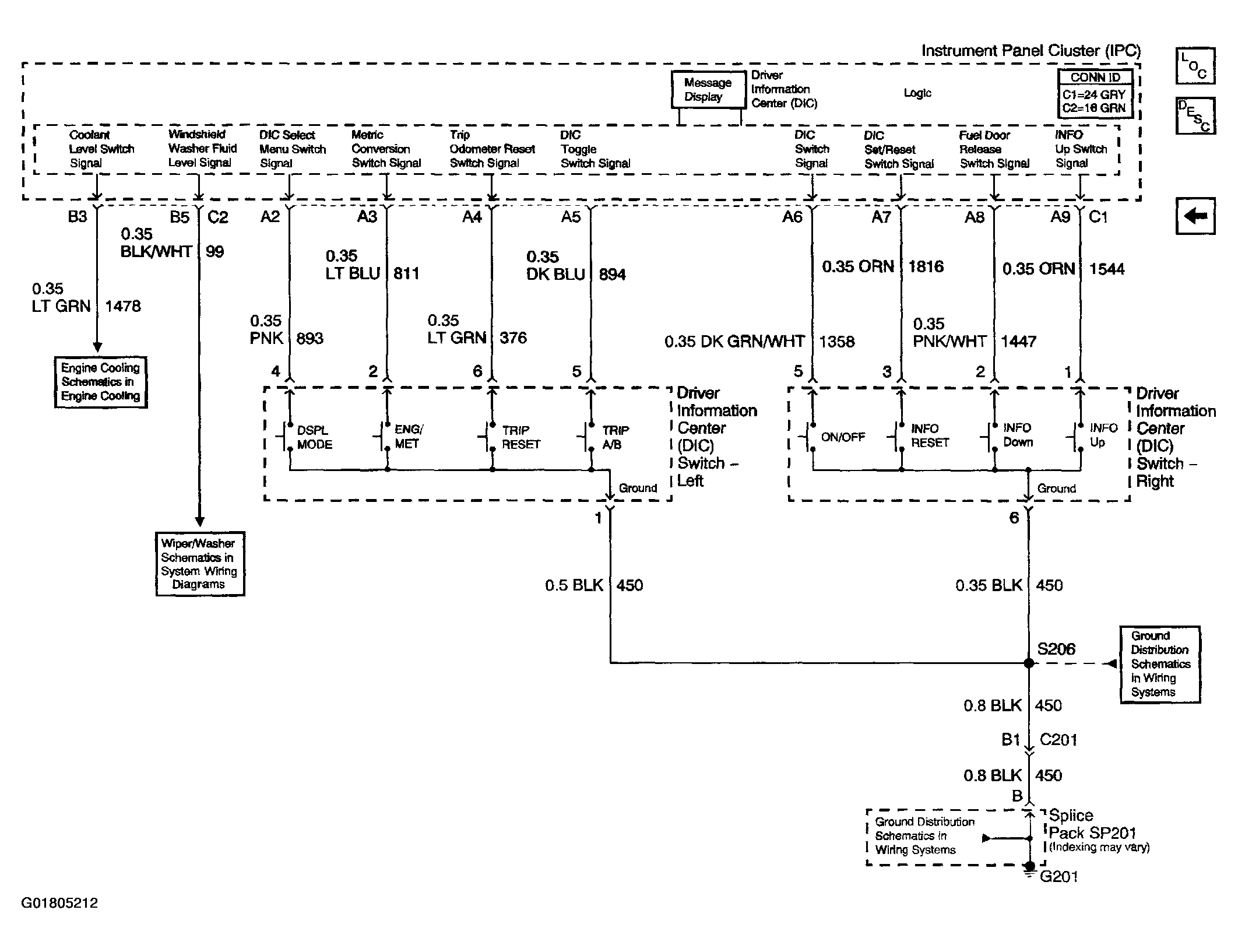

Fig 6: Instrument Cluster Schematics (Driver Information Center)

Courtesy of GENERAL MOTORS CORP.

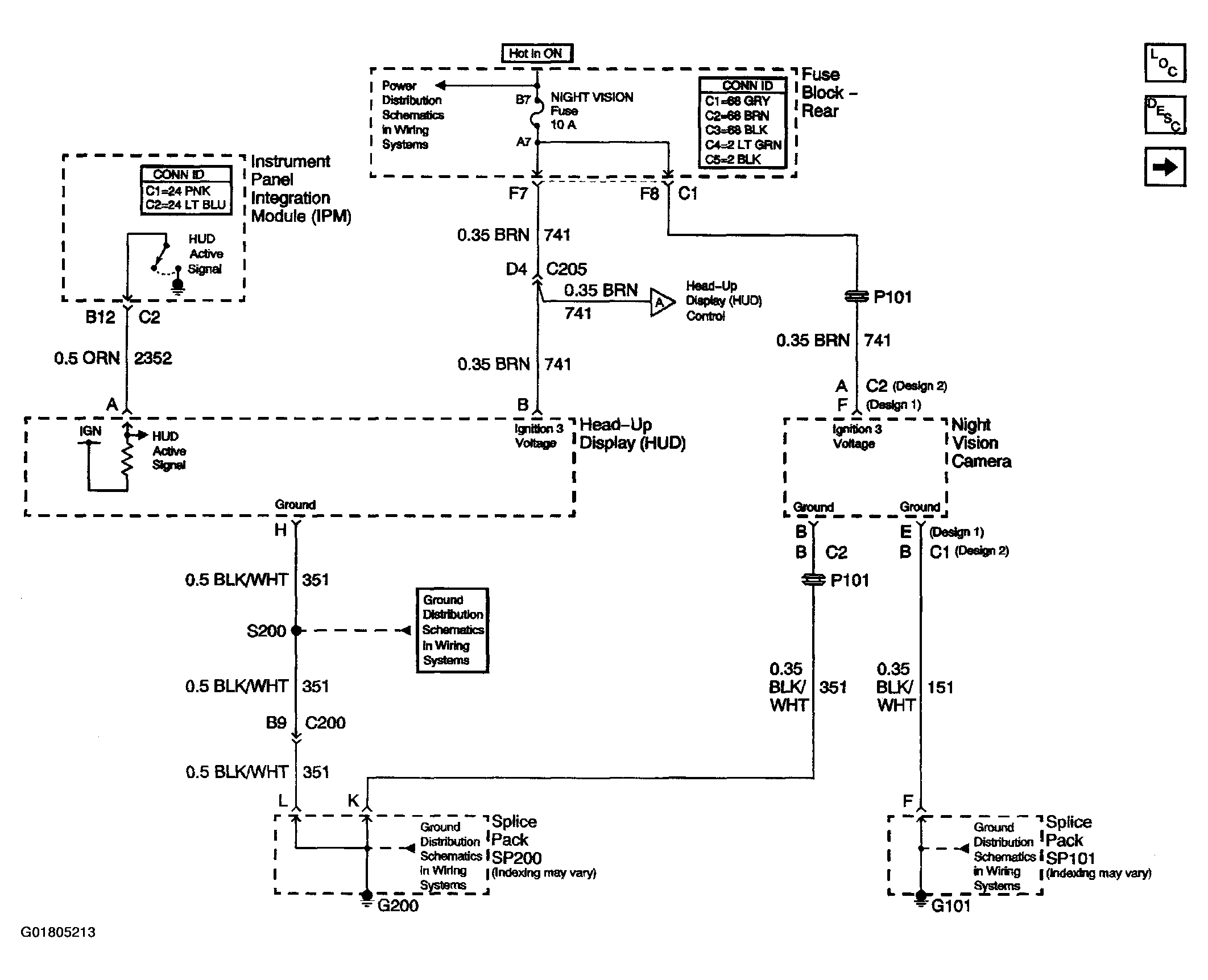

Fig 7: Night Vision Schematics (HUD & Night Vision Camera - Power & Ground)

Courtesy of GENERAL MOTORS CORP.

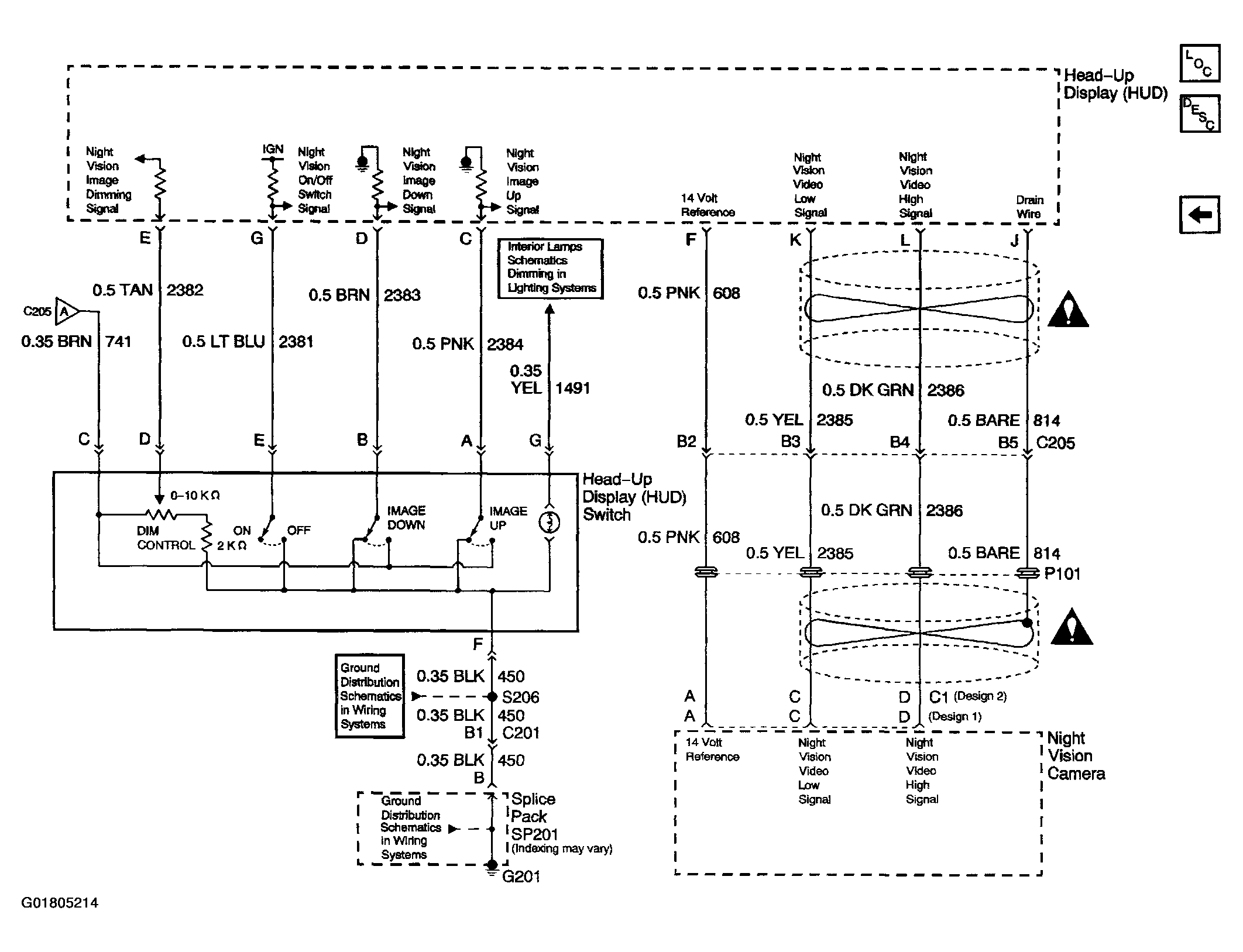

Fig 8: Night Vision Schematics (HUD Switch & Night Vision Camera Video Circuits)

Courtesy of GENERAL MOTORS CORP.

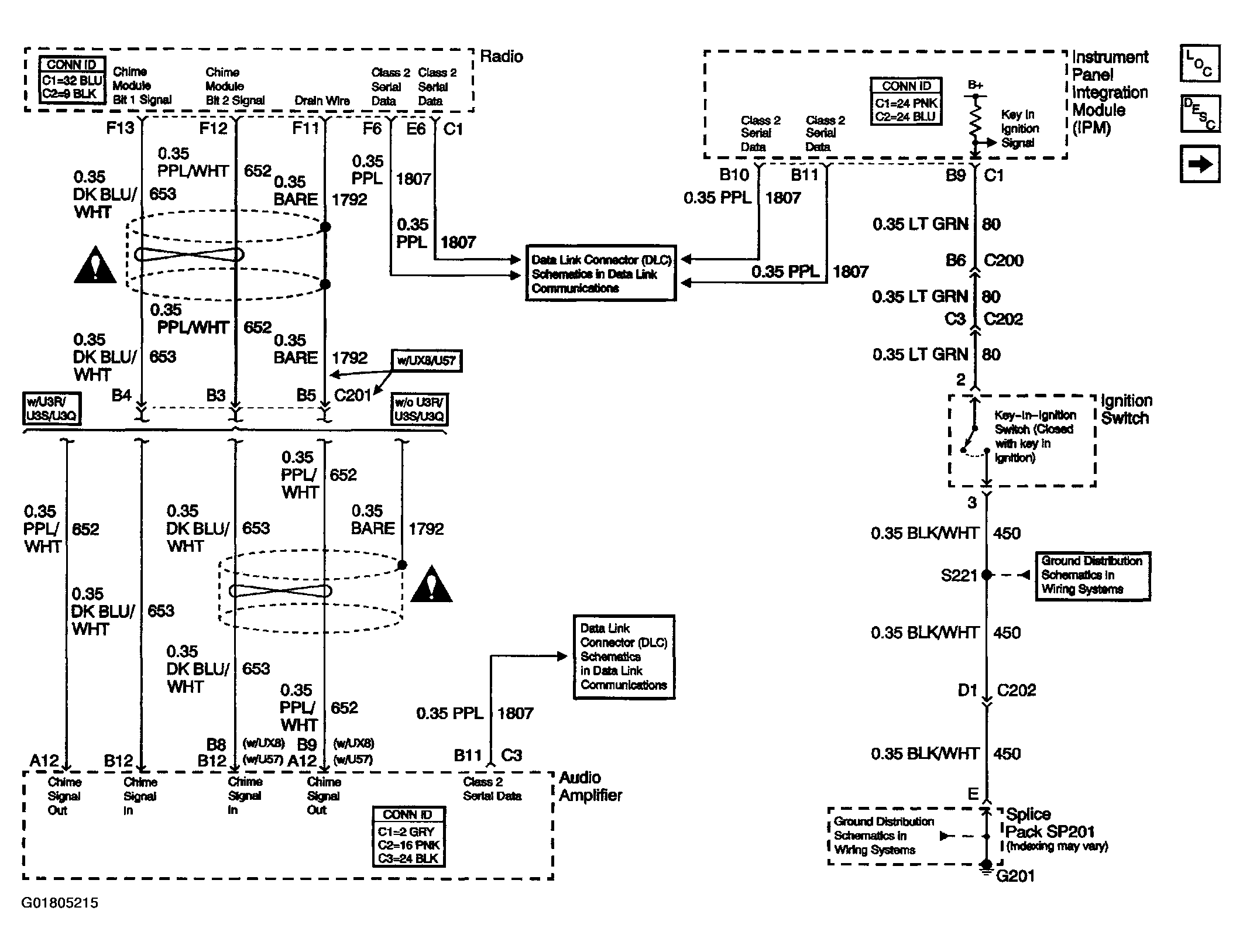

Fig 9: Audible Warnings Schematics (Radio Output, Left Front Door Open Signal & Key-In-Ignition Signal)

Courtesy of GENERAL MOTORS CORP.

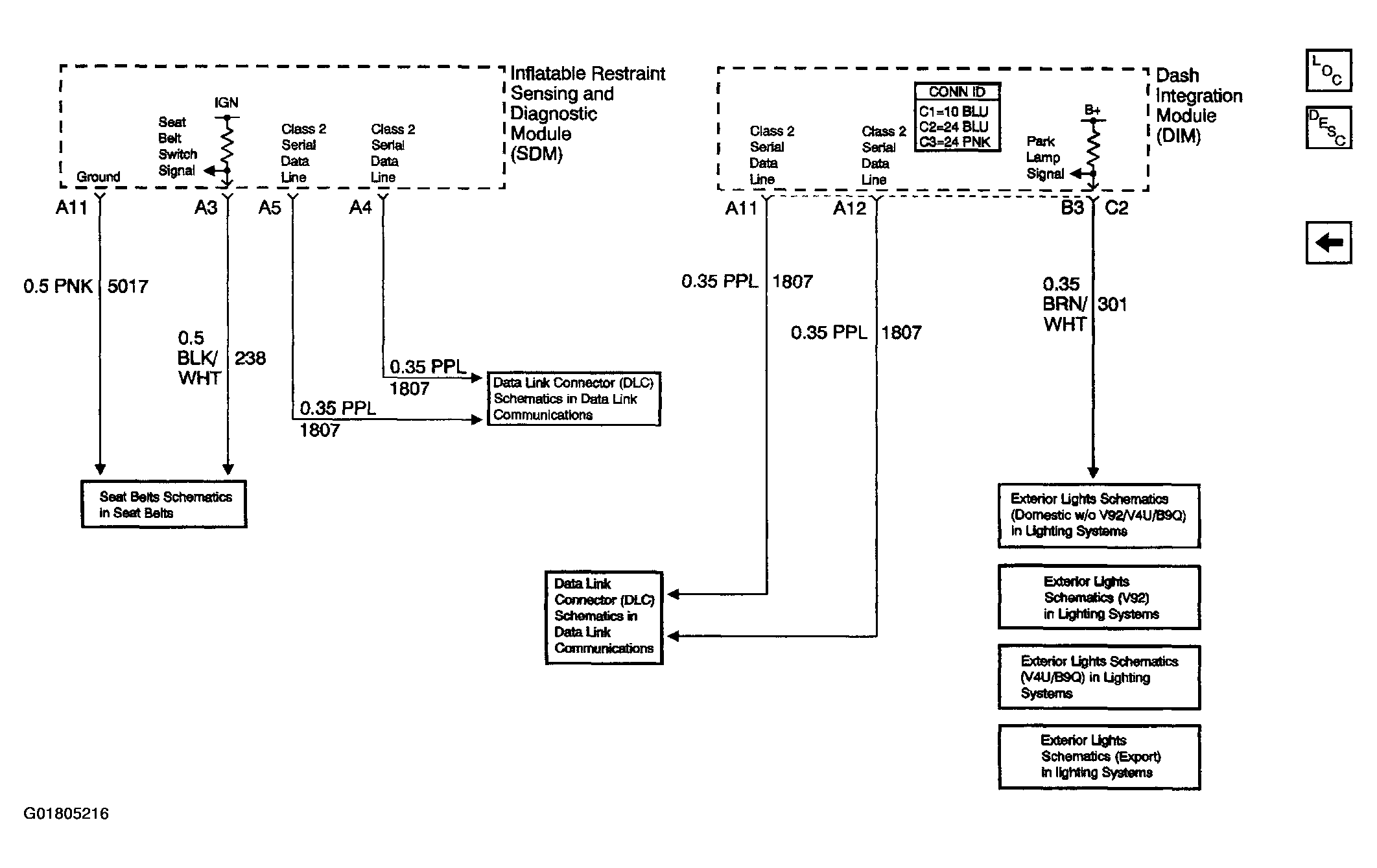

Fig 10: Audible Warnings Schematics (Seat Belt Switch Signal & Park Lamp Signal)

Courtesy of GENERAL MOTORS CORP.
