Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Remove the IP (Instrument Panel) upper trim pad. Refer to Trim Pad Replacement - IP Upper .
  2. Remove the IP cluster trim panel. Refer to Trim Panel Replacement - IP Cluster .
  3. Remove the IP storage compartment. Refer to Storage Compartment Replacement - IP .
  4. Remove the screws securing the right IP accessory trim panel (1) to the IP.
  5. Partially remove the trim panel (1) in order to disconnect the hazard switch electrical connector.
  6. Remove the right accessory trim panel (1).

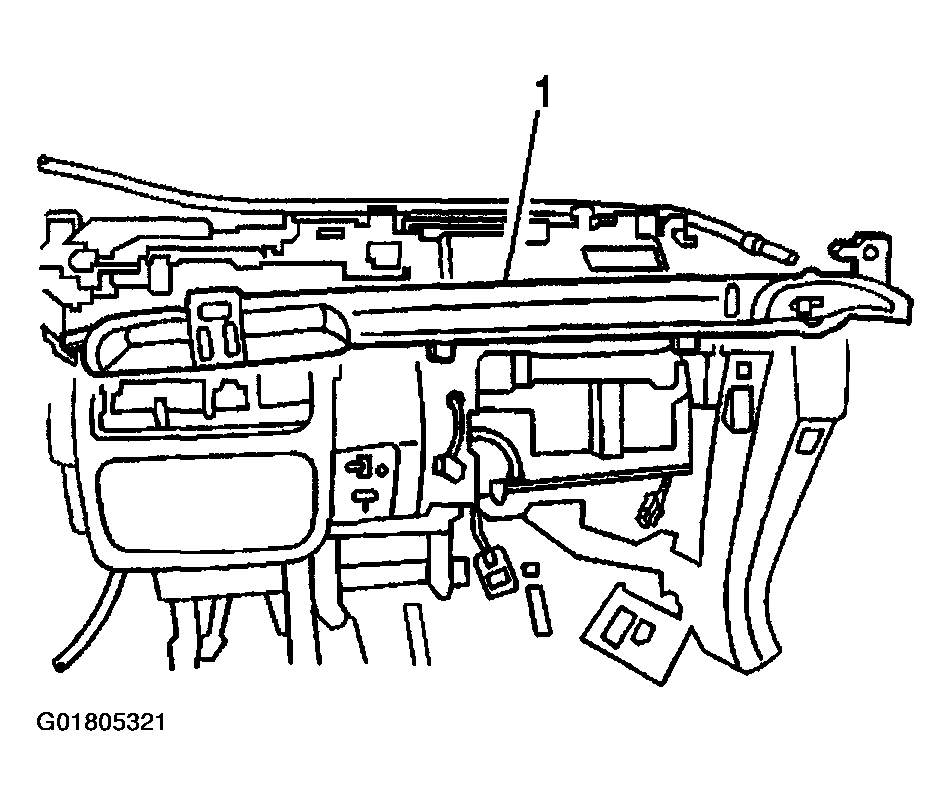

    Fig 1: Removing Right Accessory Trim Panel
    G01805321Courtesy of GENERAL MOTORS CORP.
