Removal Procedure

  1. Use a small hooked tool and reach behind the center trim panel (1) near the top of the panel, next to the HVAC control, and pull out on each side.
  2. Pull towards the rear of the vehicle in order to disengage the center trim panel retainers.
  3. Remove the center trim panel (1).

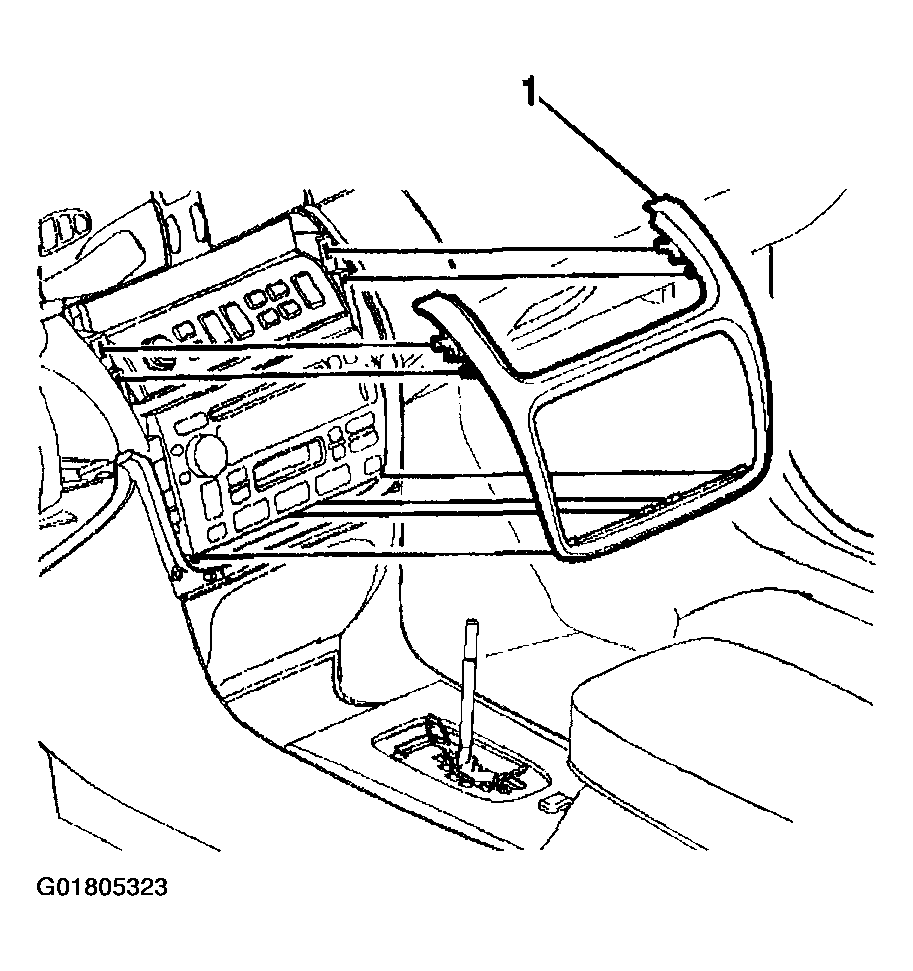

    Fig 1: Removing Center Trim Panel
    G01805323Courtesy of GENERAL MOTORS CORP.
