Removal Procedure

  1. Open the console compartment upper lid in order to access the console tray. The console tray insert should be visible.
  2. Remove the 4 fasteners (1) that retain the armrest inner trim panel (2).
  3. Remove the armrest inner trim panel (2).
  4. Remove the 2 fasteners holding the console armrest latch to the console armrest.
  5. Remove the console armrest latch from the console armrest.

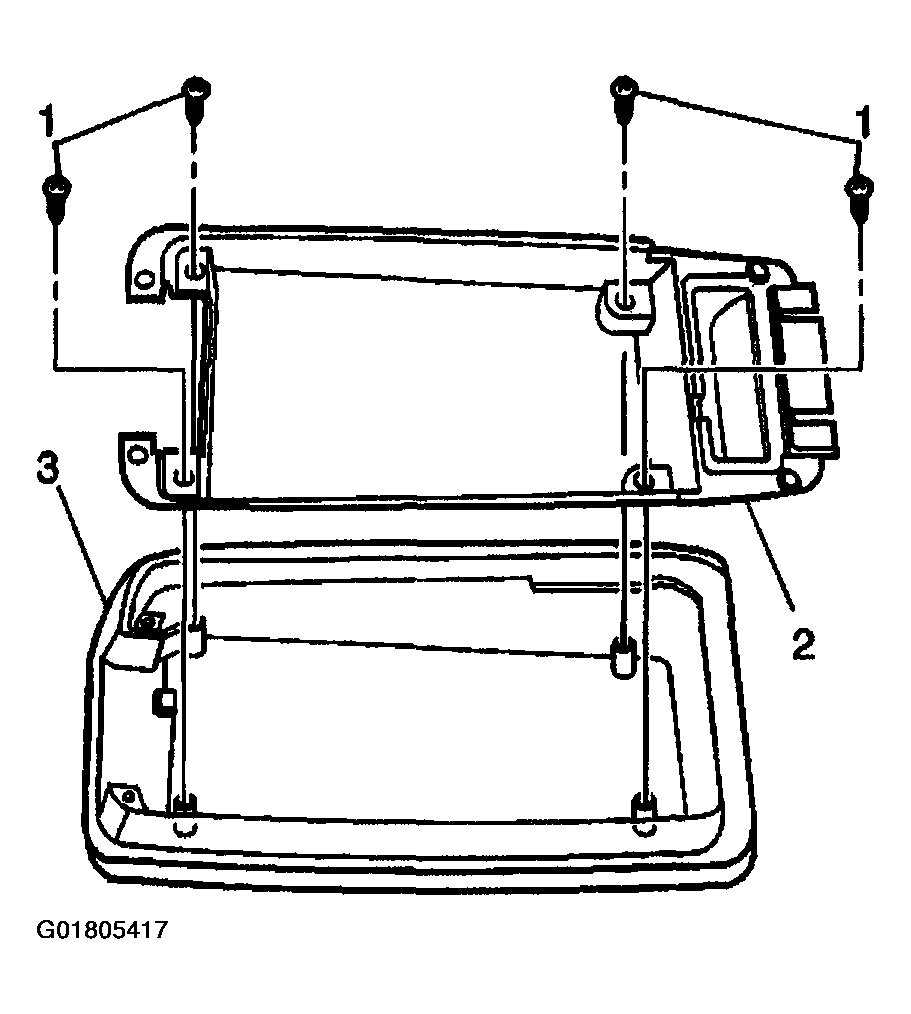

    Fig 1: Removing Armrest Inner Trim Panel & Fasteners
    G01805417Courtesy of GENERAL MOTORS CORP.
