Removal Procedure

  1. Open the console compartment lid in order to access the console storage compartment.
  2. Remove the 4 fasteners (1), from the bottom of the console tray (2), that retain the console tray insert to the console tray.

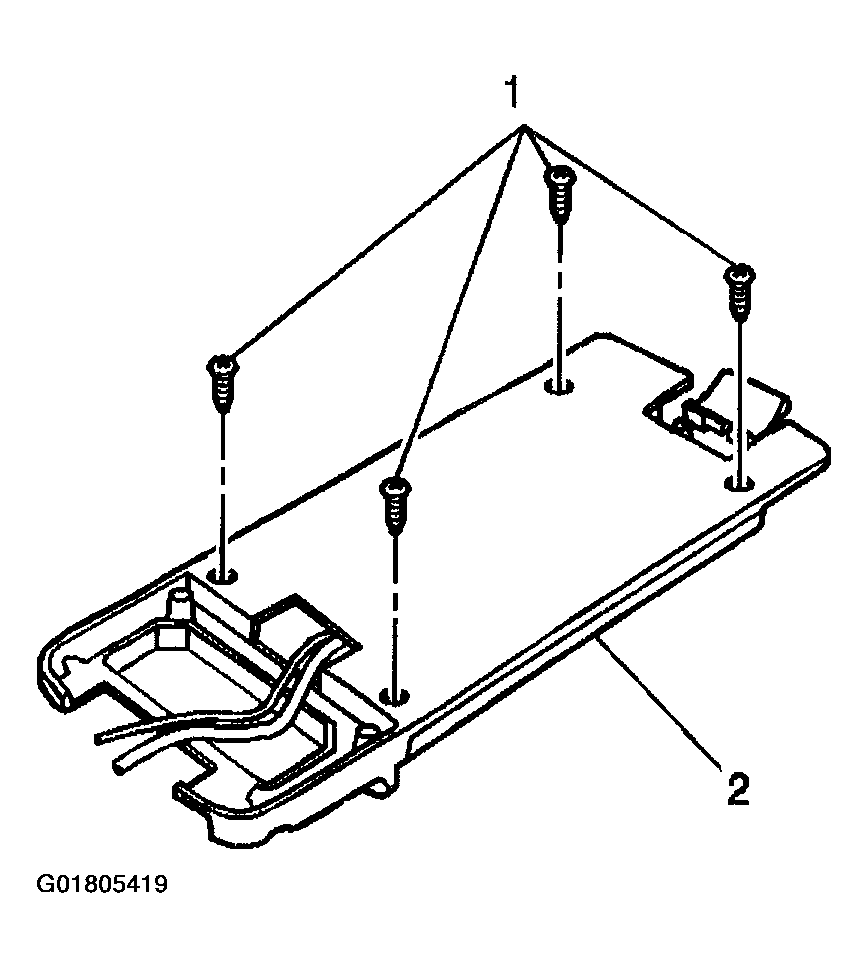

    Fig 1: Removing Console Tray & Fasteners
    G01805419Courtesy of GENERAL MOTORS CORP.
  3. Remove the console tray insert (1) from the console tray (2) in order to expose the console lid latch fasteners.
  4. Remove the 2 fasteners holding the console lid latch to the console tray.
  5. Remove the console latch from the console tray.

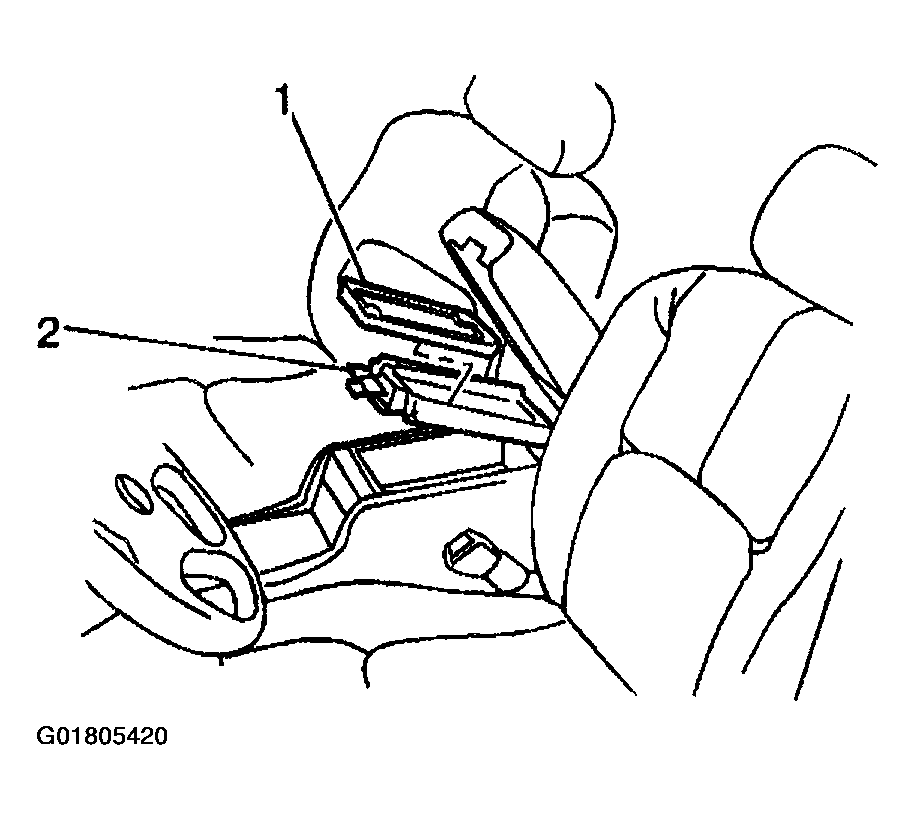

    Fig 2: Removing Console Tray & Insert
    G01805420Courtesy of GENERAL MOTORS CORP.
