Removal Procedure

Important:  The knee bolster trim panel must be replaced, not repaired, if there is any visible damage.

1. Remove the knee bolster trim panel by grasping at the top and the bottom and by pulling rearward.
2. Disconnect the night vision switch electrical connector (2).
3. Remove the knee bolster trim from the vehicle.

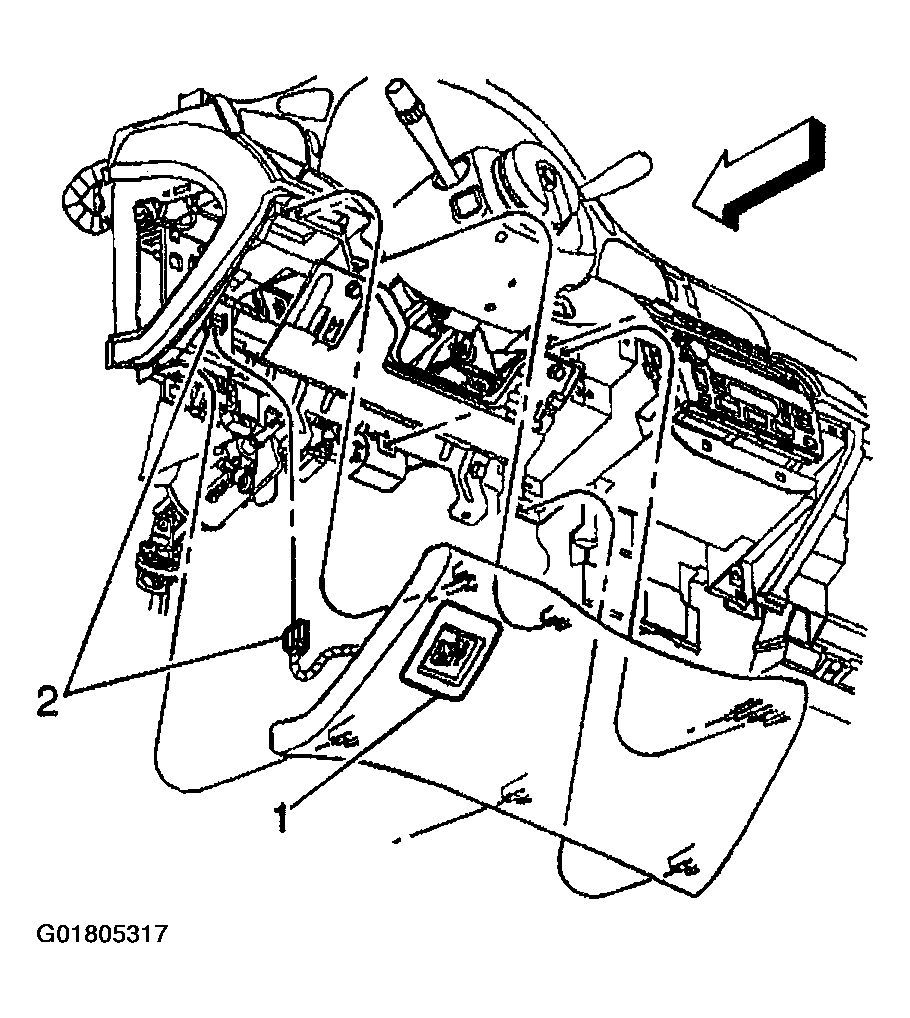

   Fig 1: Disconnecting Night Vision Switch Electrical Connector

   Courtesy of GENERAL MOTORS CORP.
