Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Remove the IP upper trim pad. Refer to Trim Pad Replacement - IP Upper .
  2. Remove the instrument cluster trim panel. Refer to Trim Panel Replacement - IP Cluster .
  3. Remove the 4 fasteners (1) retaining the IP cluster to the IP.
  4. Disconnect the electrical connectors (2) on each side of the IP cluster.
  5. Remove the IP cluster (3) from the IP.

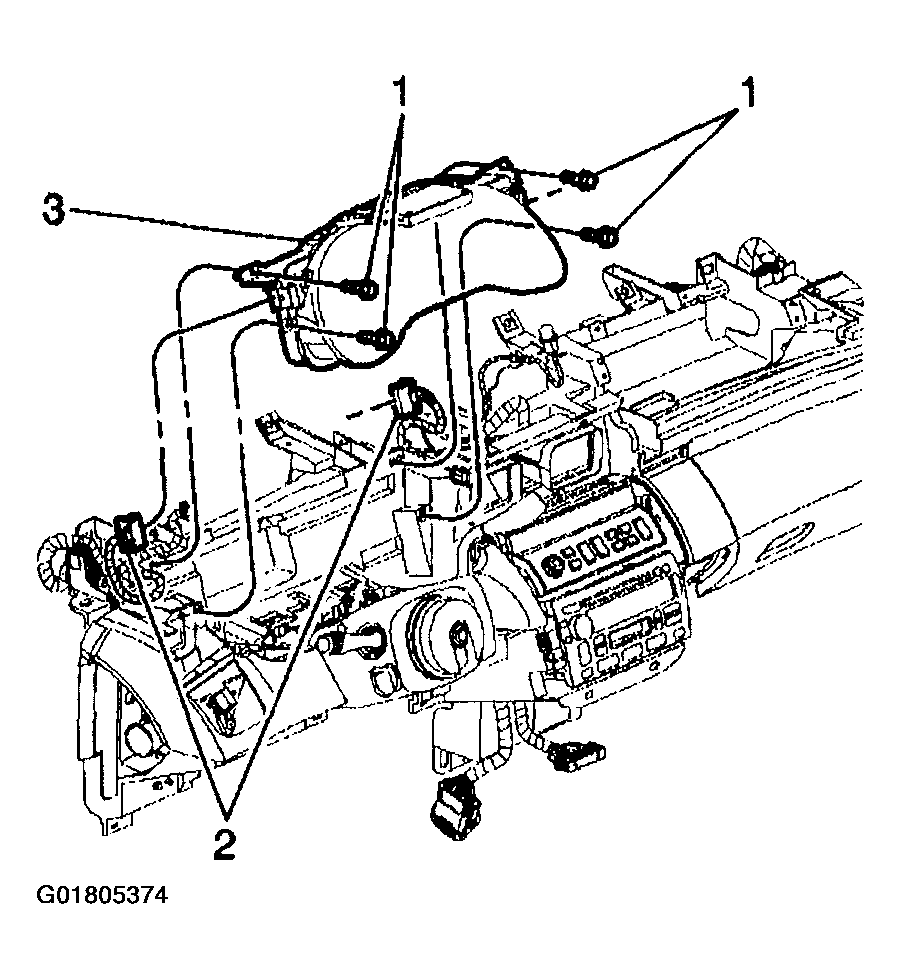

    Fig 1: Removing IP Cluster, Electrical Connectors & Fasteners
    G01805374Courtesy of GENERAL MOTORS CORP.
