Removal Procedure

  1. Insert flat bladed tool between the IP outer trim cover (1) and the IP and pull out on the IP outer trim cover (1) while releasing the retainer (2) with the flat bladed tool.
  2. Slide the IP outer trim cover (1) out of the tabs on the front edge of the IP and remove the outer trim cover (1).

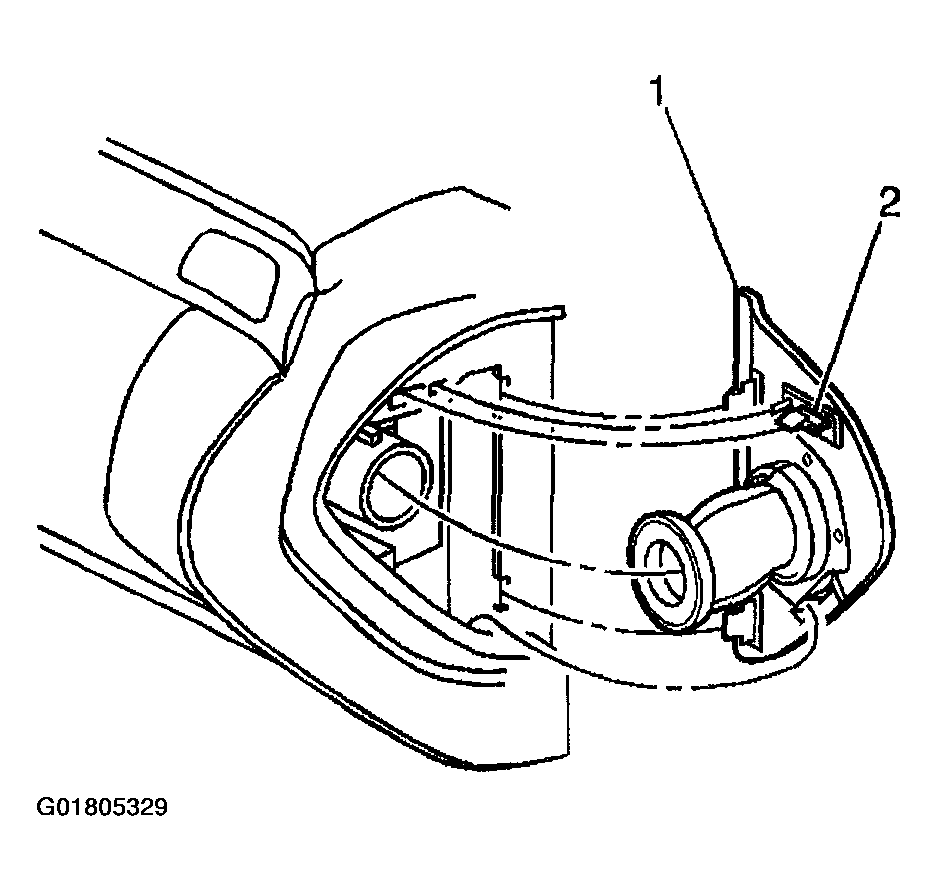

    Fig 1: Sliding & Removing IP Outer Trim Cover
    G01805329Courtesy of GENERAL MOTORS CORP.
