Removal Procedure

  1. Insert flat bladed tool between the IP outer trim cover (1) and the IP and pull out on the IP outer trim cover (1) while leashing the retainer (2) with the flat bladed tool.
  2. Slide the left IP outer trim cover (1) out of the tabs at the front edge of the IP and remove the outer trim cover (1).

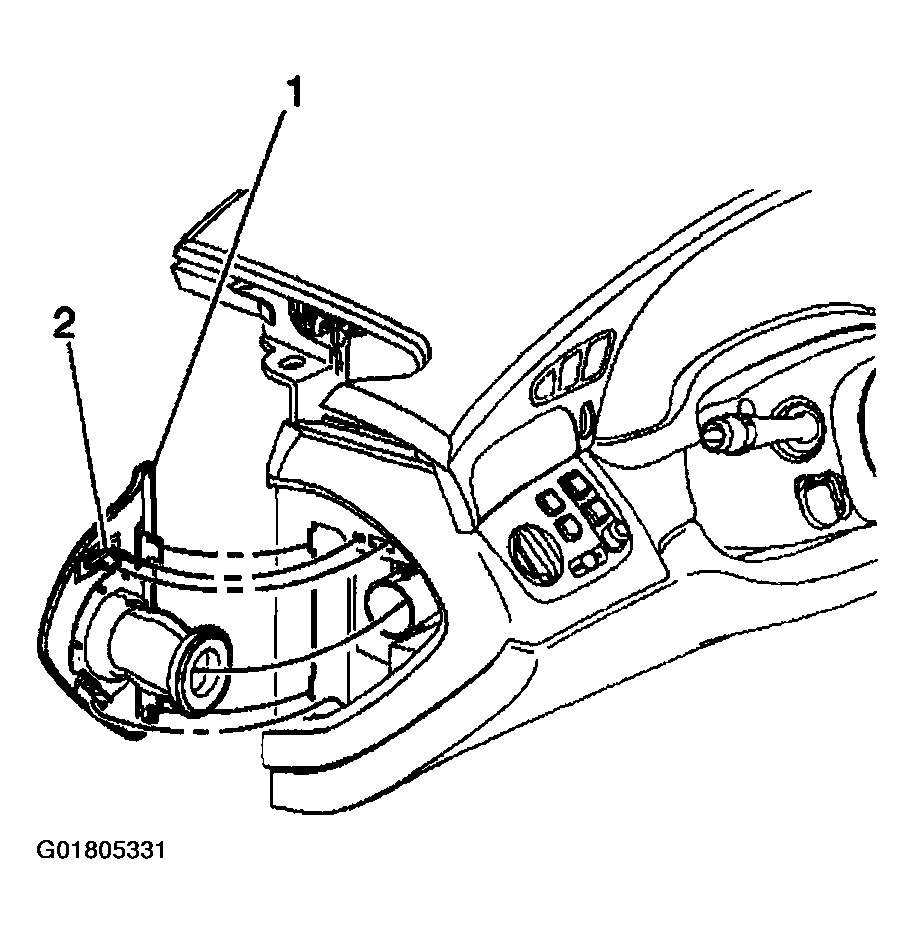

    Fig 1: Pulling Out IP Outer Trim Cover & Leashing Retainer
    G01805331Courtesy of GENERAL MOTORS CORP.
