Removal Procedure

Important:  The air outlet vents are not interchangeable, note vent location during removal.

1. Grasp the center of the air outlet vent.
2. Using a small flat bladed tool, release the retainers (1), FROM THE INSIDE OF THE AIR OUTLET VENT, while pulling the vent away from the IP.

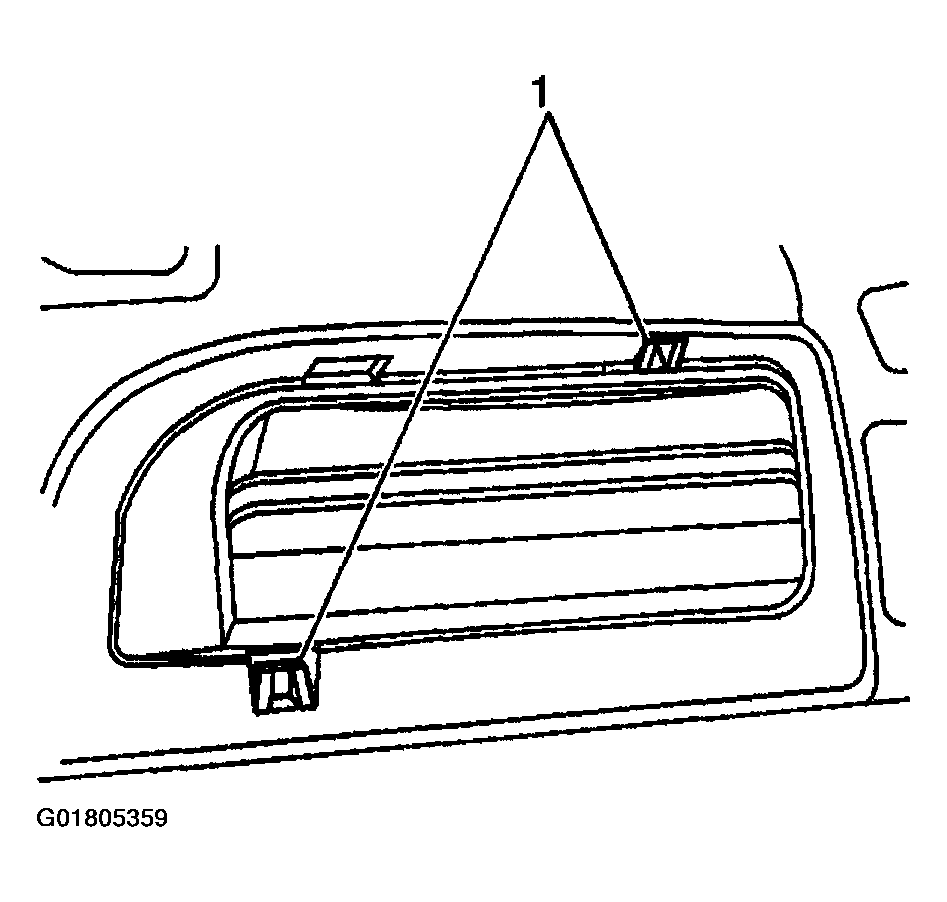

   Fig 1: Releasing Retainers

   Courtesy of GENERAL MOTORS CORP.
3. Remove the air outlet vents (1,2, 3 or 4).

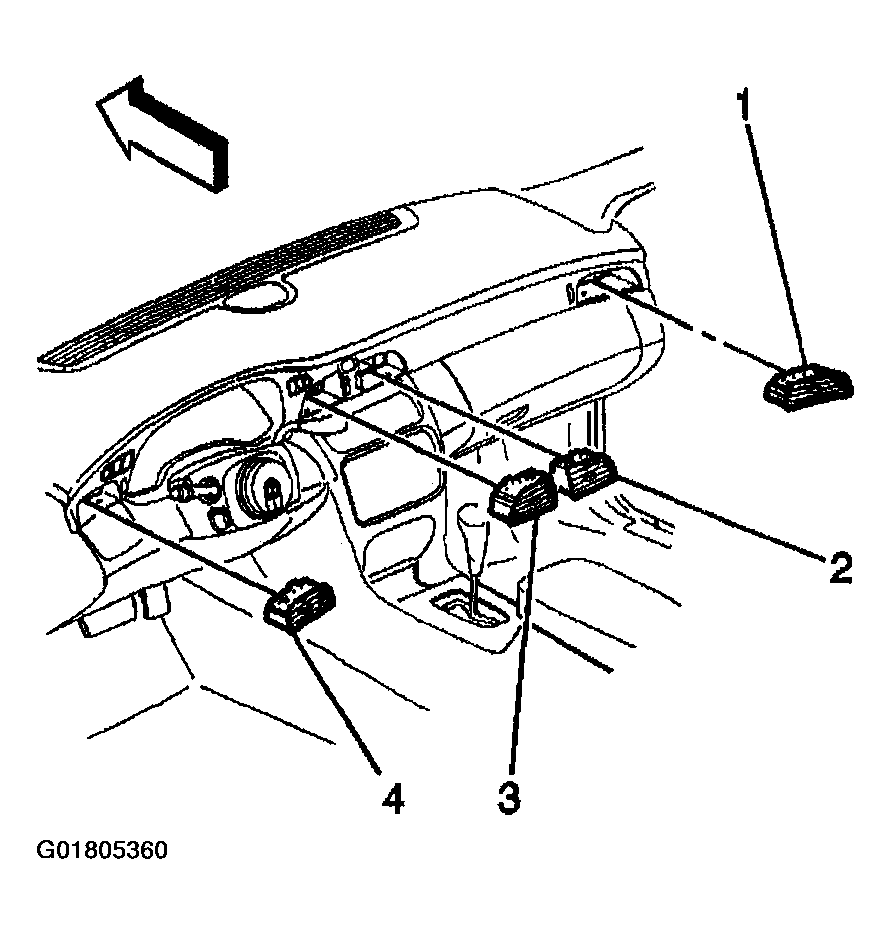

   Fig 2: Removing Air Outlet Vents

   Courtesy of GENERAL MOTORS CORP.
