Removal Procedure

CAUTION: Refer to SIR CAUTION .

Using a flat bladed tool, pry upward on the rear edge of the defroster grille (1) in order to release defroster grille (1) retaining clips from the IP upper trim pad.
Disconnect the sunload sensor electrical connector (2).

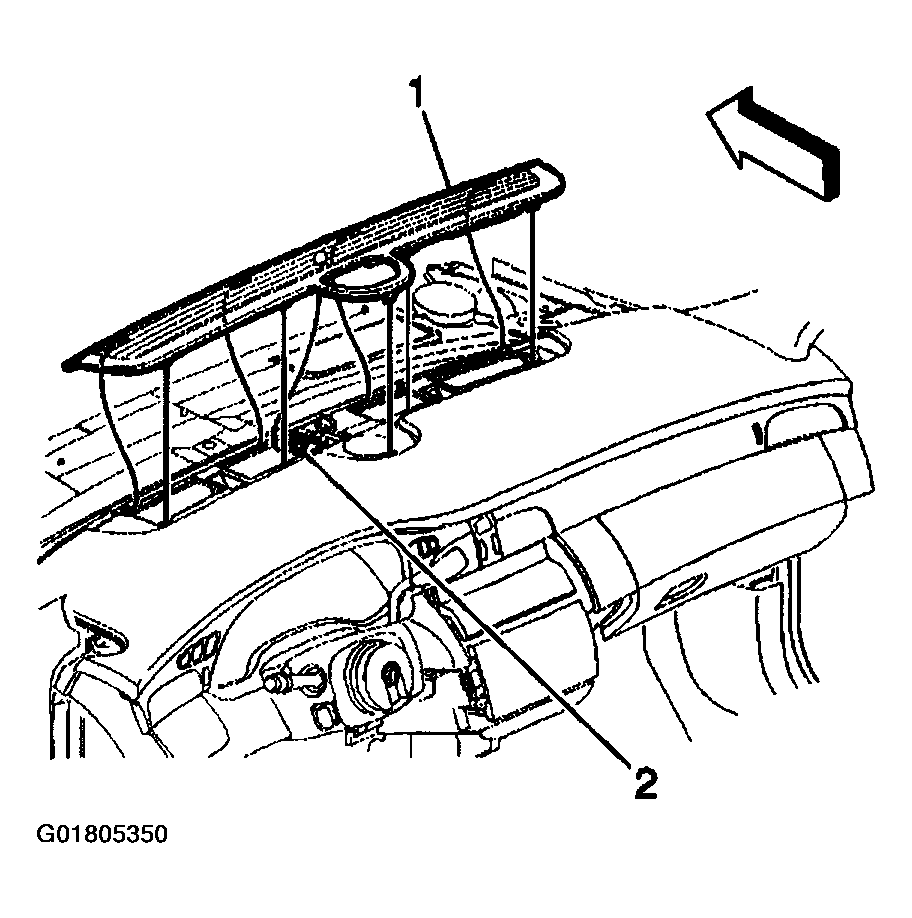

Fig 1: Disconnecting Sunload Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Pull up on the rear edge, and then rearward, in order to remove the defroster grille (1).
Remove the defroster grille (1) from the instrument panel.

Fig 2: Removing Defroster Grille
Courtesy of GENERAL MOTORS CORP.
