Removal Procedure

  1. Grasp the rear edge of the console side panel.
  2. Pull out on the side panel in order to disengage the retainers.
  3. Remove the console side panel.

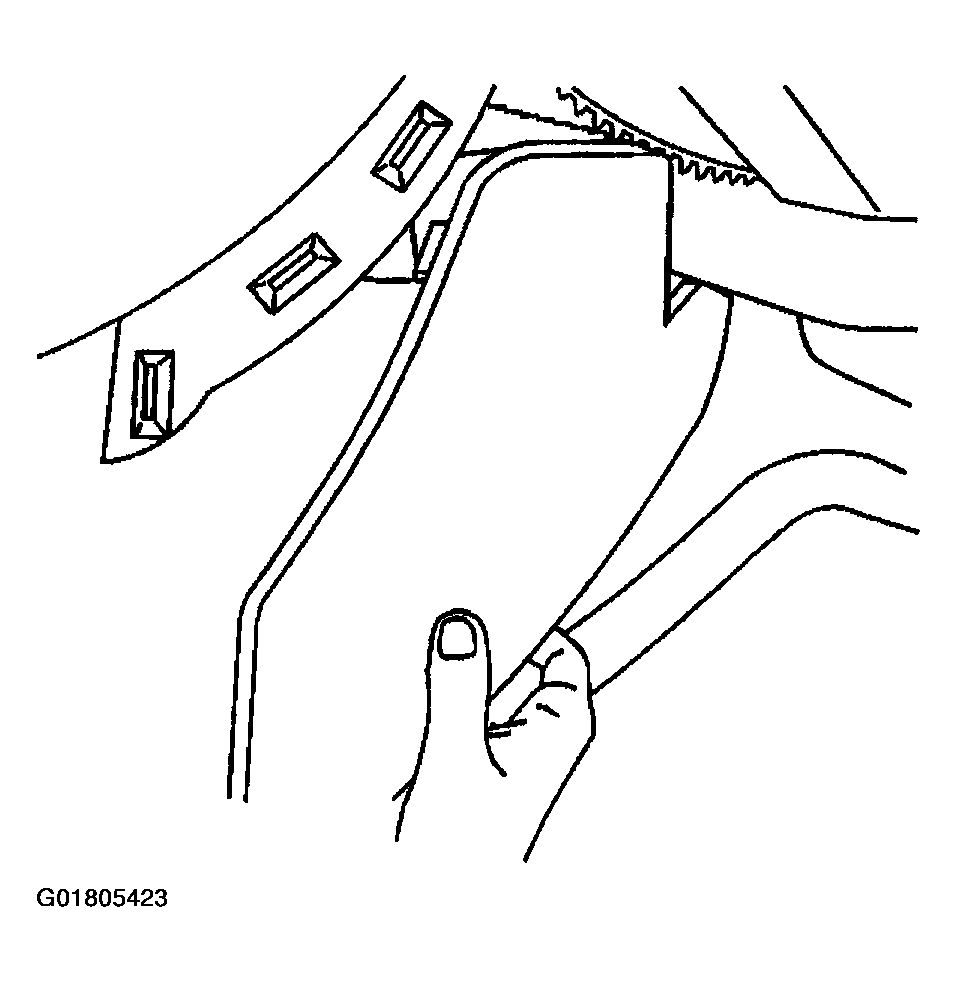

    Fig 1: Removing Console Side Panel
    G01805423Courtesy of GENERAL MOTORS CORP.
