Removal Procedure

  1. Grasp the rear edge of the console side panel (2).
  2. Pull out on the rear of the console side panel (2) in order to disengage the rear retainers.
  3. Push forward on the console side panel (2) in order to disengage the console side panel front attachment (1) from the HVAC cover.
  4. Remove the left console side panel.

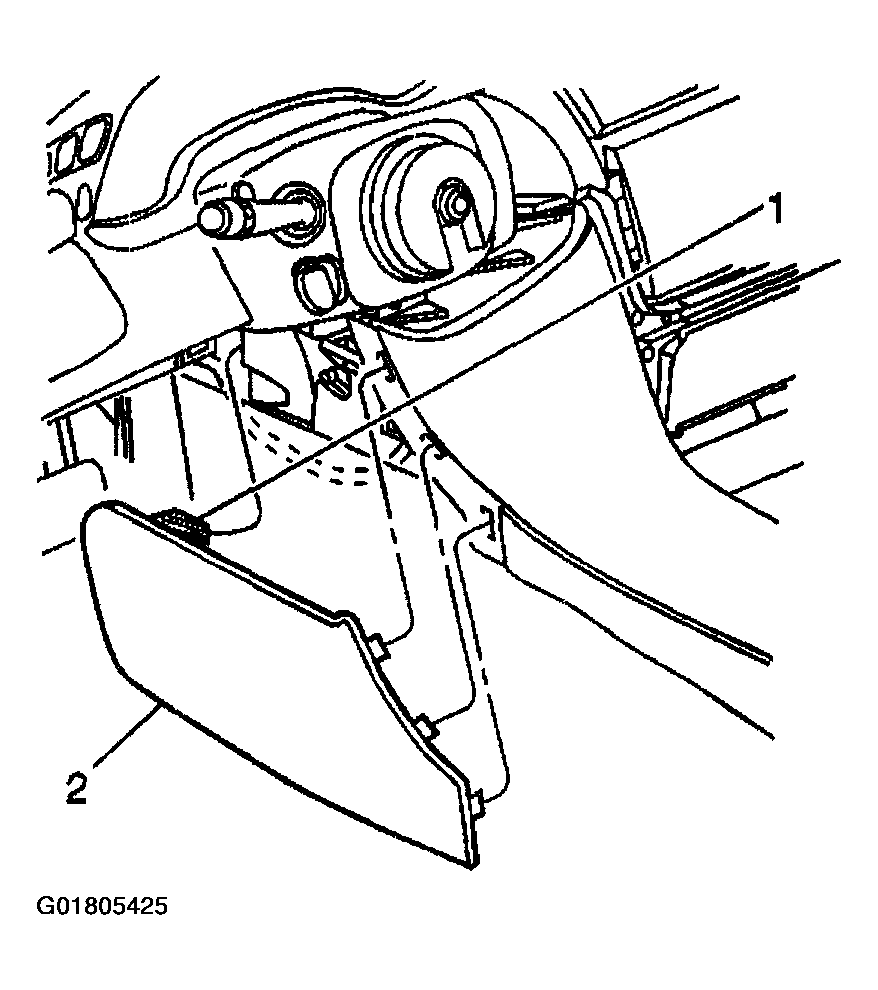

    Fig 1: Disengage Console Side Panel Front Attachment
    G01805425Courtesy of GENERAL MOTORS CORP.
