Removal Procedure

  1. If equipped with UV8, refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DTS) or CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DEVILLE AND DHS) .
  2. Open the center console lid.
  3. Remove the center console tray screws (1).
  4. Remove the center console tray (2).

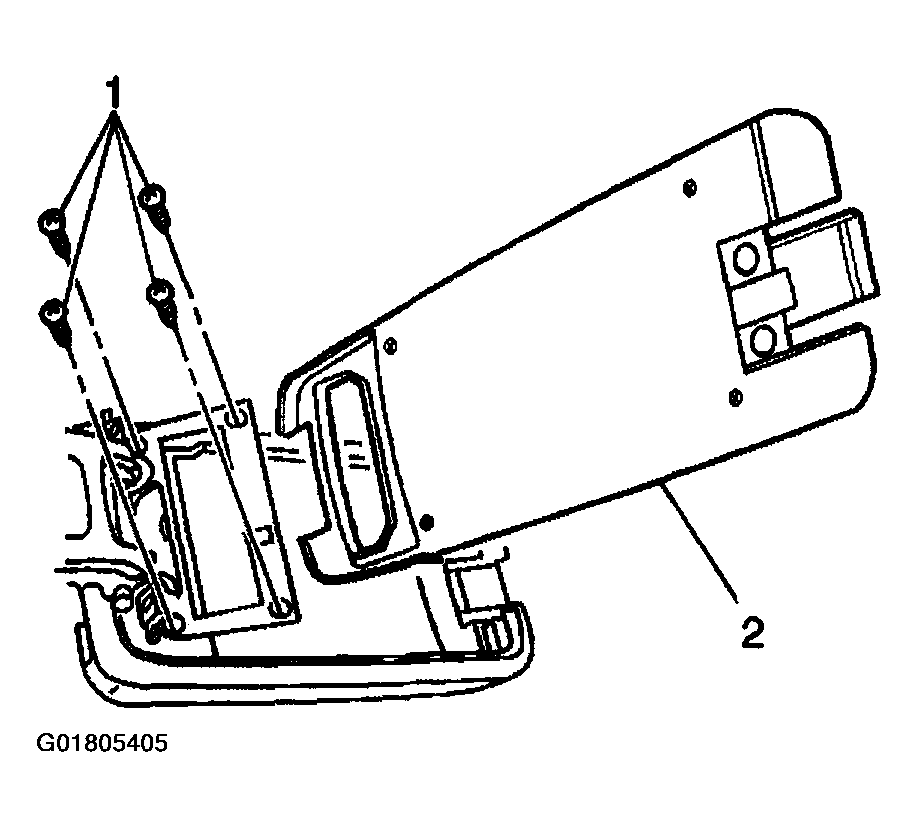

    Fig 1: Removing Center Console Tray & Screws
    G01805405Courtesy of GENERAL MOTORS CORP.
